Key Specifications
Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
1.85mm
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
2.4mm
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
50
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.20
Description

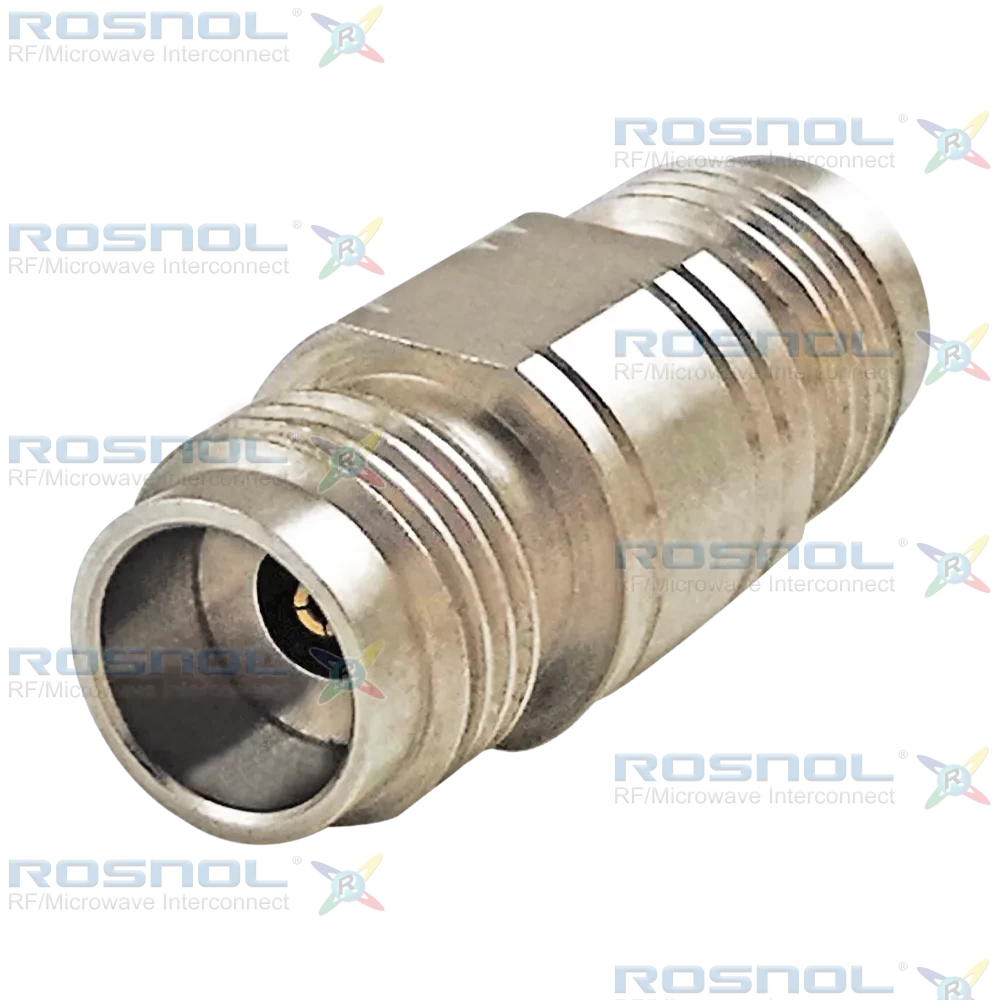

1.85mm Jack (Female) to 2.4mm Jack (Female) Adapter | Straight Design | Screw-Lock | Stainless Steel Body
The ROSNOL AD-V2Q25A/9X-9X is a precision 50-ohm straight adapter designed for DC to 50 GHz operation, delivering VSWR ≤ 1.20 (≥ 20.8 dB return loss) and insertion loss ≤ 0.05 × √F (GHz) dB. It employs screw-lock coupling on both the 1.85 mm and 2.4 mm sides, with center-contact captivation ≥ 20 N and mechanical durability of ≥ 500 mating cycles. Recommended coupling torque is 0.80–1.10 Nm with a coupling test torque of 1.65 Nm on each side.Piece-part construction includes beryllium copper center contacts finished with 3 microinch gold plating over an 80 microinch non-magnetic nickel-phosphorus underplating for optimal conductivity and longevity. The bodies are stainless steel with passivated surfaces for corrosion resistance, and the insulators are PS for stable dielectric performance. The design supports reliable service across −60°C to +100°C.
ROSNOL’s precision-engineered RF adapters deliver consistent broadband performance at competitive pricing, making them an effective alternative to leading European and American brands. All ROSNOL RF components are produced in ISO 9001 certified facilities and fully comply with RoHS and REACH regulations. Customization services for materials, plating, and mechanical design are available to accommodate specialized interconnect requirements.
