Key Specifications
Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
1.85mm
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
2.4mm
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
50
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.20
Description

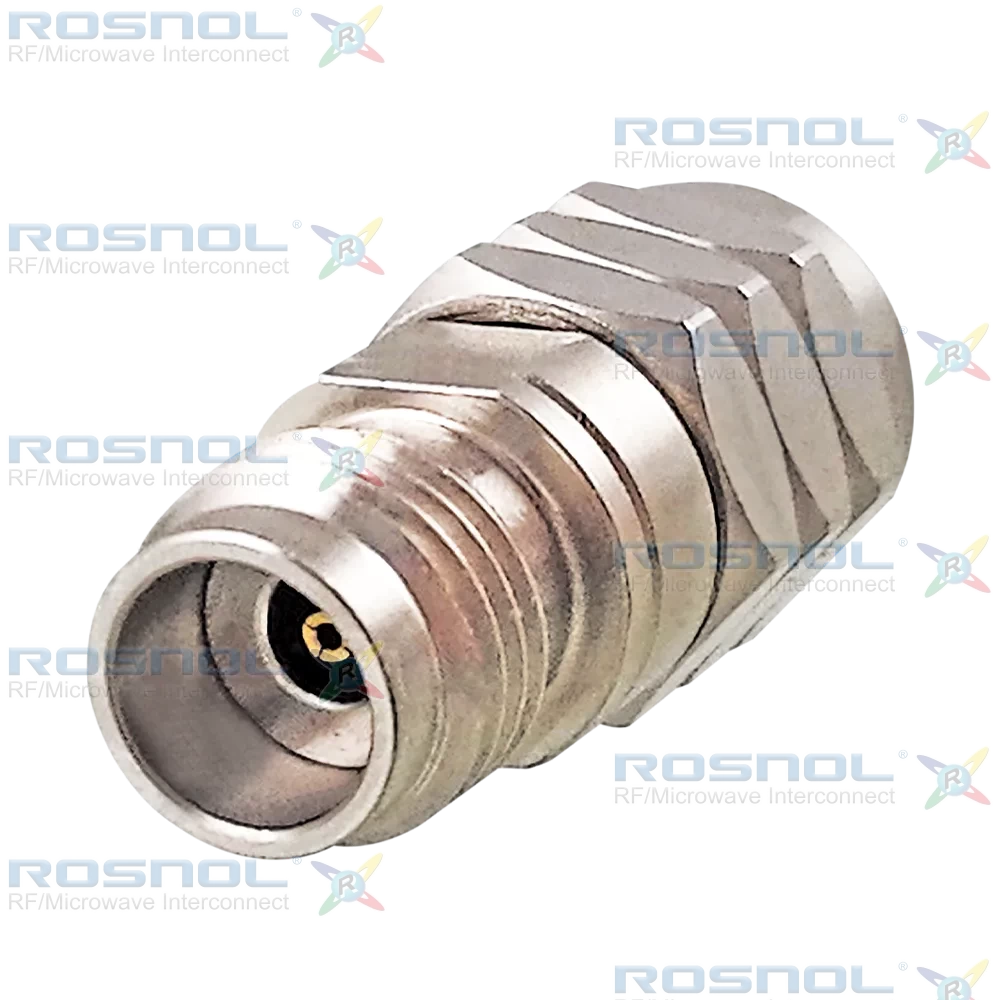

1.85mm Plug (Male) to 2.4mm Jack (Female) Adapter | Straight Design | Screw-Lock | Stainless Steel Body
The ROSNOL AD-V1Q25A/9XX-9X is a high-performance 50-ohm straight adapter optimized for DC to 50 GHz, achieving VSWR ≤ 1.20 (≥ 20.8 dB return loss) with insertion loss ≤ 0.05 × √F (GHz) dB. It offers robust electrical characteristics including insulation resistance ≥ 5 GΩ, and secure mechanical engagement via screw-lock coupling on both sides. Center-contact captivation is ≥ 20 N and mechanical endurance is rated at ≥ 500 mating cycles, with recommended torque of 0.80–1.10 Nm and side test torque of 1.65 Nm.Materials and plating are engineered for reliability: beryllium copper center contacts with 3 microinch gold plating over an 80 microinch non-magnetic nickel-phosphorus underplating deliver excellent conductivity and wear resistance. Stainless steel bodies and coupling nuts are passivated to enhance corrosion protection, while PEI insulators ensure stable dielectric behavior. The adapter maintains performance across −60°C to +100°C.
ROSNOL’s RF adapters combine precision engineering with cost efficiency, serving as dependable alternatives to major global brands. Manufactured under ISO 9001 certified processes and fully compliant with RoHS and REACH, ROSNOL products ensure quality and environmental safety. Customization options for materials, plating, and mechanical design are available to support unique application needs.
