Key Specifications
Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
2.4mm
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
1.85mm
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
50
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15
Description

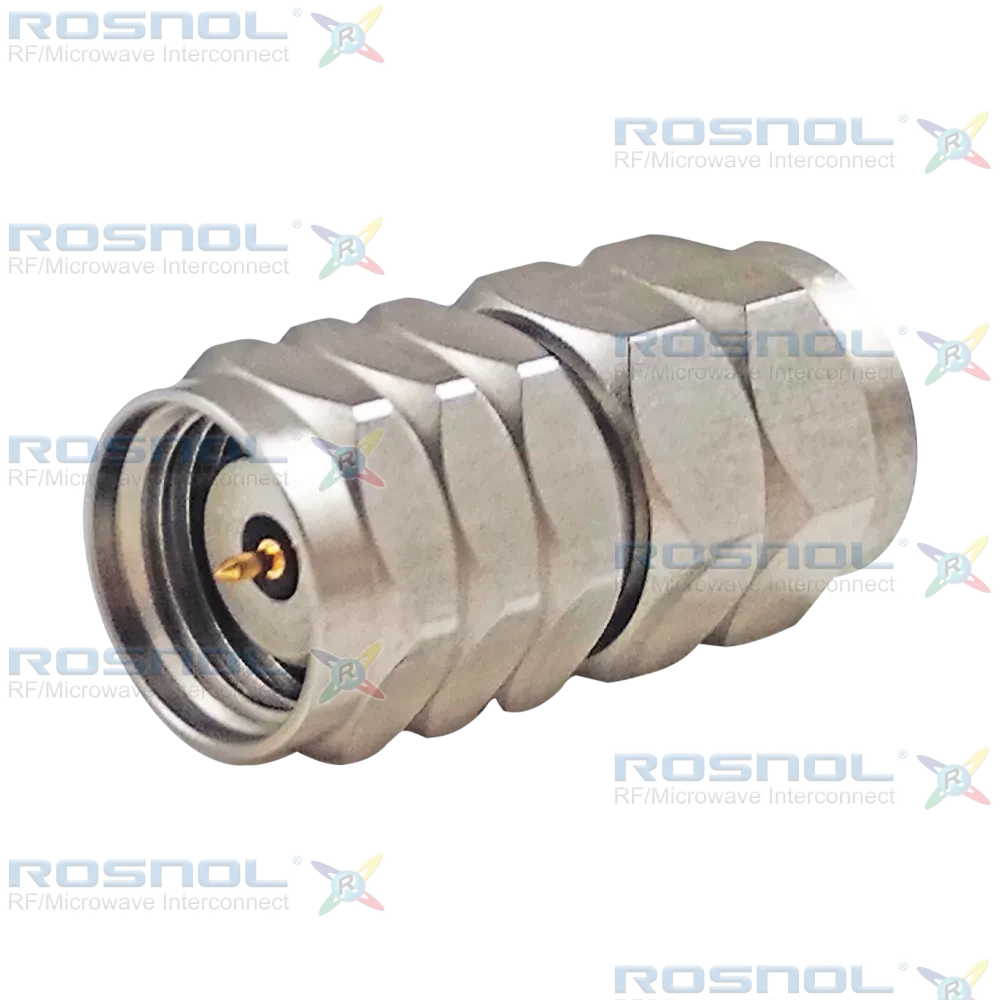

1.85mm Plug (Male) to 2.4mm Plug (Male) Adapter | Straight Design | Screw-Lock | Stainless Steel Body
The ROSNOL AD-V1Q15A/9XX-9XX is a compact, high-frequency adapter designed to ensure stable signal transmission from DC to 50 GHz with a 50-ohm impedance. Its low VSWR of 1.15 supports minimal reflection, making it suitable for precision RF measurements and high-frequency instrumentation. The adapter maintains strong electrical performance with insulation resistance ≥ 5 GΩ, test voltage of 500 Vrms, and RF leakage ≥ 100 dB up to 1 GHz.Constructed with durability in mind, the AD-V1Q15A/9XX-9XX features gold-plated brass center contacts, a passivated stainless-steel body, PEI insulators, and a silicone gasket for enhanced sealing. Both the 1.85mm and 2.4mm sides use screw-lock coupling, supporting 500 or more mating cycles. Mechanical integrity is reinforced by ≥ 20 N center-contact captivation and a recommended torque range of 0.80–1.10 Nm.
ROSNOL’s precision-engineered RF adapters provide reliable, cost-effective performance for demanding RF and microwave applications. Manufactured in ISO 9001-certified facilities and fully compliant with RoHS and REACH requirements, ROSNOL products ensure consistent quality and dependable operation across diverse test and communication systems.
