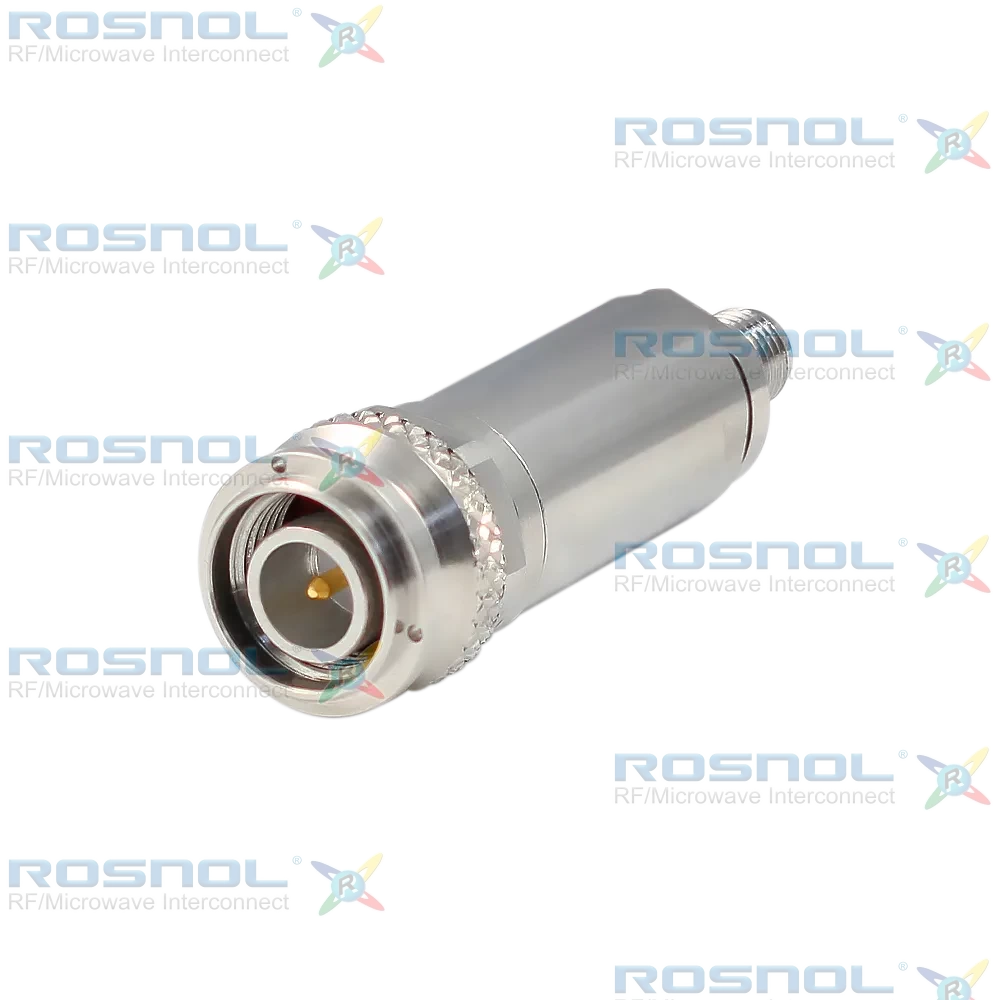

SMA Female to Precision TNC Male Adapter, 18 GHz

Order No:AD-PCT1A25A/944-94
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
Precision TNC
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
1.25

Description

SMA Female to Precision TNC Male Straight Adapter, DC- 18 GHz, VSWR ≤ 1.25, 50 Ω Impedance.

ROSNOL AD-PCT1A25A/944-94 is a precision RF adapter designed to connect a Precision TNC Plug (Male) to an SMA Jack (Female). Featuring 50 Ω impedance, DC to 18 GHz frequency coverage, VSWR ≤ 1.25, and low insertion loss, this adapter provides stable signal transmission for RF, microwave, and measurement applications.

The adapter utilizes beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to ensure excellent conductivity and contact reliability. The Precision TNC and SMA bodies are manufactured from brass with copper-tin-zinc alloy plating, while PTFE and PS insulators provide consistent dielectric performance. With screw-lock coupling interfaces and a minimum mating life of 500 cycles, the adapter supports long-term operational stability.

Its precision interface design delivers dependable impedance matching and low signal reflection across wide frequency ranges. Suitable for RF test equipment, laboratory instrumentation, wireless communication systems, antenna measurement, and microwave assemblies, this adapter enables reliable interconnection between Precision TNC and SMA connector platforms.
