Key Specifications
Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
Precision N
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
Precision TNC
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
VSWR, Max:
1.15
Description

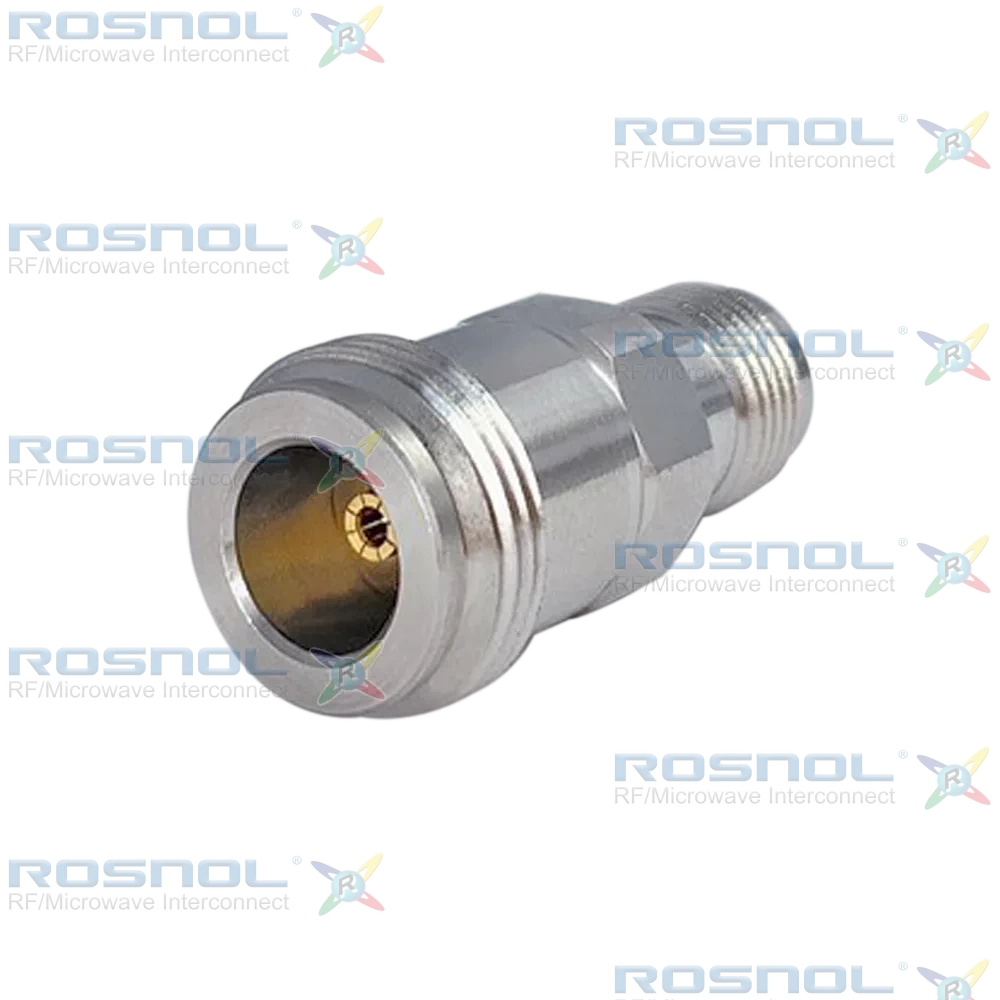

Precision N Jack (Female) to Precision TNC Jack (Female) | Straight Design | Screw-Lock | Brass Body
The ROSNOL AD-PCN2PCT25B/93-93 is engineered for DC to 18 GHz operation, featuring 50 Ω impedance, VSWR ≤ 1.15, and insertion loss ≤ 0.1√F (GHz) dB. It offers insulation resistance ≥ 5 GΩ, center contact resistance ≤ 1 mΩ (Precision N) and ≤ 1.5 mΩ (Precision TNC), and outer contact resistance ≤ 1 mΩ for both ends. Test voltage is 1500 V rms, working voltage 500 V rms. Both ends use screw-lock coupling for secure fit and ≥500 mating cycles. Recommended torque is 1.35 Nm for both sides.Contacts are beryllium copper with gold plating over nickel-phosphorus underplating for superior conductivity. Bodies and coupling nuts are brass with nickel finish, while insulators use PTFE. The adapter operates within -60°C to +100°C for reliable performance in harsh RF conditions.
ROSNOL’s precision-engineered RF adapters deliver reliable performance at competitive pricing. Manufactured in ISO 9001-certified facilities, all products comply with RoHS and REACH regulations. Customization services for materials, plating, and mechanical design are available to meet specialized interconnect requirements.
