Key Specifications
Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
4.1/9.5
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
Precision N
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
14
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.13
Description

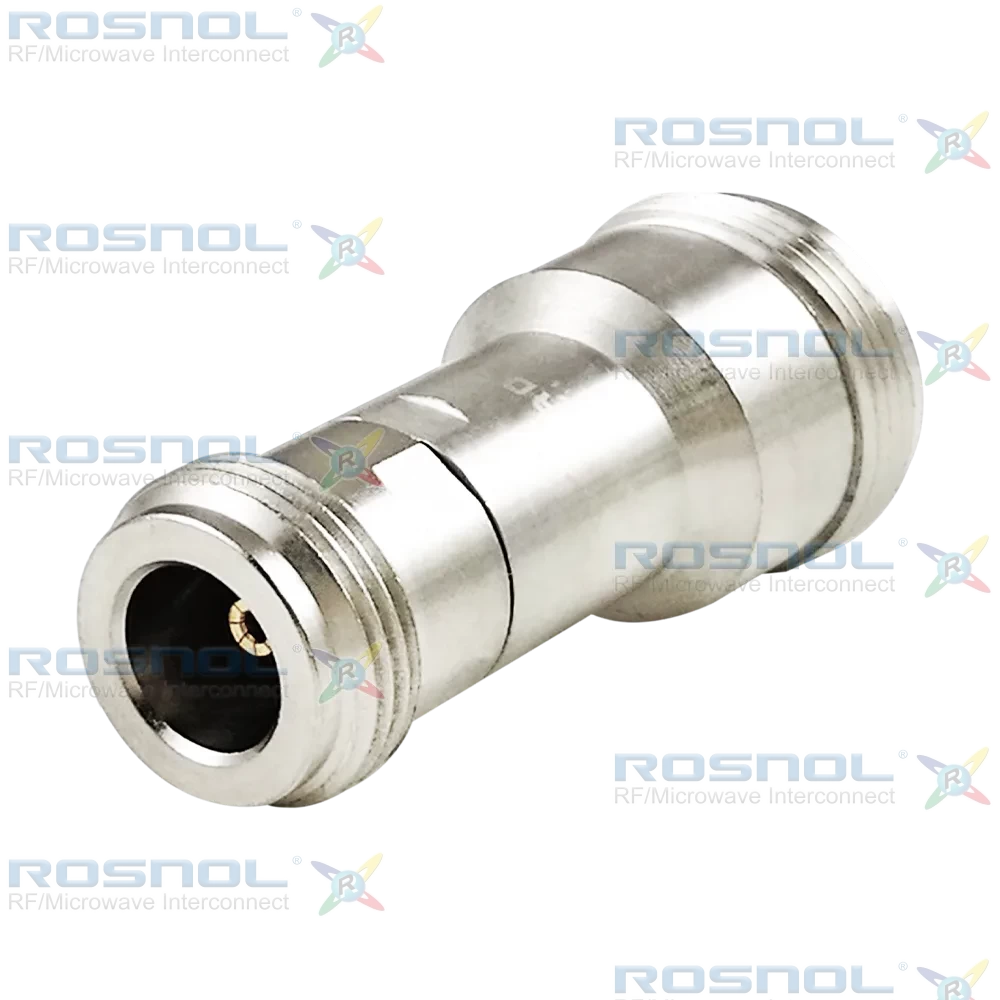

Precision N Jack (Female) to 4.1-9.5 Jack (Female) | Straight Design | Screw-Lock | Mixed Stainless Steel and Brass Alloy Body
The ROSNOL AD-PCN2MD25A/9X-94 delivers DC to 14 GHz performance with 50 Ω impedance, VSWR ≤ 1.13, and insertion loss ≤ 0.04√F (GHz) dB. Precision N and 4.1-9.5 ends adopt screw-lock coupling with ≥500 mating cycles. Maximum torque is 1.70 Nm on the Precision N side and 15 Nm on the 4.1-9.5 side; recommended torque is 1.10 Nm (N) and 2 Nm (4.1-9.5). Gauge dimensions are 5.18–5.26 mm on the N side and 4.95–5.03 mm on the 4.1-9.5 side, supporting reliable mechanical fit. Operating temperature is -65°C to +165°C.Precision N piece parts: beryllium copper center contact with gold over non-magnetic nickel-phosphorus underplating; stainless steel body, passivated; PTFE insulator. 4.1-9.5 piece parts: beryllium copper center contact with the same plating stack; brass copper-tin-zinc alloy body; PTFE insulator.
ROSNOL’s precision-engineered RF adapters deliver reliable performance at competitive pricing. Manufactured in ISO 9001-certified facilities, all products comply with RoHS and REACH regulations. Customization services for materials, plating, and mechanical design are available to meet specialized interconnect requirements.
