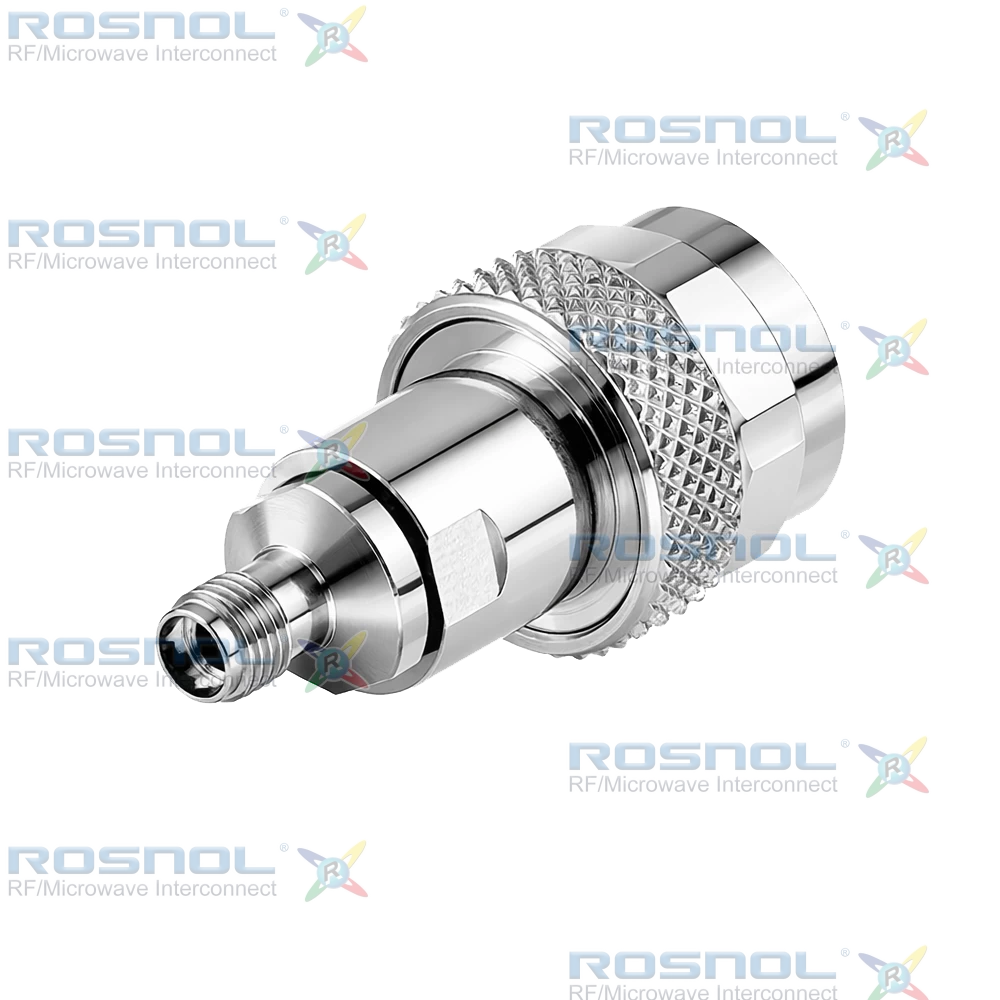

Precision N Male to 2.92mm Female Adapter, 18 GHz

Order No:AD-PCN1K25A/9XX-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
Precision N
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
2.92mm
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

Precision N Male to 2.92mm Female Straight Adapter, DC-18 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

ROSNOL AD-PCN1K25A/9XX-9X is a high-performance straight RF adapter that connects a Precision N Plug (Male) interface to a 2.92 mm Jack (Female) interface. Designed for 50 Ω systems, it supports frequencies from DC to 18 GHz with VSWR ≤ 1.15, low insertion loss, and RF leakage ≥ 90 dB up to 1 GHz, making it suitable for precision microwave and RF measurement applications.

The adapter features beryllium copper center contacts with gold plating and non-magnetic nickel-phosphorus underplating to ensure stable conductivity and low contact resistance. The bodies and coupling nut are manufactured from passivated stainless steel for superior mechanical strength and corrosion resistance, while PS insulators and silicone rubber gaskets provide reliable dielectric and environmental performance. Additional RF characteristics include insulation resistance ≥ 5 GΩ and operating voltage up to 250 V rms.

Engineered for precision RF connectivity, this adapter incorporates screw-lock coupling mechanisms on both interfaces and supports a minimum of 500 mating cycles. It is ideal for RF calibration systems, microwave instrumentation, research laboratories, telecommunications equipment, and other critical applications requiring accurate Precision N to 2.92 mm adaptation.
