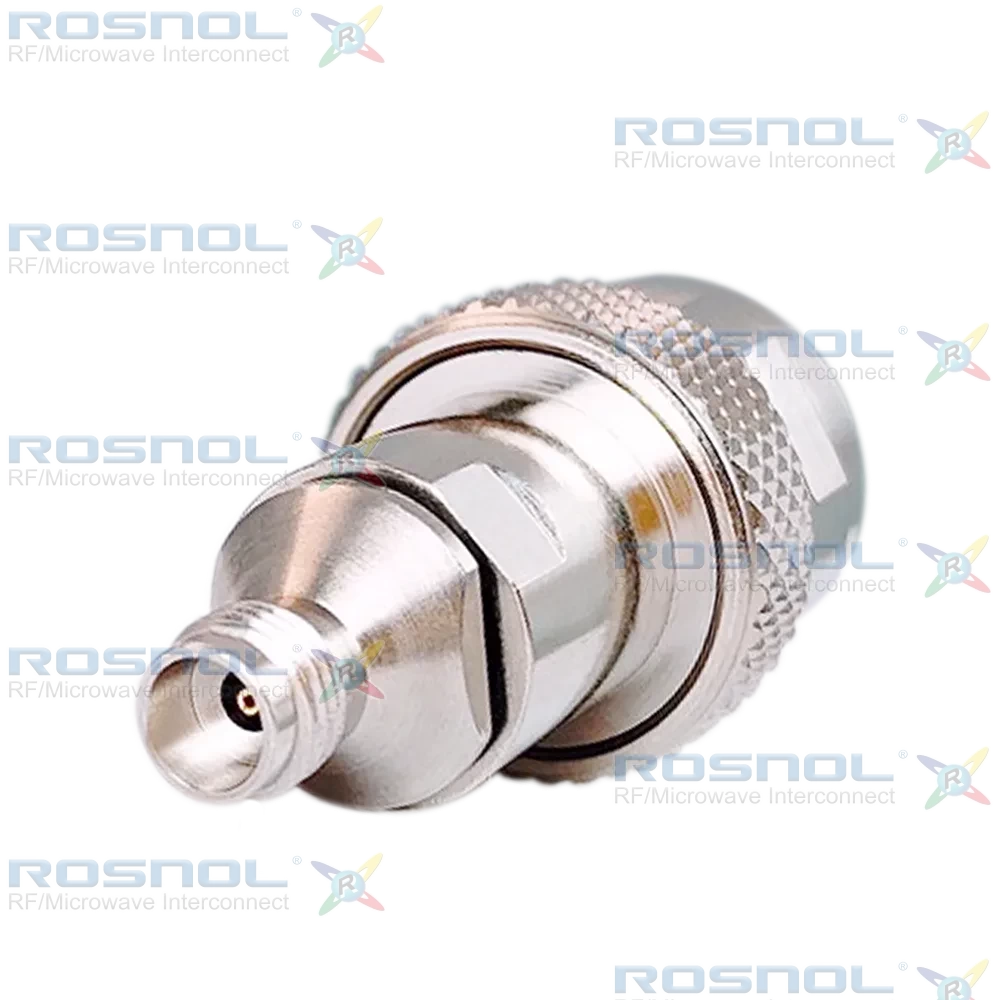

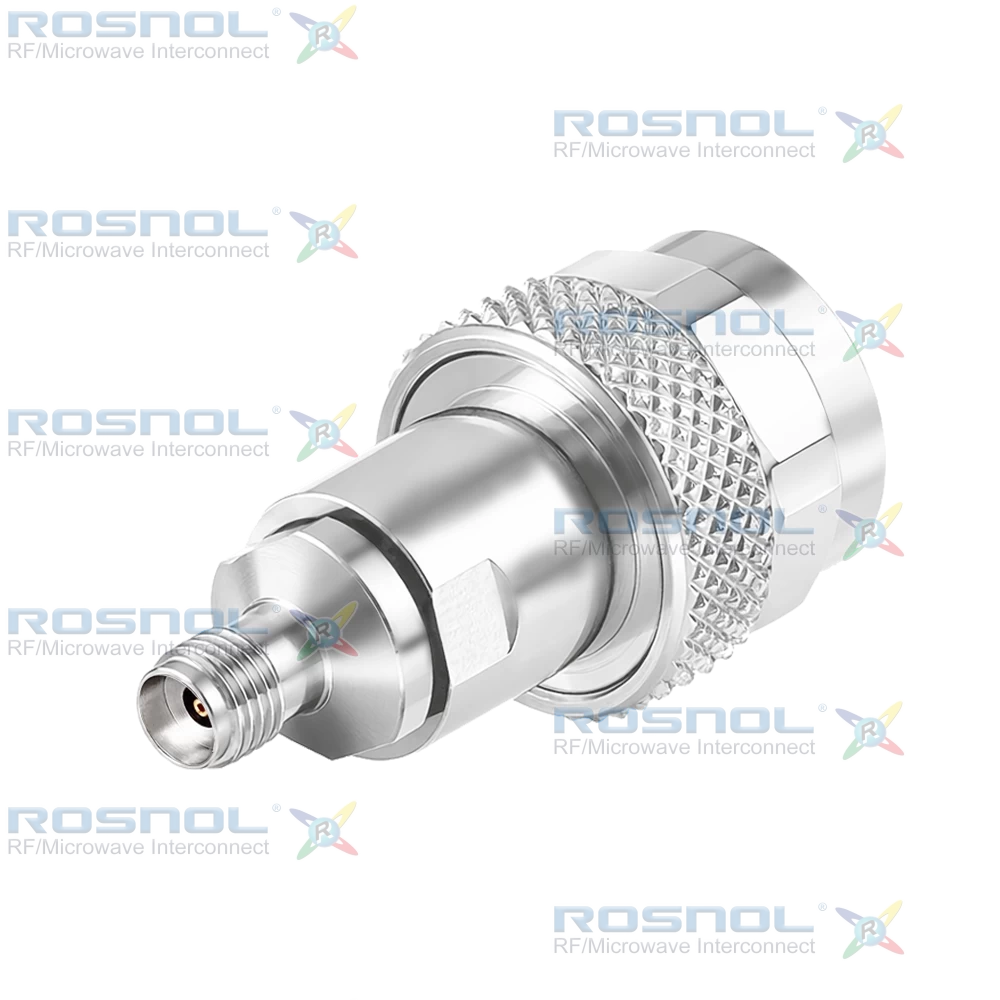

Precision N Male to 2.4mm Female Adapter, 18 GHz

Order No:AD-PCN1Q25A/9XX-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
Precision N
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
2.4mm
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

Precision N Male to 2.4mm Female Straight Adapter, DC-18 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

ROSNOL AD-PCN1Q25A/9XX-9X is a precision RF straight adapter featuring a Precision N Plug (Male) to 2.4 mm Jack (Female) configuration. Designed with 50 Ω impedance, DC to 18 GHz frequency coverage, and VSWR ≤ 1.15, this adapter provides excellent signal integrity and low insertion loss for microwave, test, and high-frequency communication applications.

The adapter incorporates beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to ensure stable electrical performance and low contact resistance. Both connector interfaces utilize passivated stainless steel bodies for superior corrosion resistance and mechanical durability, while PS insulators provide reliable dielectric characteristics. Insulation resistance is rated at ≥ 5 GΩ with a minimum mating life of 500 cycles.

With precision-machined RF interfaces, low return loss, and robust construction, this adapter is suitable for laboratory instrumentation, vector network analyzers, microwave test systems, aerospace electronics, and high-frequency measurement environments requiring accurate interconnection between Precision N and 2.4 mm connector platforms.
