Key Specifications
Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
N
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
BNC
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Bayonet
Frequency, Max (GHz):
4.0
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
VSWR, Max:
1.20
Description

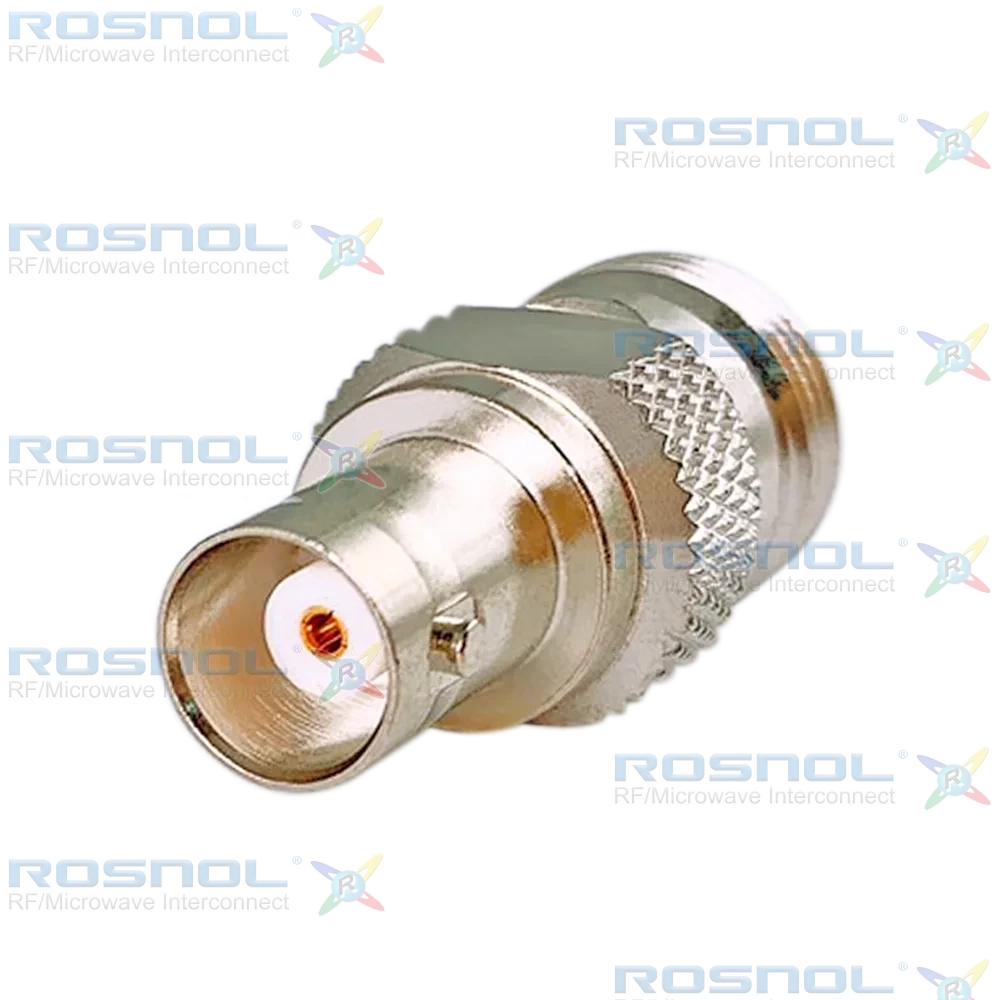

N Jack (Female) to BNC Jack (Female) | Straight Adapter | Screw-Lock & Bayonet-Lock | Brass Body
The ROSNOL AD-N2B25A/H3-H3 is a precision RF adapter designed for secure connectivity between N female and BNC female interfaces. It operates from DC to 4 GHz with 50 Ω impedance, VSWR ≤1.20, insertion loss ≤0.05√F (GHz) dB, insulation resistance ≥5 GΩ, and working voltage 400 V rms. Power handling reaches 80 W at 2 GHz. Coupling mechanisms include screw-lock on the N side and bayonet-lock on the BNC side, ensuring reliable engagement with axial captivation ≥28 N and ≥500 mating cycles. Recommended torque for N side: 1.0 Nm.Contacts are phosphor bronze with gold plating over nickel-phosphorus underplating for excellent conductivity and corrosion resistance. Bodies and coupling nuts are brass with nickel plating; insulators PTFE. The adapter withstands −65°C to +165°C and complies with RoHS.
