Key Specifications
Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
BNC
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
UHF
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Bayonet
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
300MHz
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
N/A
Description

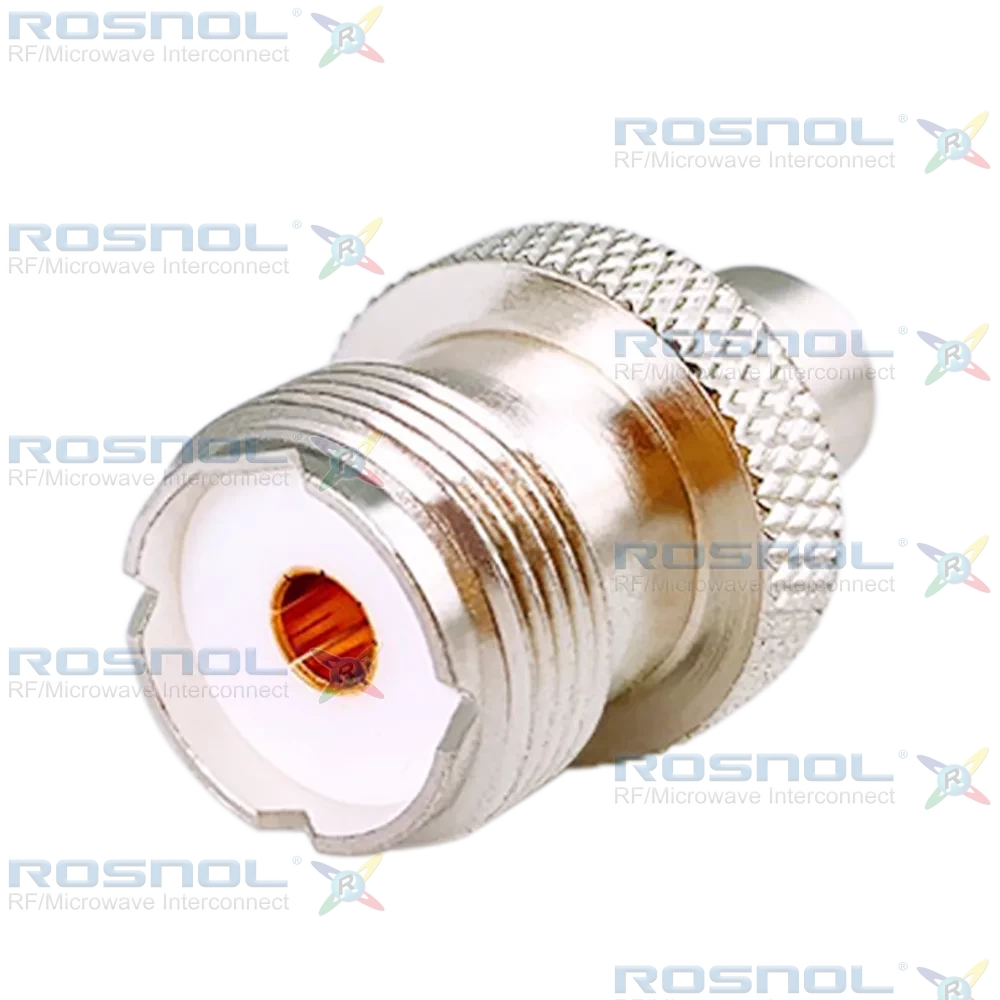

BNC Jack (Female) to UHF Jack (Female) | Straight Design | Bayonet-Lock & Screw-Lock | Brass Body
The ROSNOL AD-B2U25A/H4-H4 is designed for DC to 300 MHz operation, featuring BNC (50 Ω) and UHF (non-constant impedance) interfaces for dependable signal transfer. Electrical specifications include 1500 Vrms test voltage, 400 Vrms working voltage, and typical power handling of 400 W at 300 MHz under VSWR 1.0. Contact resistance is ≤1.5 mΩ on the BNC side and ≤5 mΩ on the UHF side; outer contact resistance ≤1 mΩ and ≤5 mΩ respectively. Coupling combines bayonet-lock and screw-lock for secure engagement, supporting ≥500 mating cycles and axial captivation ≥30 N.Materials and plating: center contacts are phosphor bronze with 3 µin gold plating over 80 µin nickel-phosphorus underplating. Bodies and coupling nuts are brass with copper-tin-zinc alloy plating; insulators are PTFE. Rated for −55 °C to +145 °C, this adapter ensures corrosion resistance and mechanical durability.
ROSNOL delivers precision-engineered RF adapters for uncompromising performance in high-frequency and microwave applications. Manufactured under ISO 9001-certified processes, fully RoHS and REACH compliant, and offering cost-effective alternatives to leading brands. Customization for materials, plating, and mechanical design is available to meet specialized interconnect requirements.
