BNC Male to UHF Female Adapter, DC-300 MHz

Order No:AD-B1U25A/H44-H4
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
BNC
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
UHF
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Bayonet
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
300MHz
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
N/A

Description

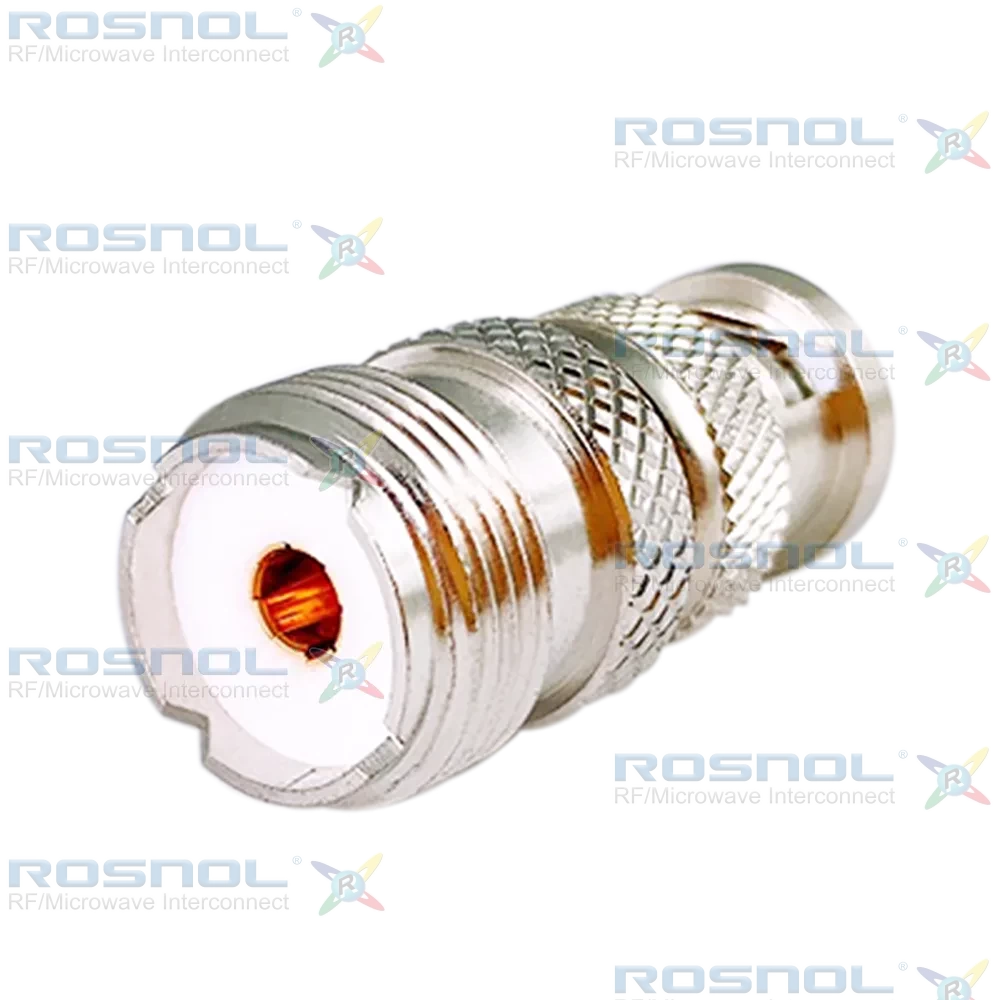

BNC Male to UHF Female Straight Adapter, DC-300 MHz, 50 Ω Impedance.

ROSNOL AD-B1U25A/H44-H4 is a straight RF adapter designed to connect a BNC Plug (Male) to a UHF Jack (Female). Operating from DC to 300 MHz, this adapter supports reliable RF signal transmission with low contact resistance, high power handling up to 400 W at 300 MHz, and stable electrical performance. It is suitable for radio communication equipment, antenna systems, instrumentation, and industrial RF applications.

The adapter utilizes phosphor bronze center contacts with gold plating over non-magnetic nickel-phosphorus underplating for superior conductivity and long-term durability. Connector bodies and coupling hardware are manufactured from brass with copper-tin-zinc alloy plating, providing enhanced environmental protection and corrosion resistance. PTFE insulators ensure excellent dielectric stability, while silicone rubber gaskets improve reliability in demanding operating conditions.

The combination of a BNC bayonet-lock connection and a UHF threaded interface enables secure installation and dependable RF performance. The AD-B1U25A/H44-H4 is well suited for wireless communication systems, radio networks, testing equipment, antenna infrastructure, and signal distribution applications requiring durable BNC-to-UHF connectivity.
