7/16 Male to LC Male Adapter, DC-1 GHz

Order No:AD-D1LC15A/044-044
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
7/16
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
LC
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
1.0
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
1.20

Description

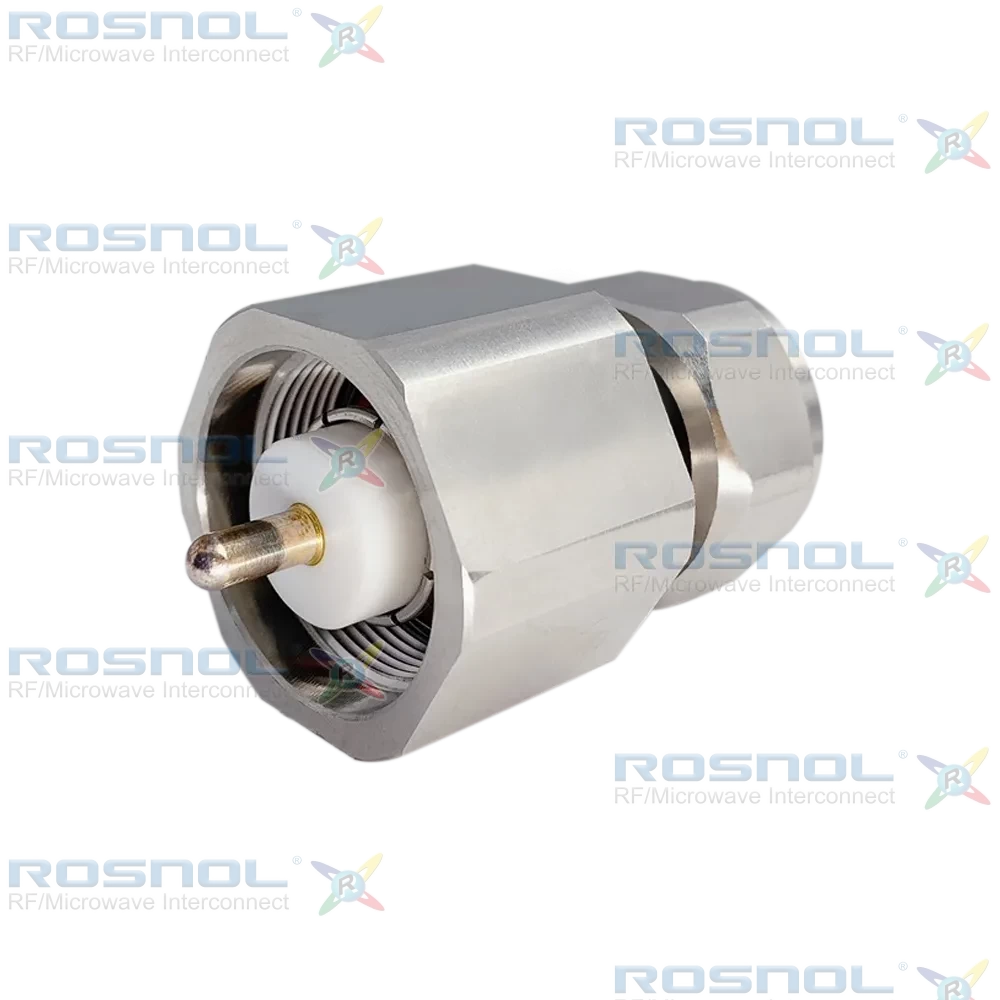

7/16 Male to LC Male Straight Adapter, DC-1 GHz, VSWR ≤ 1.20, 50 Ω Impedance.

ROSNOL AD-D1LC15A/044-044 is a straight RF adapter designed to connect a 7/16 Plug (Male) to an LC Plug (Male). Engineered for 50 Ω systems, it supports frequencies from DC to 1 GHz with VSWR ≤ 1.20 and insertion loss ≤ 0.1 × √f (GHz) dB, ensuring stable signal transmission and reliable impedance matching for RF communication and transmission systems.

The adapter features brass center contacts with silver plating to provide excellent conductivity and low contact resistance. Both the 7/16 and LC connector bodies are manufactured from brass with copper-tin-zinc alloy plating for enhanced durability and corrosion resistance. PTFE insulators ensure stable dielectric performance, while silicone rubber gaskets improve environmental reliability. Both interfaces utilize screw-lock coupling mechanisms and support a minimum of 500 mating cycles.

With robust threaded interfaces on both ends, the AD-D1LC15A/044-044 delivers secure mechanical retention and dependable RF performance. It is suitable for RF transmission equipment, broadcast systems, communication infrastructure, antenna networks, and other applications requiring reliable 7/16-to-LC interconnection.
