Key Specifications
Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
SMP
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
2.4mm
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Snap-On
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
40
Connector 1 Body Material:
Beryllium Copper
Connector 1 Body Plating:
Gold Plating (Nickel underplated)
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.20
Description

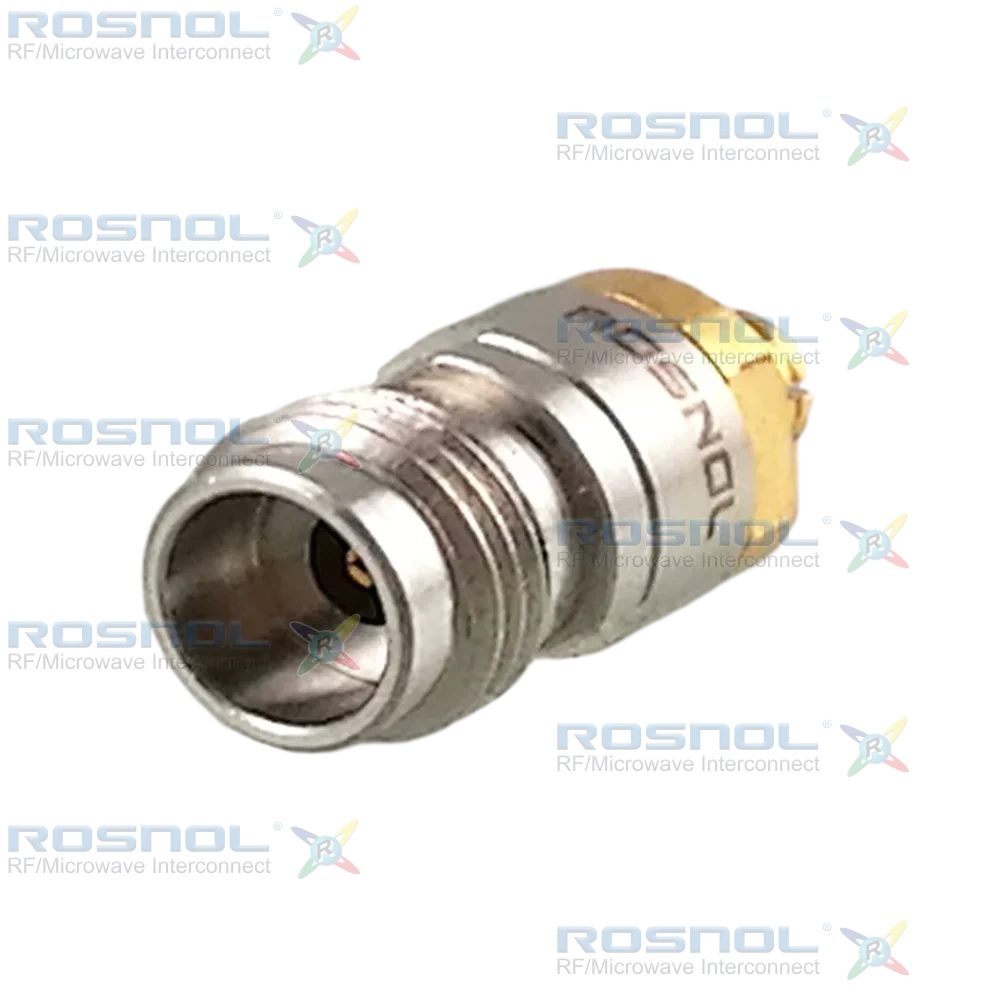

2.4mm Jack (Female) to SMP Jack (Female) Adapter | Straight Design | Screw-Lock & Snap-On | Stainless Steel Body
The ROSNOL AD-Q2P25A/9X-99 is engineered for DC to 40 GHz applications, offering 50 Ω impedance, VSWR ≤ 1.20 (≥20.83 dB return loss), and insertion loss ≤ 0.05√f (GHz) dB. Electrical specifications include insulation resistance ≥5 GΩ and robust contact integrity. Coupling mechanisms include screw-lock for the 2.4mm side and snap-on for the SMP side, ensuring secure engagement and mechanical endurance suitable for high-frequency systems.Material construction includes beryllium copper center contacts with gold plating over nickel underplating, stainless steel bodies with passivation for the 2.4mm interface, and beryllium copper body for SMP with gold plating. PS insulators provide stable dielectric properties. The adapter withstands temperatures from −60°C to +100°C, ensuring dependable performance in harsh conditions.
ROSNOL’s RF adapters are manufactured under ISO 9001-certified processes and comply with RoHS and REACH regulations. Offering exceptional quality at competitive pricing, ROSNOL products serve as reliable alternatives to major European and American brands. Customization services for plating, materials, and mechanical design are available upon request.
