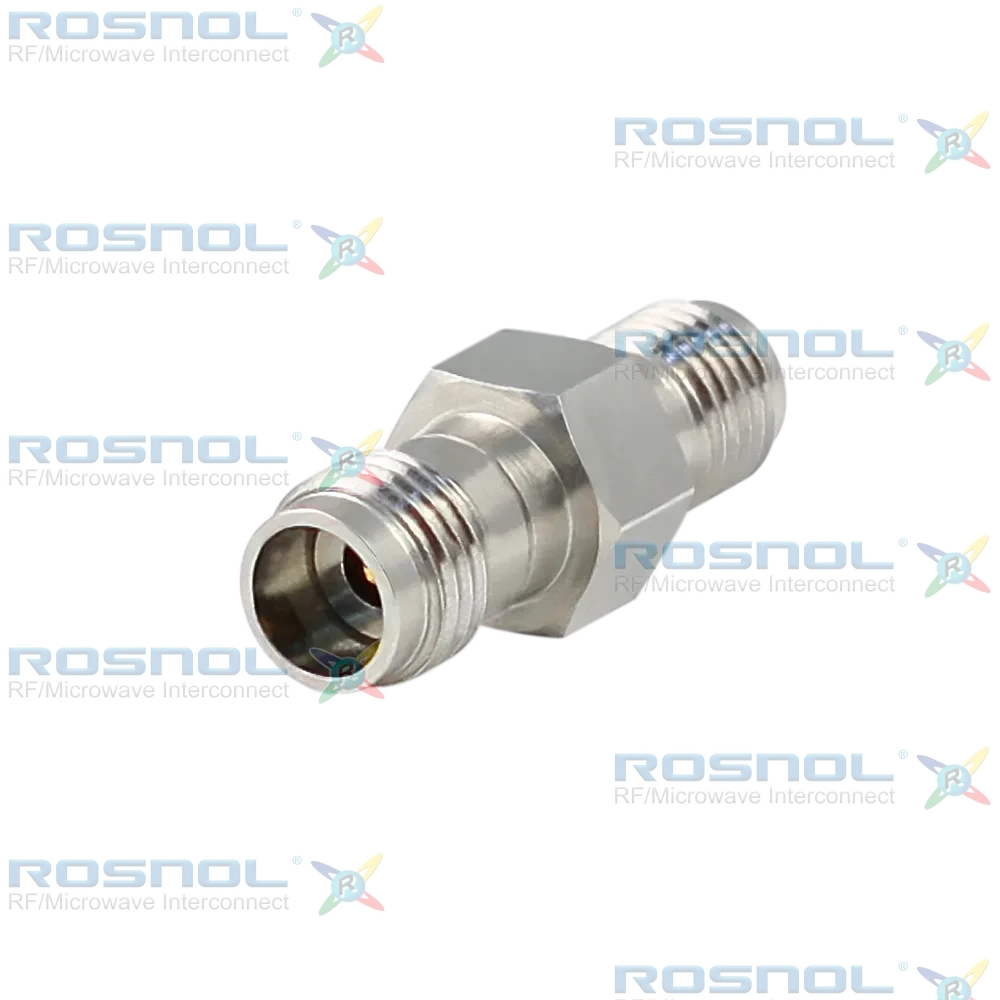

SMA to 2.4mm Female Adapter, DC-18 GHz

Order No:AD-Q2A25A/9X-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
2.4mm
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

SMA Female to 2.4mm Female Straight Adapter, DC-18 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

ROSNOL AD-Q2A25A/9X-9X is a precision RF straight adapter designed to connect a 2.4 mm Jack (Female) to an SMA Jack (Female). Featuring 50 Ω impedance, DC to 18 GHz frequency coverage, VSWR ≤ 1.15, and insertion loss ≤ 0.05 × √F (GHz) dB, it provides stable broadband signal transmission for RF testing and microwave applications.

The adapter incorporates beryllium copper center contacts with gold plating over nickel underplating to maintain excellent conductivity and low contact resistance. Both connector bodies are manufactured from passivated stainless steel, while the 2.4 mm side uses a PS insulator and silicone rubber gasket, and the SMA side utilizes a PTFE insulator to ensure stable dielectric performance. The screw-lock coupling design enhances connection reliability in demanding RF environments.

Designed for accurate RF interconnection, this adapter offers low return loss, robust mechanical construction, and dependable impedance control. It is ideal for laboratory instrumentation, RF measurement systems, microwave assemblies, wireless communication equipment, and other applications requiring 2.4 mm to SMA female-to-female connectivity.
