2.4mm Male to SMA Female Straight Adapter, DC-18 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

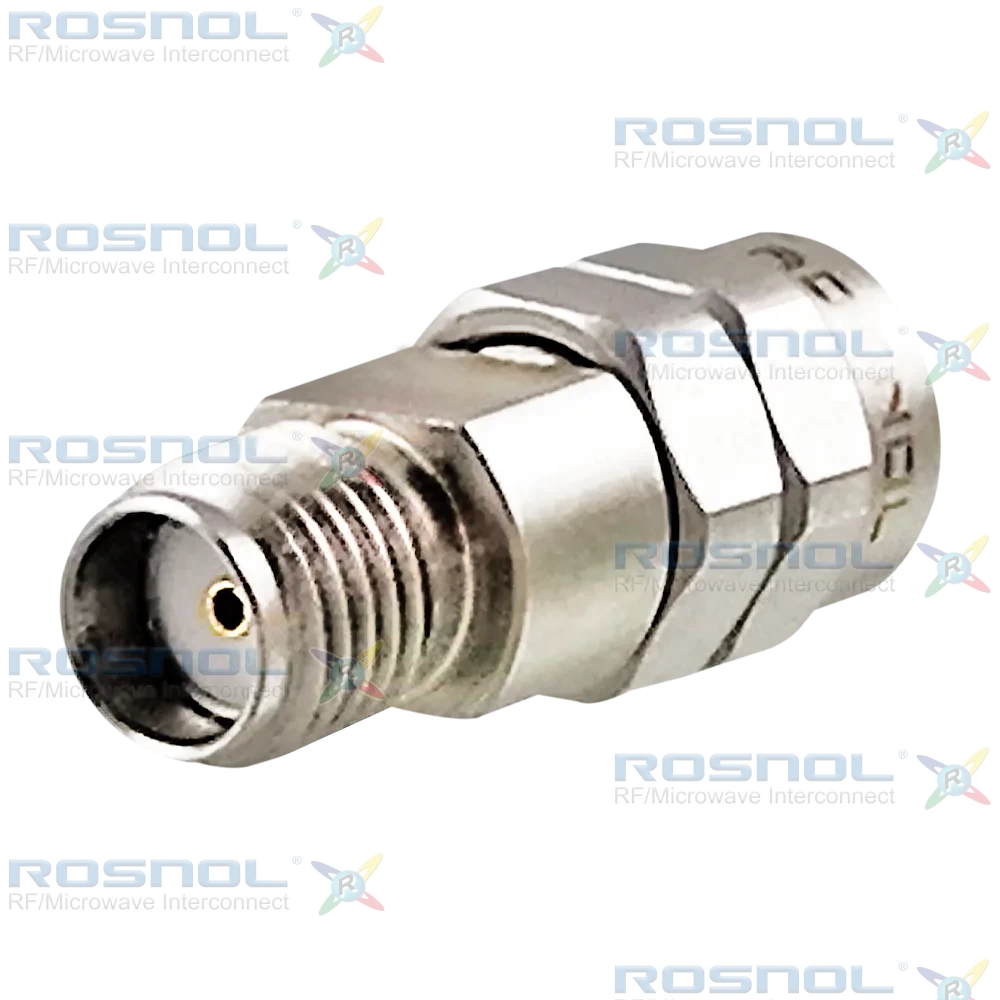

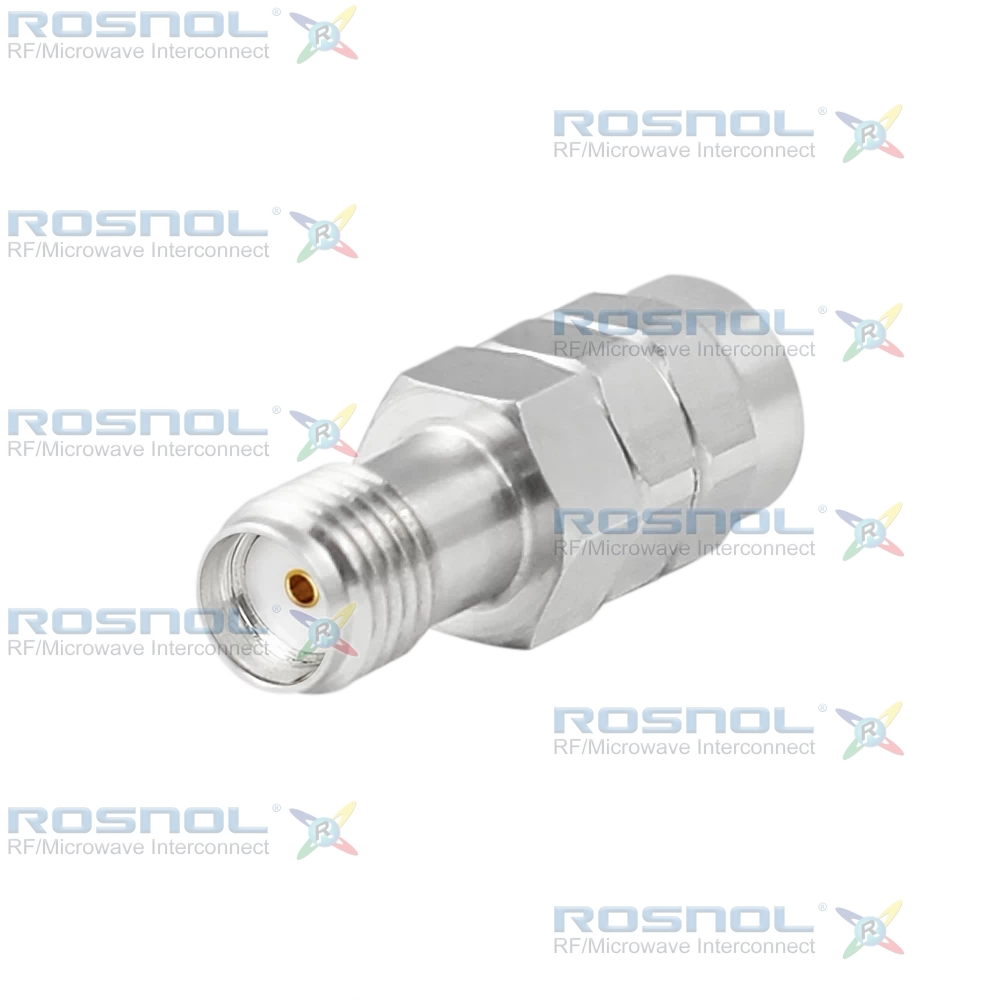

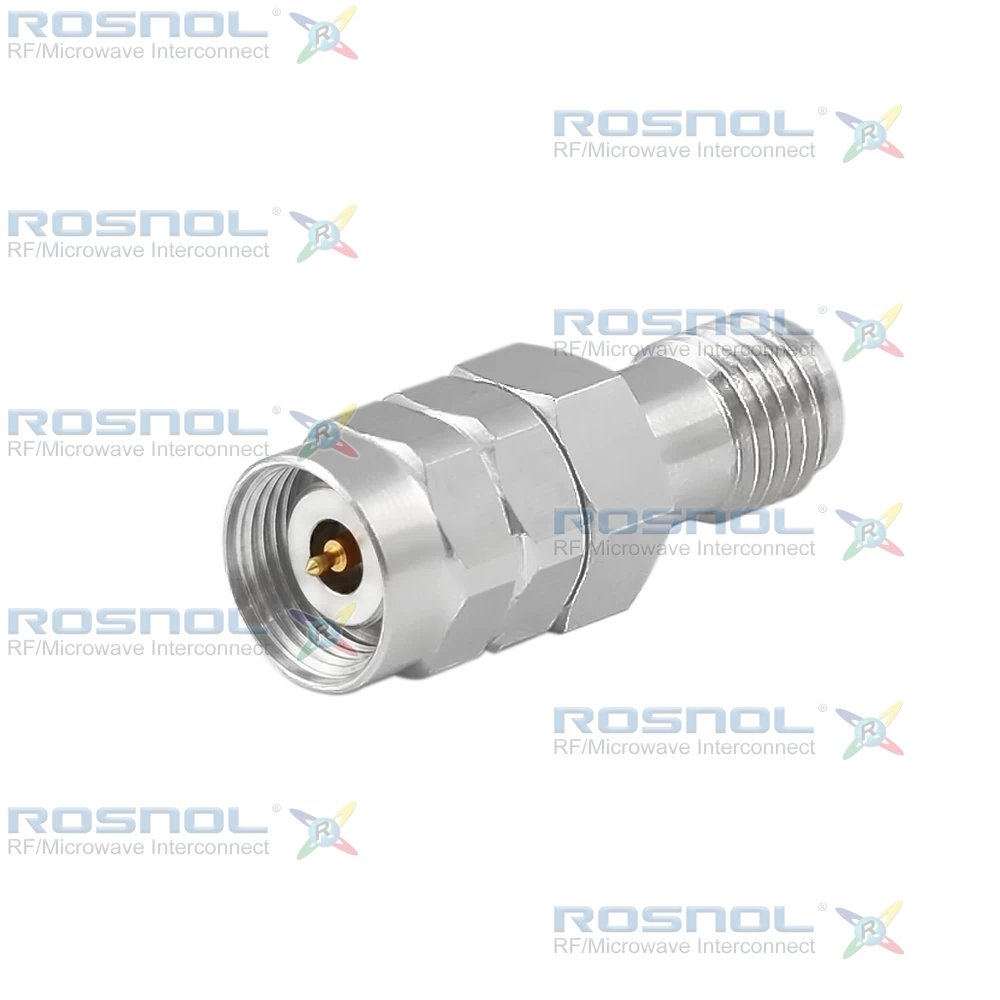

ROSNOL AD-Q1A25B/9XX-9X is a precision RF straight adapter designed to connect a 2.4 mm Plug (Male) to an SMA Jack (Female). Supporting 50 Ω impedance, DC to 18 GHz frequency operation, VSWR ≤ 1.15, and insertion loss ≤ 0.05 × √F (GHz) dB, this adapter provides excellent signal integrity for broadband RF and microwave applications.
The adapter utilizes beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to ensure low contact resistance and stable electrical performance. Both the 2.4 mm and SMA connector bodies are manufactured from passivated stainless steel for superior durability and corrosion resistance. PS insulators and a silicone rubber gasket provide reliable dielectric and environmental performance. Additional specifications include insulation resistance ≥ 5 GΩ, RF leakage ≥ 100 dB up to 1 GHz, test voltage of 500 Vrms, and mating durability exceeding 500 cycles.
Engineered for precision impedance matching and low reflection performance, this adapter is well suited for vector network analyzers, RF laboratories, microwave instrumentation, calibration systems, aerospace electronics, and communication equipment requiring dependable 2.4 mm to SMA interconnections.
