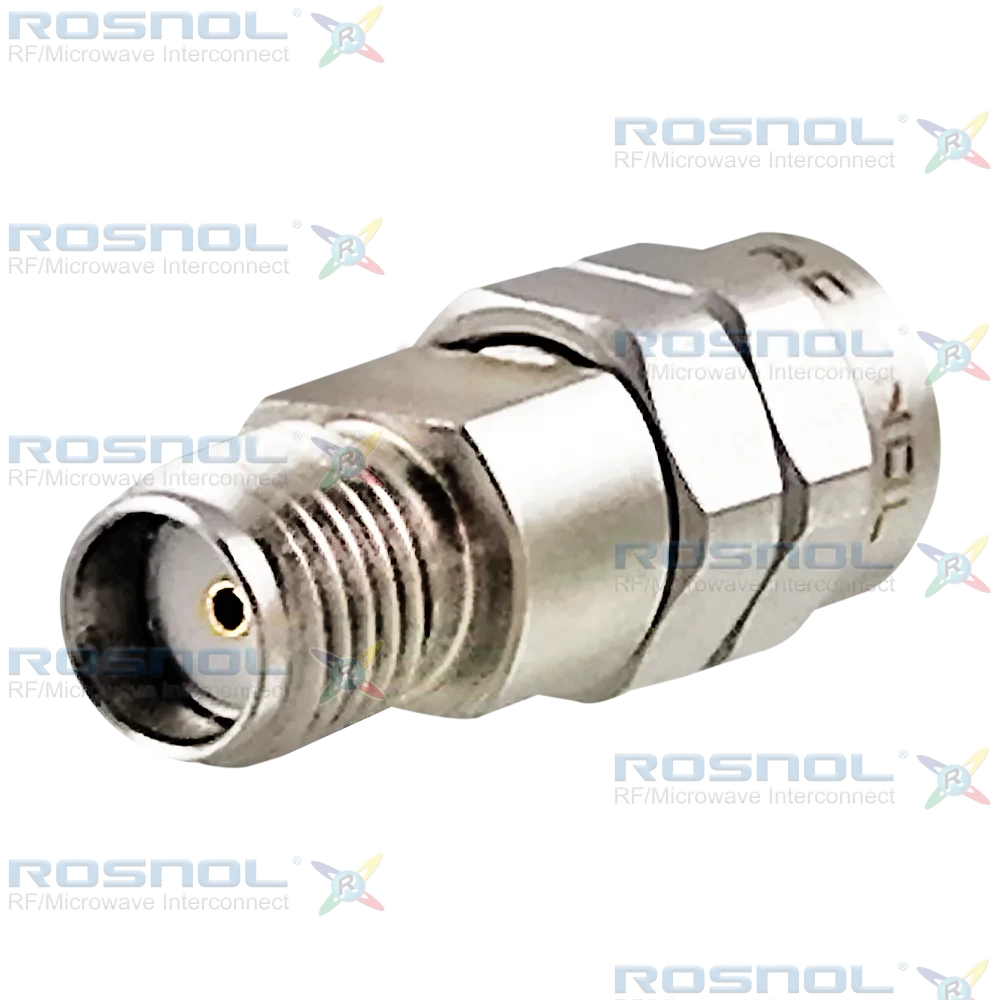

2.4mm Male to SMA Female Adapter, DC-18 GHz

Order No:AD-Q1A25A/9XX-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
2.4mm
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

2.4mm Male to SMA Female Straight Adapter, DC-18 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

ROSNOL AD-Q1A25A/9XX-9X is a high-performance RF straight adapter that connects a 2.4 mm Plug (Male) to an SMA Jack (Female). Designed for 50 Ω systems, it supports DC to 18 GHz operation with VSWR ≤ 1.15, insertion loss ≤ 0.05 × √F (GHz) dB, and RF leakage ≥ 100 dB up to 1 GHz, ensuring reliable broadband signal transmission.

The adapter incorporates beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to maintain excellent conductivity and long-term stability. Both connector bodies and coupling nuts are constructed from passivated stainless steel, while PEI and PTFE insulators provide dependable dielectric performance. Silicone rubber gaskets enhance environmental protection, and insulation resistance is rated at ≥ 5 GΩ.

With precision-machined interfaces, low return loss, and mating durability of more than 500 cycles, this adapter is ideal for RF measurement systems, microwave instrumentation, wireless communications, laboratory environments, and applications requiring interconnection between 2.4 mm and SMA connector platforms.
