SMA to 2.4mm Male Adapter, DC-18 GHz

Order No:AD-Q1A15A/9XX-9XX
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
SMA
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
2.4mm
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

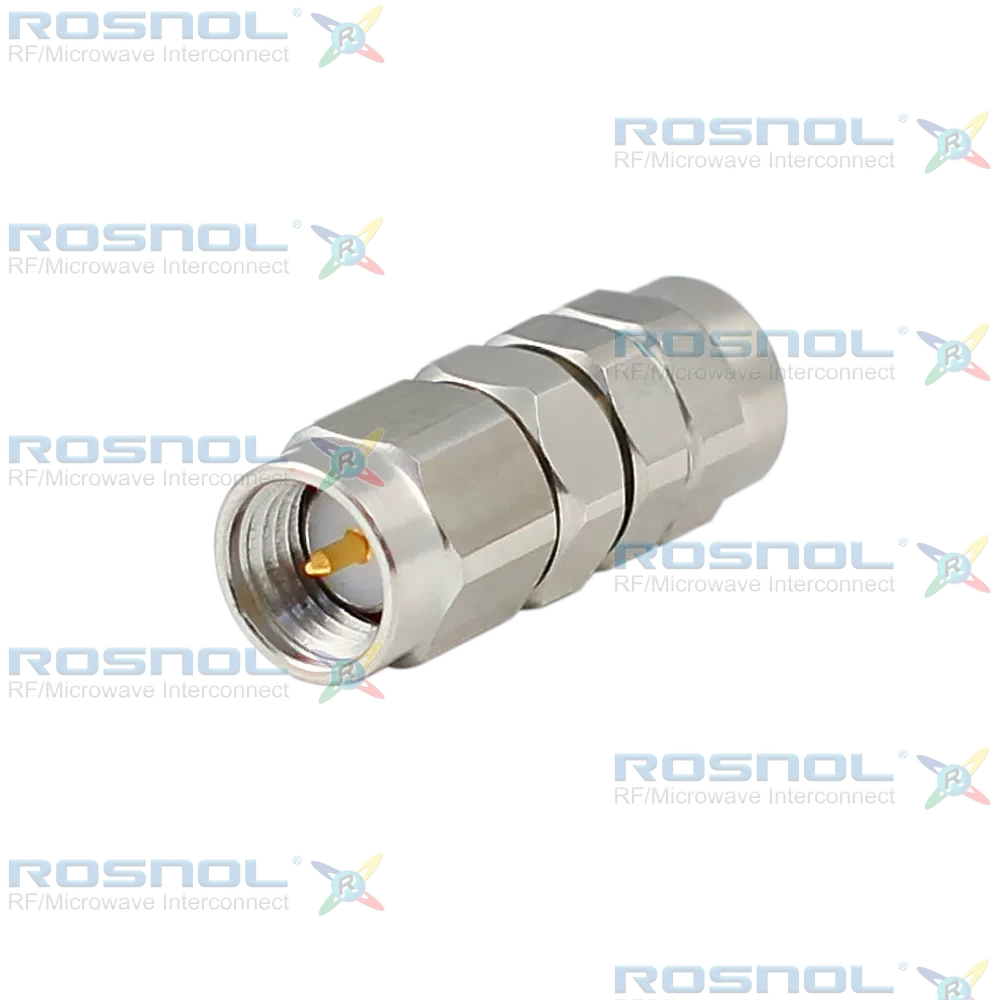

SMA Male to 2.4mm Male Straight Adapter, DC-18 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

ROSNOL AD-Q1A15A/9XX-9XX is a precision RF straight adapter designed to connect a 2.4 mm Plug (Male) to an SMA Plug (Male). Featuring 50 Ω impedance, DC to 18 GHz frequency coverage, VSWR ≤ 1.15, and insertion loss ≤ 0.05 × √F (GHz) dB, it provides excellent signal integrity for broadband RF and microwave applications.

The adapter utilizes beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to ensure stable electrical performance and low contact resistance. Both the 2.4 mm and SMA interfaces use passivated stainless steel bodies and coupling nuts, while PEI and PTFE insulators provide reliable dielectric characteristics. Silicone rubber gaskets improve environmental resistance, and insulation resistance is specified at ≥ 5 GΩ.

Engineered for precise RF interconnection, this adapter offers secure screw-lock coupling, low reflection performance, and mating durability exceeding 500 cycles. It is suitable for vector network analyzers, calibration systems, laboratory instrumentation, aerospace electronics, and high-frequency communication equipment requiring dependable 2.4 mm to SMA connectivity.
