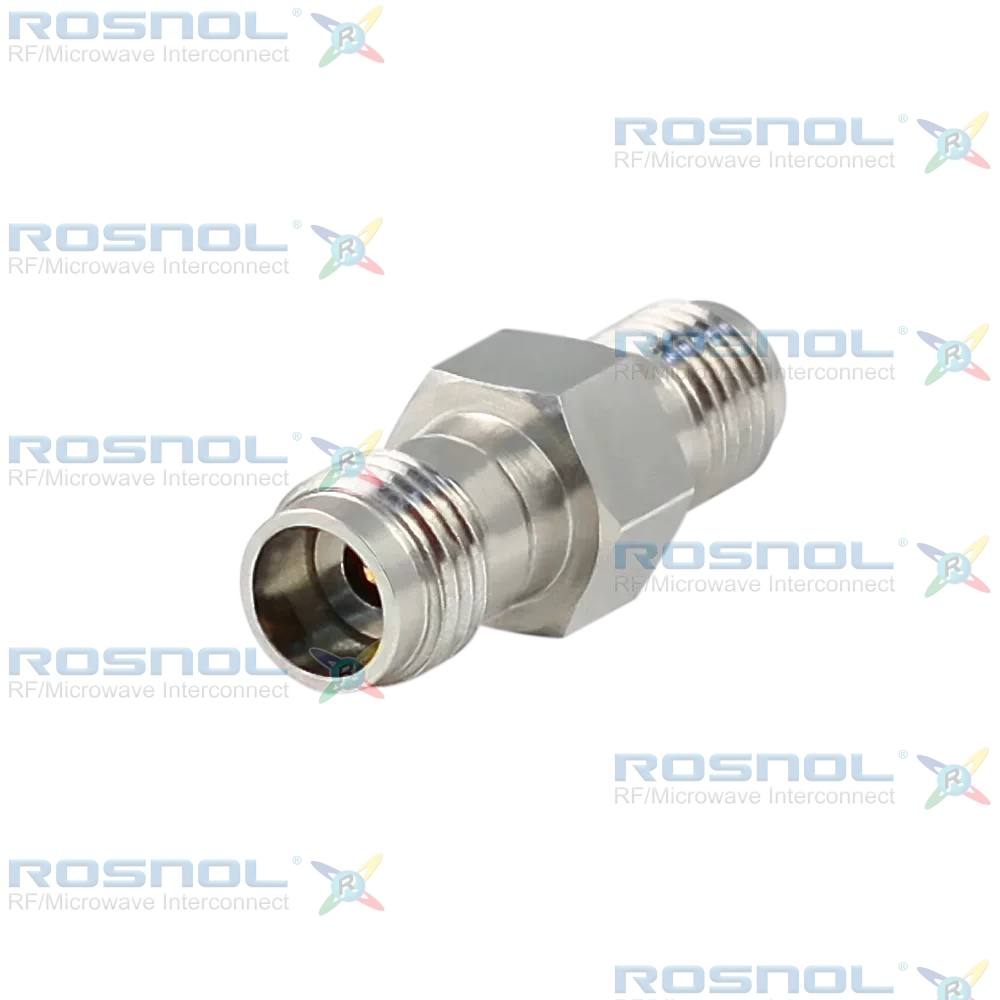

Precision SMA to 2.4mm Female Adapter, 27 GHz

Order No:AD-Q2PCA25A/9X-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
Precision SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
2.4mm
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
27
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.12

Description

Precision SMA Female to 2.4mm Female Straight Adapter, DC-27 GHz, VSWR ≤ 1.12, 50 Ω Impedance.

ROSNOL AD-Q2PCA25A/9X-9X is a high-performance straight RF adapter featuring a 2.4mm female connector to Precision SMA female connector configuration. Designed for precision microwave interconnection, this 50Ω adapter supports frequencies from DC to 27GHz with excellent VSWR ≤1.12 and low insertion loss, making it suitable for demanding RF, microwave, laboratory, and test applications.

The adapter utilizes beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating, ensuring stable conductivity and signal integrity. Stainless steel bodies with passivated surface treatment provide mechanical durability and corrosion resistance. Key RF characteristics include insulation resistance ≥5GΩ and RF leakage ≥100dB up to 1GHz, supporting reliable high-frequency transmission.

With precision-machined interfaces, low VSWR performance, and over 500 mating cycles, the AD-Q2PCA25A/9X-9X is ideal for RF test systems, measurement equipment, microwave assemblies, aerospace electronics, and communication infrastructure. Its excellent return loss and robust construction help maintain signal accuracy while minimizing reflection and transmission losses in high-frequency environments.
