Key Specifications
Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
2.4mm
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
Precision SMA
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
27
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.12
Description

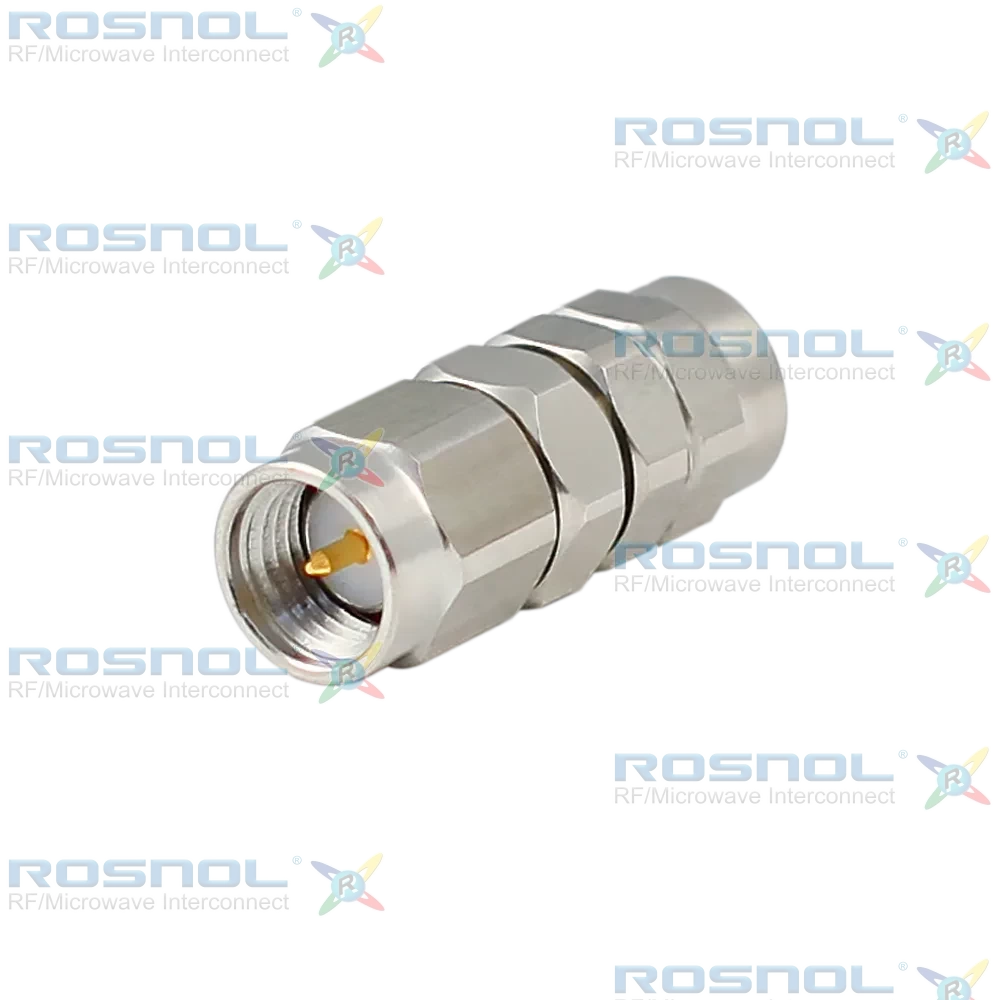

2.4mm Plug (Male) to Precision SMA Plug (Male) Adapter | Straight Design | Screw-Lock | Stainless Steel Body
The ROSNOL AD-Q1PCA15A/9XX-9XX is a precision RF adapter optimized for DC to 27 GHz operation, featuring 50 Ω impedance, VSWR ≤ 1.12 (>24.94 dB return loss), and insertion loss ≤ 0.05√f (GHz) dB. Electrical ratings include insulation resistance ≥5 GΩ and robust contact integrity. Coupling mechanisms are screw-lock on both sides, with center contact captivation ≥20 N and mechanical durability of ≥500 cycles.Constructed with beryllium copper center contacts plated with gold over nickel underplating, stainless steel bodies with passivation, and PS and PTFE insulators for excellent dielectric stability. The adapter operates reliably across −60°C to +100°C, making it suitable for high-frequency and demanding RF environments.
ROSNOL’s precision-engineered RF adapters deliver consistent performance across RF and microwave systems. Manufactured in ISO 9001-certified facilities, all products comply with RoHS and REACH standards, offering a cost-effective alternative to leading European and American brands. Customization services for materials, plating, and mechanical design are available to meet specialized interconnect requirements.
