2.4mm to 3.5mm Female Adapter, DC-34.5 GHz

Order No:AD-Q2PC25A/9X-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
2.4mm
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
3.5mm
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
34.5
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

2.4mm Female to 3.5mm Female Straight Adapter, DC-34.5 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

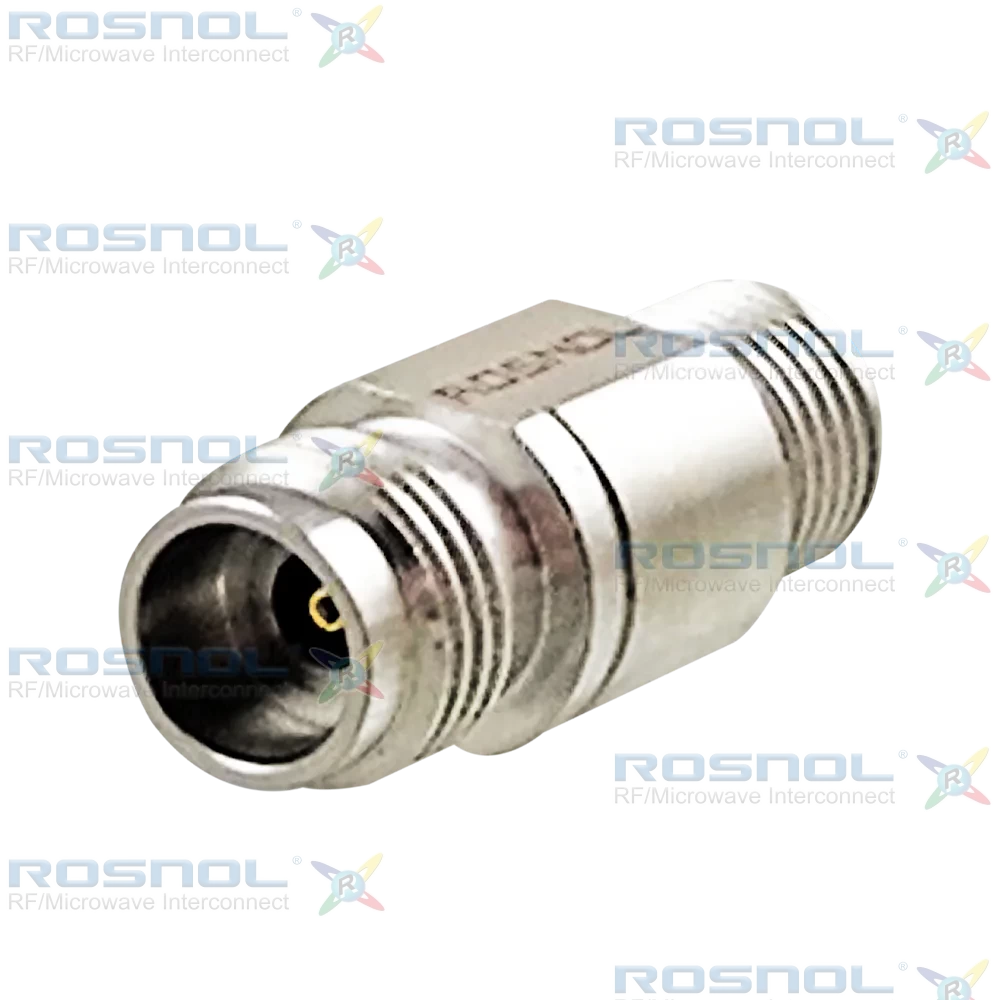

ROSNOL AD-Q2PC25A/9X-9X is a precision RF straight adapter that interfaces a 2.4 mm Jack (Female) with a 3.5 mm Jack (Female). Featuring 50 Ω impedance, DC to 34.5 GHz frequency operation, VSWR ≤ 1.15, insertion loss ≤ 0.05 × √F (GHz) dB, and RF leakage ≥ 100 dB up to 1 GHz, it delivers exceptional RF performance for broadband microwave applications.

The adapter incorporates beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating for superior conductivity and contact stability. Both connector bodies are manufactured from passivated stainless steel, providing excellent corrosion resistance and mechanical durability. PEI insulators ensure reliable dielectric performance, while insulation resistance is rated at ≥ 5 GΩ. The adapter is designed to withstand more than 500 mating cycles.

With low return loss, precision interface geometry, and robust mechanical construction, this adapter is well suited for vector network analyzers, RF calibration systems, aerospace electronics, laboratory testing, and other high-frequency applications requiring stable and repeatable signal transmission up to 34.5 GHz.
