3.5mm Female to 2.4mm Male Adapter, 34.5 GHz

Order No:AD-Q1PC25A/9XX-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
3.5mm
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
2.4mm
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
34.5
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

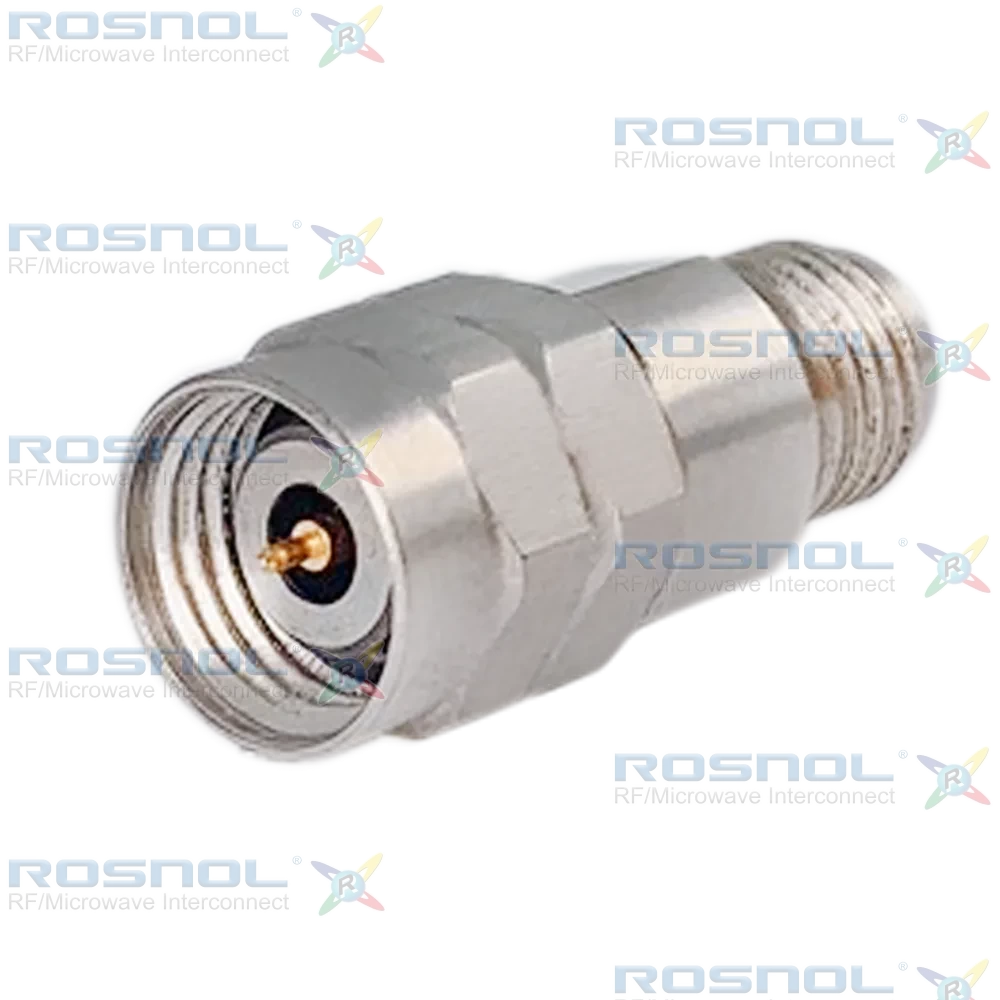

3.5mm Female to 2.4mm Male Straight Adapter, DC-34.5 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

ROSNOL AD-Q1PC25A/9XX-9X is a high-performance RF adapter designed to connect a 2.4 mm Plug (Male) to a 3.5 mm Jack (Female). Engineered for 50 Ω systems, it supports frequencies from DC to 34.5 GHz with VSWR ≤ 1.15, low insertion loss, and RF leakage ≥ 100 dB up to 1 GHz, delivering reliable broadband signal transmission for precision RF and microwave applications.

The adapter features beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to ensure excellent electrical conductivity and long-term reliability. Both interface bodies and coupling components are constructed from passivated stainless steel, while PEI insulators provide stable dielectric characteristics. A silicone rubber gasket on the 2.4 mm side enhances environmental sealing performance. Electrical specifications include insulation resistance ≥ 5 GΩ and power handling up to 19 W.

Designed for demanding RF interconnection requirements, this adapter provides precise impedance matching, low reflection, and mating durability exceeding 500 cycles. It is suitable for microwave test systems, laboratory instrumentation, antenna measurements, communication equipment, and advanced high-frequency applications operating up to 34.5 GHz.
