2.4mm to 3.5mm Male Adapter, DC-34.5 GHz

Order No:AD-Q1PC15A/9XX-9XX
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
2.4mm
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
3.5mm
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
34.5
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

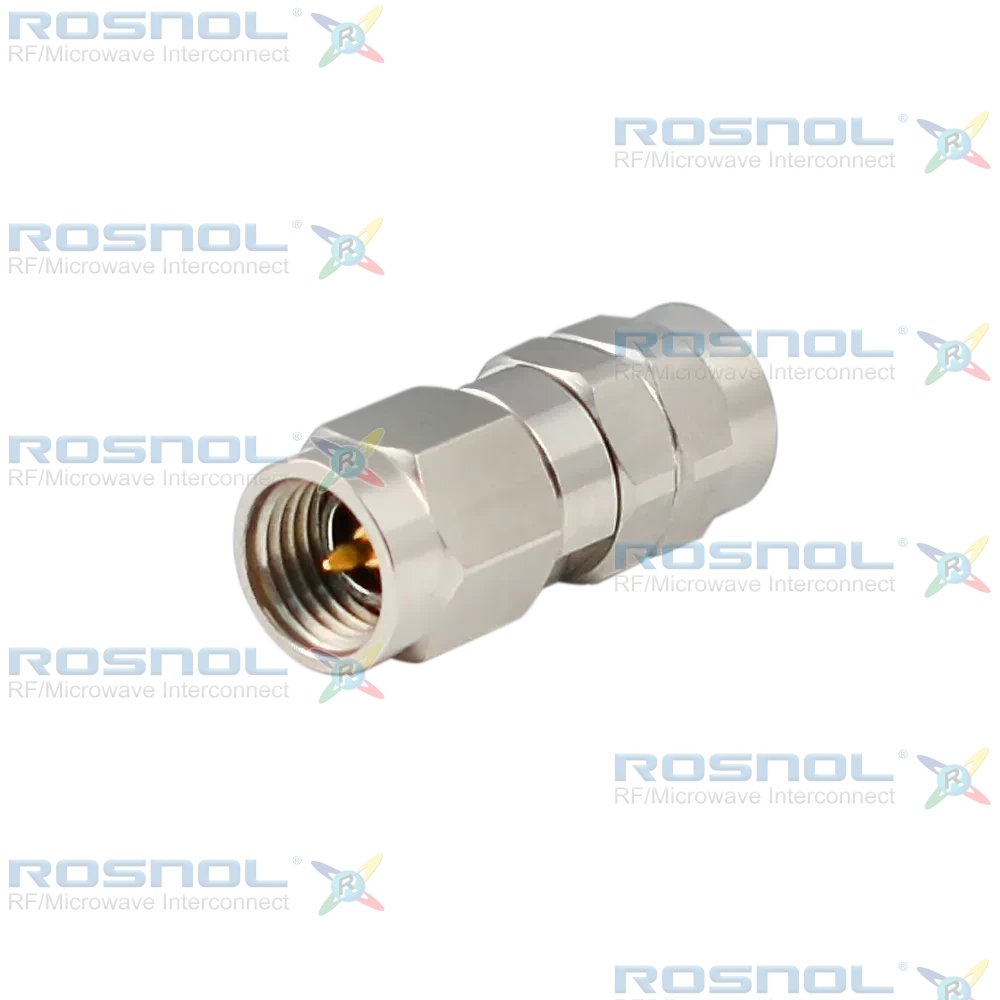

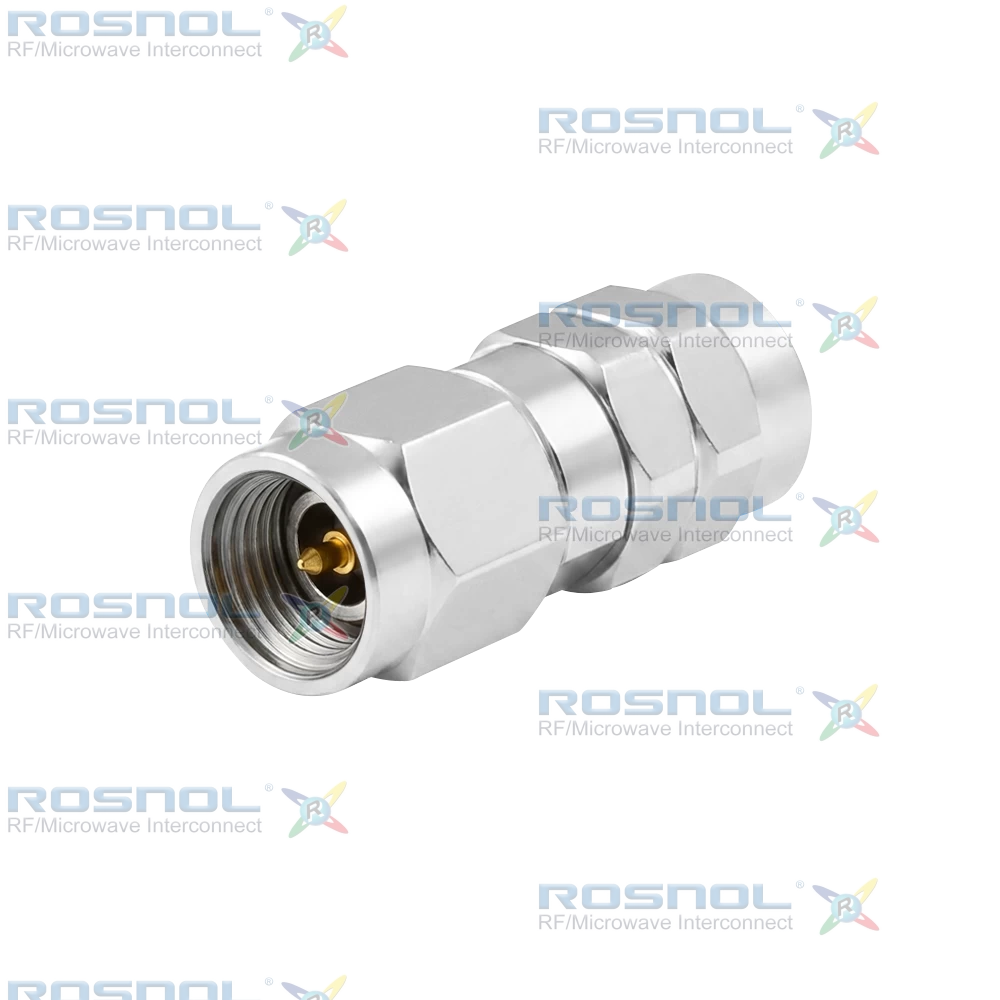

2.4mm Male to 3.5mm Male Straight Adapter, DC-34.5 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

ROSNOL AD-Q1PC15A/9XX-9XX is a precision RF straight adapter designed to connect a 2.4 mm Plug (Male) to a 3.5 mm Plug (Male). Featuring 50 Ω impedance, DC to 34.5 GHz frequency coverage, VSWR ≤ 1.15, insertion loss ≤ 0.05 × √F (GHz) dB, and RF leakage ≥ 100 dB up to 1 GHz, this adapter ensures excellent signal integrity for broadband microwave and RF applications.

The adapter utilizes beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to provide low contact resistance and stable conductivity. Both connector bodies and coupling nuts are manufactured from passivated stainless steel for superior mechanical strength and corrosion resistance. PEI insulators and silicone rubber gaskets ensure reliable dielectric performance and environmental protection. The adapter also offers insulation resistance ≥ 5 GΩ and supports over 500 mating cycles.

With precision-machined interfaces, low return loss, and excellent durability, this adapter is ideal for vector network analyzers, calibration systems, RF laboratories, microwave instrumentation, aerospace electronics, and high-frequency test environments requiring accurate interconnection between 2.4 mm and 3.5 mm connector platforms.
