2.4mm to 2.92mm Male Adapter, DC-40 GHz

Order No:AD-Q1K15A/9XX-9XX
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
2.4mm
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
2.92mm
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
40
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

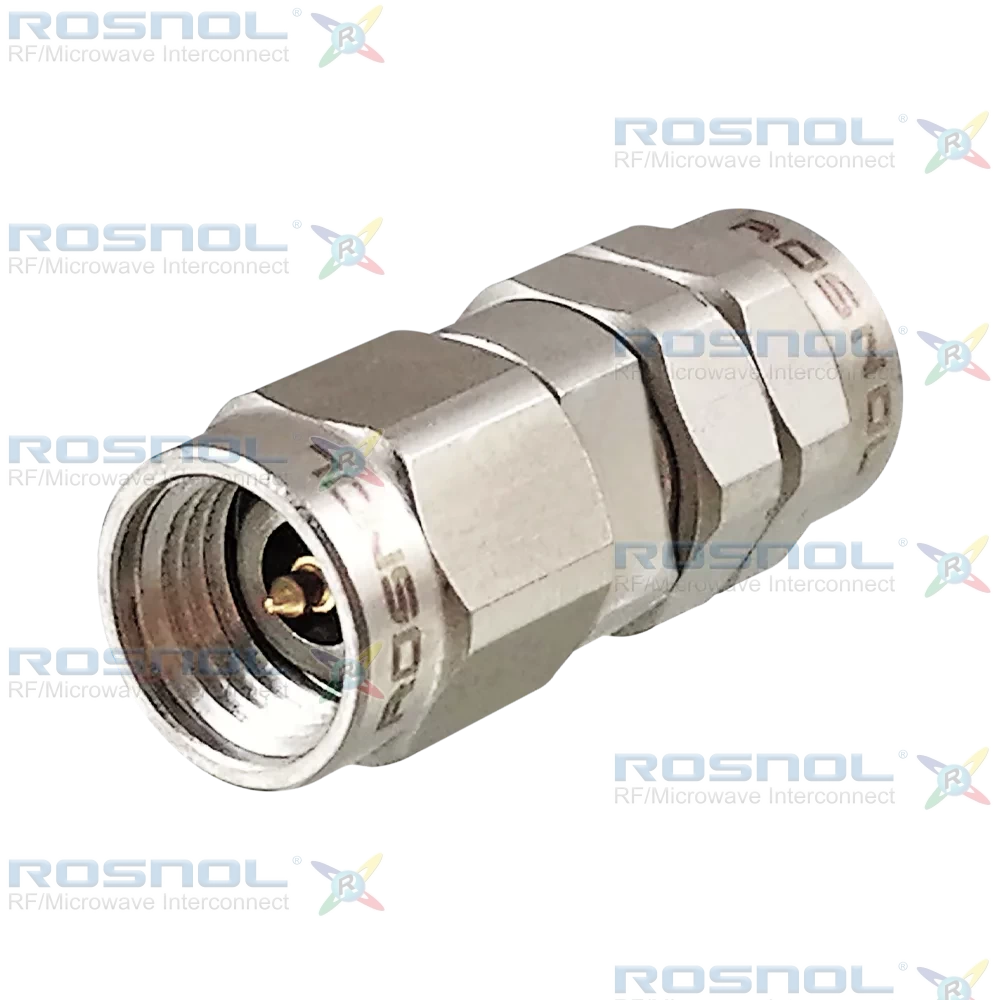

2.4mm Male to 2.92mm Male Straight Adapter, DC-40 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

ROSNOL AD-Q1K15A/9XX-9XX is a precision RF straight adapter designed to connect a 2.4 mm Plug (Male) to a 2.92 mm Plug (Male). Engineered for 50 Ω impedance systems, it supports frequencies from DC to 40 GHz with VSWR ≤ 1.15, insertion loss ≤ 0.05 × √F (GHz) dB, and RF leakage ≥ 100 dB up to 1 GHz, providing excellent signal integrity for broadband microwave and millimeter-wave applications.

The adapter utilizes beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to ensure low contact resistance and stable electrical performance. Both 2.4 mm and 2.92 mm interfaces feature passivated stainless steel bodies and coupling nuts for exceptional mechanical durability and corrosion resistance. PEI insulators and silicone rubber gaskets provide reliable dielectric stability and environmental protection, while insulation resistance is rated at ≥ 5 GΩ.

With precision-machined interfaces, secure screw-lock coupling, and mating durability exceeding 500 cycles, this adapter is suitable for vector network analyzers, calibration systems, microwave instrumentation, RF laboratories, aerospace electronics, and advanced communication equipment requiring accurate interconnection between 2.4 mm and 2.92 mm connector platforms.
