Key Specifications
Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
2.92mm
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
2.4mm
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Snap-On
Frequency, Max (GHz):
40
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Beryllium Copper
Connector 2 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
VSWR, Max:
1.15
Description

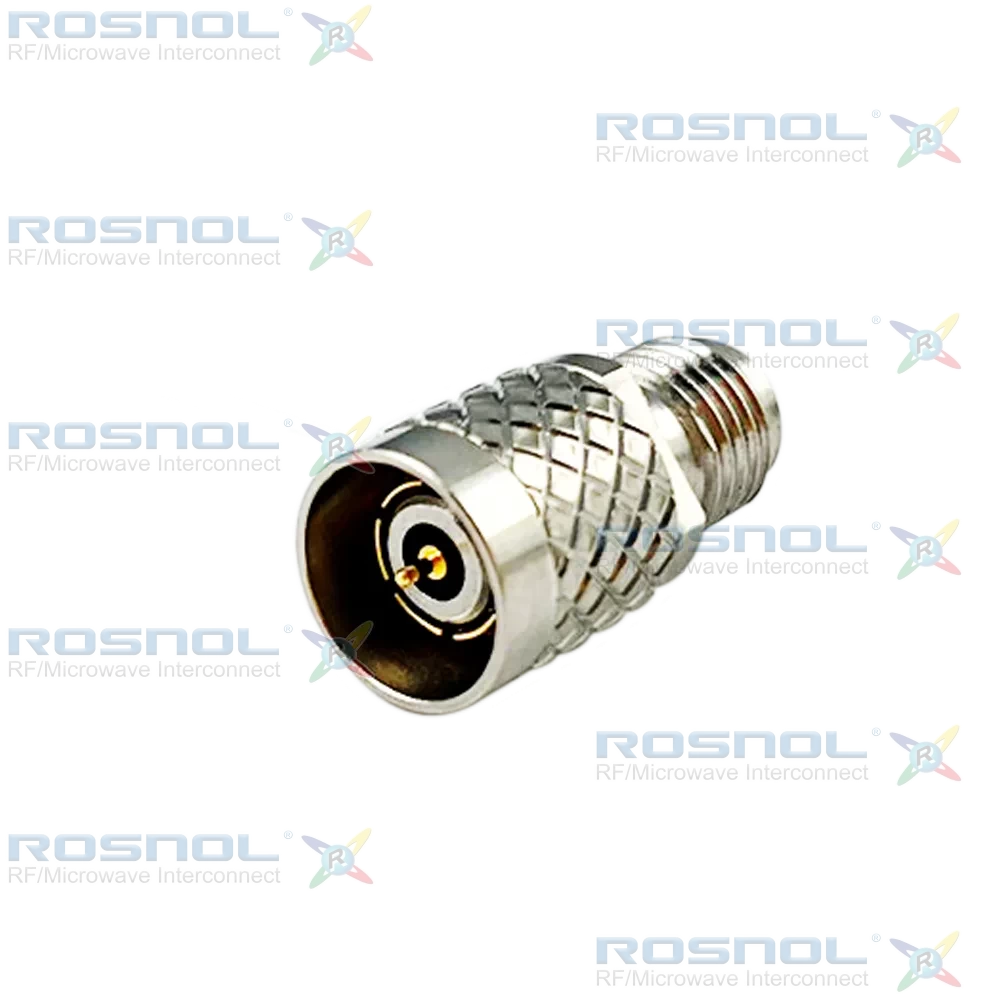

2.4mm Snap-On Plug (Male) to 2.92mm Jack (Female) | Straight Adapter | Snap-Lock & Screw-Lock | Stainless Steel Body
The ROSNOL AD-QQ1K25A/99X-9X is a precision RF adapter designed for DC to 40 GHz operation with 50 Ω impedance. It achieves VSWR ≤ 1.15 and insertion loss ≤ 0.05√F (GHz) dB, ensuring excellent return loss and minimal signal degradation. Insulation resistance is ≥5 GΩ, and the adapter supports ≥500 mating cycles on both sides. Coupling mechanisms include snap-lock for the 2.4mm side and screw-lock for the 2.92mm side, with center contact captivation ≥20 N for secure engagement.Center contacts are beryllium copper with 3 microinch gold plating over an 80 microinch nickel-phosphorus underplating. The 2.92mm body and coupling nut are stainless steel with passivated finish, while the 2.4mm snap-on body is beryllium copper with identical plating. Insulators are PEI for thermal stability. Recommended torque is 0.80–1.10 Nm. The operating temperature range spans −55°C to +165°C, ensuring durability under harsh conditions.
ROSNOL’s precision-engineered RF adapters deliver reliable performance and cost-effective alternatives to leading global brands. All components are manufactured in ISO 9001-certified facilities and comply with RoHS and REACH standards. Customization for materials, plating, and mechanical design is available to meet specialized requirements.
