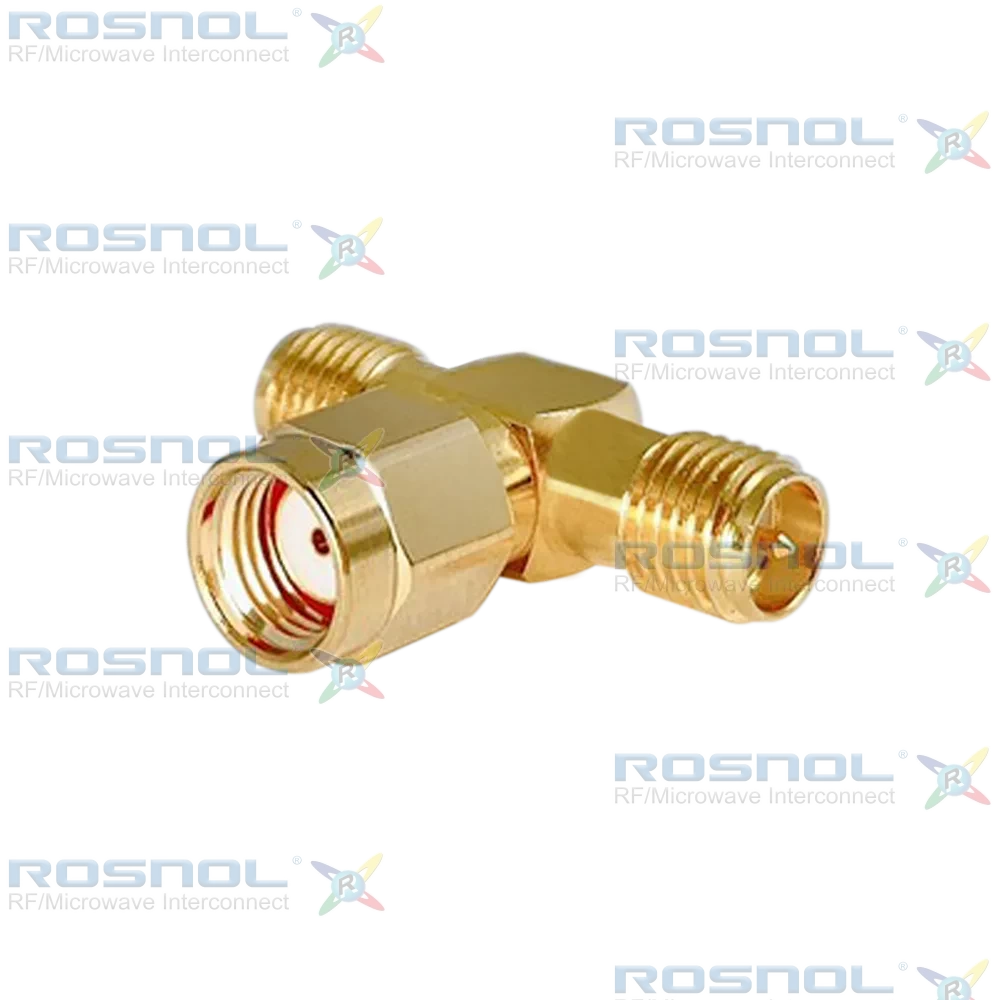

SMA T-Adapter, RP, Male-Female-Female, 12.4 GHz

Order No:ADT-A7A5A75A/11-911-11
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
SMA
Connector 1 Gender:
R/P Plug (Male)
Connector 2 Series:
SMA
Connector 2 Gender:
R/P Jack (Female)
Connector 3 Series:
SMA
Connector 3 Gender:
R/P Jack (Female)
Impedance (Ohm):
50
Body Style:
T-Adapter
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Connector 3 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
12.4
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 3 Body Material:
Brass
Connector 3 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
VSWR, Max:
N/A

Description

SMA T-Adapter, RP Male to RP Female to RP Female, DC-12.4 GHz, 50 Ω Impedance.

ROSNOL ADT-A7A5A75A/11-911-11 is a high-performance SMA Reverse Polarity (RP-SMA) T-Adapter configured with one RP-SMA Plug (Male) and two RP-SMA Jack (Female) connectors. Designed for 50 Ω RF systems operating from DC to 12.4 GHz, this adapter enables efficient signal routing and interconnection in wireless communication, antenna networks, and RF test environments.

Engineered for dependable RF performance, the adapter features low contact resistance, 1000 Vrms test voltage, 480 Vrms working voltage, power handling up to 200 W at 2 GHz, and RF leakage greater than 100 dB. The female center contact utilizes beryllium copper while the male contact is brass, both with gold plating over non-magnetic nickel-phosphorus underplating. Gold-plated brass bodies, coupling nuts, PTFE insulators, and silicone rubber gaskets provide excellent conductivity, durability, and environmental resistance.

With its precision RP-SMA interface and robust screw-lock design, this RP-SMA Female Jack to RP-SMA Male Plug T-Adapter ensures secure connectivity and stable signal transmission. Typical applications include wireless LAN equipment, RF measurement systems, communication infrastructure, IoT devices, antenna installations, and microwave assemblies.
