Key Specifications
Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
SMA
Connector 1 Gender:
R/P Jack (Female)
Connector 2 Series:
SMA
Connector 2 Gender:
R/P Plug (Male)
Connector 3 Series (T-Adapter):
SMA
Connector 3 Gender (T-Adapter):
R/P Jack (Female)
Impedance (Ohm):
50
Body Style:
T-Adapter
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Connector 3 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
12.4
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 3 Body Material:
Brass
Connector 3 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
VSWR, Max:
N/A
Description

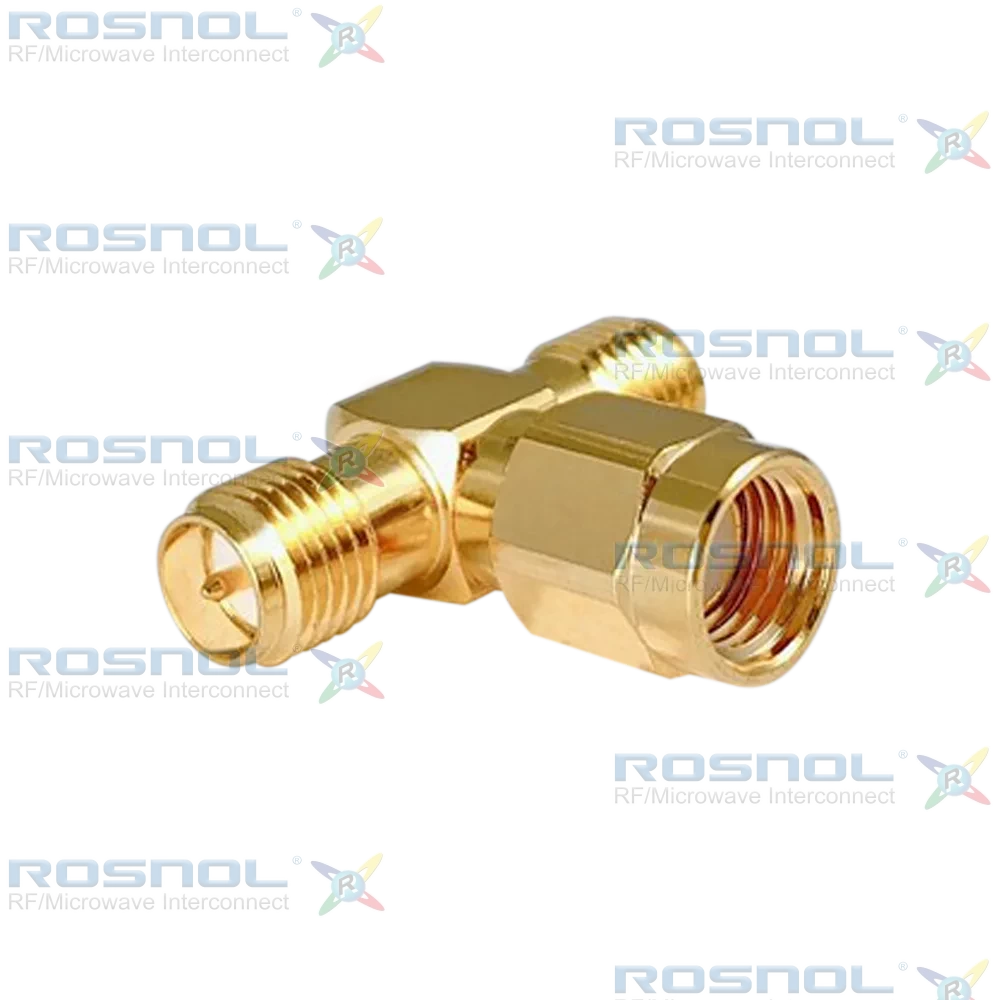

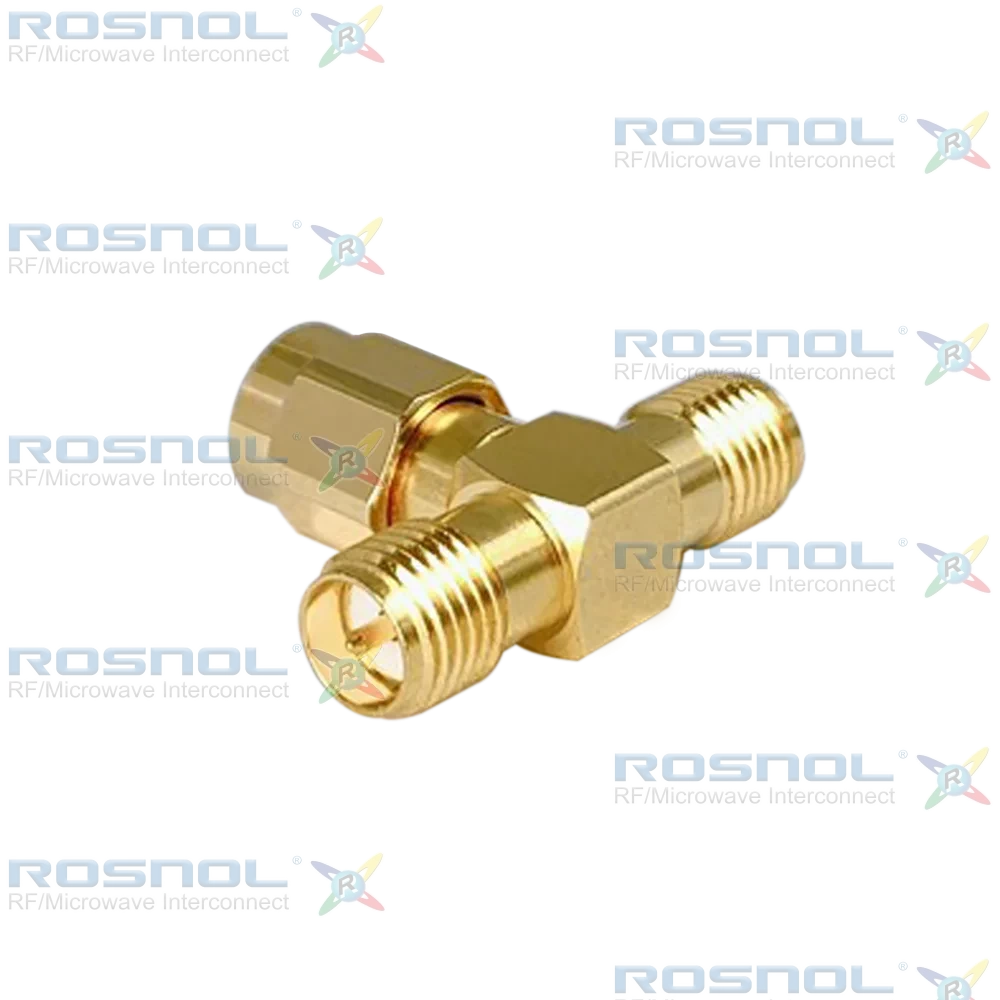

SMA Reverse-Polarity Plug (Male) to SMA Reverse-Polarity Jack (Female) T-Adapter | Screw-Lock | Brass Body
The ROSNOL ADT-A7A5A75A/11-911-11 is a precision SMA reverse-polarity T-adapter featuring one male plug and two female jacks for DC to 12.4 GHz operation at 50 Ω impedance. It supports power handling up to 200 W at 2 GHz, insulation resistance ≤5 mΩ, center contact resistance ≤3 mΩ, and outer contact resistance ≤2 mΩ. Test voltage is 1000 V rms with a working voltage of 480 V rms. RF leakage is rated at ≥100 dB up to 1 GHz. The screw-lock coupling mechanism ensures secure engagement with ≥500 mating cycles and recommended torque of 0.8–1.1 Nm.Piece parts include beryllium copper and brass center contacts with gold plating over non-magnetic nickel-phosphorus underplating, brass bodies with gold plating, PTFE insulators, silicone rubber gaskets, and brass coupling nuts with gold plating. This construction provides corrosion resistance and thermal stability across −65°C to +155°C.
