BNC Male T-Adapter, DC-10 GHz

Order No:ADT-B1B1B15A/144-144-144
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
BNC
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
BNC
Connector 2 Gender:
Plug (Male)
Connector 3 Series:
BNC
Connector 3 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
T-Adapter
Panel Mount:
None
Connector 1 Connection Method:
Bayonet
Connector 2 Connection Method:
Bayonet
Connector 3 Connection Method:
Bayonet
Frequency, Max (GHz):
10
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
Connector 3 Body Material:
Brass
Connector 3 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
N/A

Description

BNC Male to Male to Male T-Adaptor, DC-10 GHz, 50 Ω Impedance.

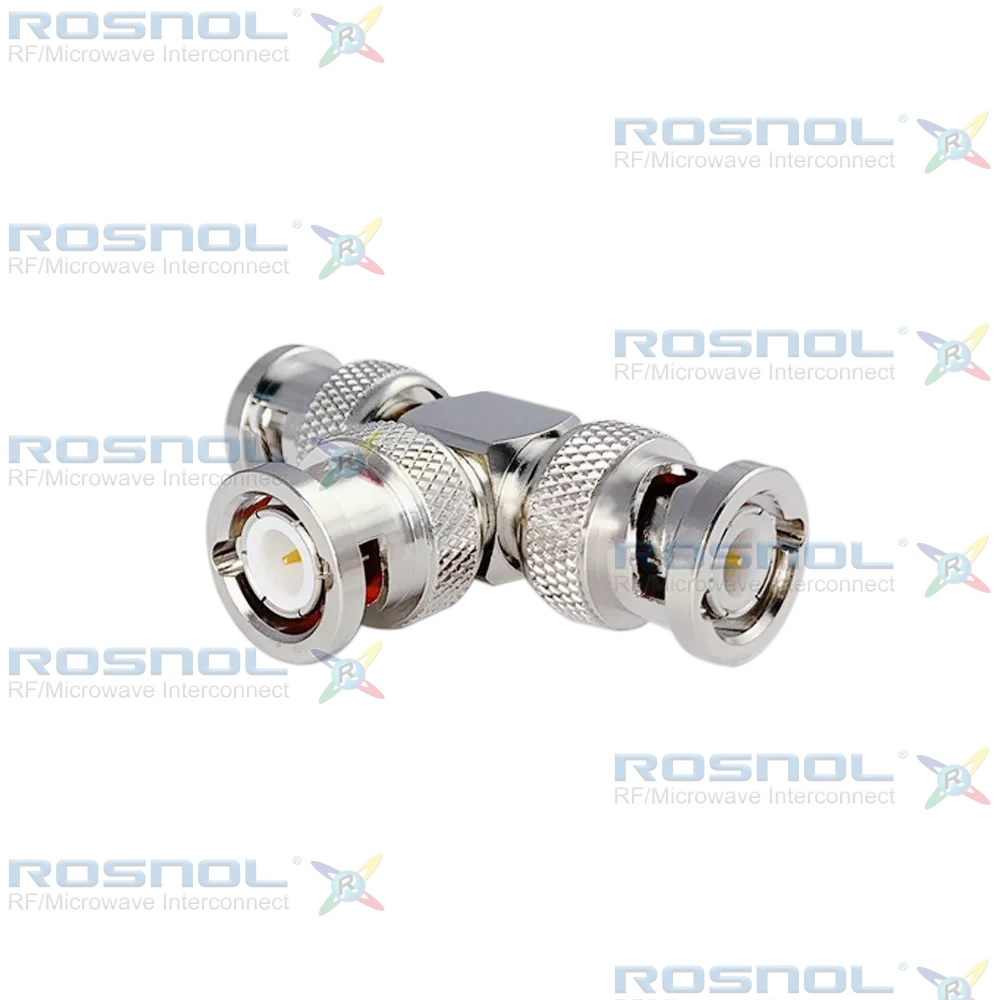

ROSNOL ADT-B1B1B15A/144-144-144 is a high-performance BNC T-Adapter featuring three BNC Plug (Male) connectors in a 3-port configuration. Designed for 50 Ω RF systems, this adapter supports frequencies from DC to 10 GHz, providing reliable signal distribution and interconnection for RF instrumentation, communications equipment, and test environments.

The adapter offers excellent electrical characteristics, including center contact resistance ≤ 1.5 mΩ, outer contact resistance ≤ 1 mΩ, 1500 Vrms test voltage, 400 Vrms working voltage, and power handling up to 80 W at 2 GHz. The center contacts are manufactured from brass with gold plating over non-magnetic nickel-phosphorus underplating, while the brass body and coupling components feature copper-tin-zinc alloy plating. PTFE insulators and silicone rubber gaskets provide stable dielectric performance and environmental durability.

Its robust bayonet-lock interface enables quick connection and secure retention in demanding RF applications. This BNC Male Plug T-Adapter is ideal for RF test benches, signal distribution networks, telecommunications systems, measurement equipment, and laboratory environments requiring dependable 50 Ω performance.
