Key Specifications
Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
BNC
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
BNC
Connector 2 Gender:
Jack (Female)
Connector 3 Series (T-Adapter):
BNC
Connector 3 Gender (T-Adapter):
Jack (Female)
Impedance (Ohm):
50
Body Style:
T-Adapter
Panel Mount:
None
Connector 1 Connection Method:
Bayonet
Connector 2 Connection Method:
Bayonet
Connector 3 Connection Method:
Bayonet
Frequency, Max (GHz):
10
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
Connector 3 Body Material:
Brass
Connector 3 Body Plating:
Nickel
VSWR, Max:
N/A
Description

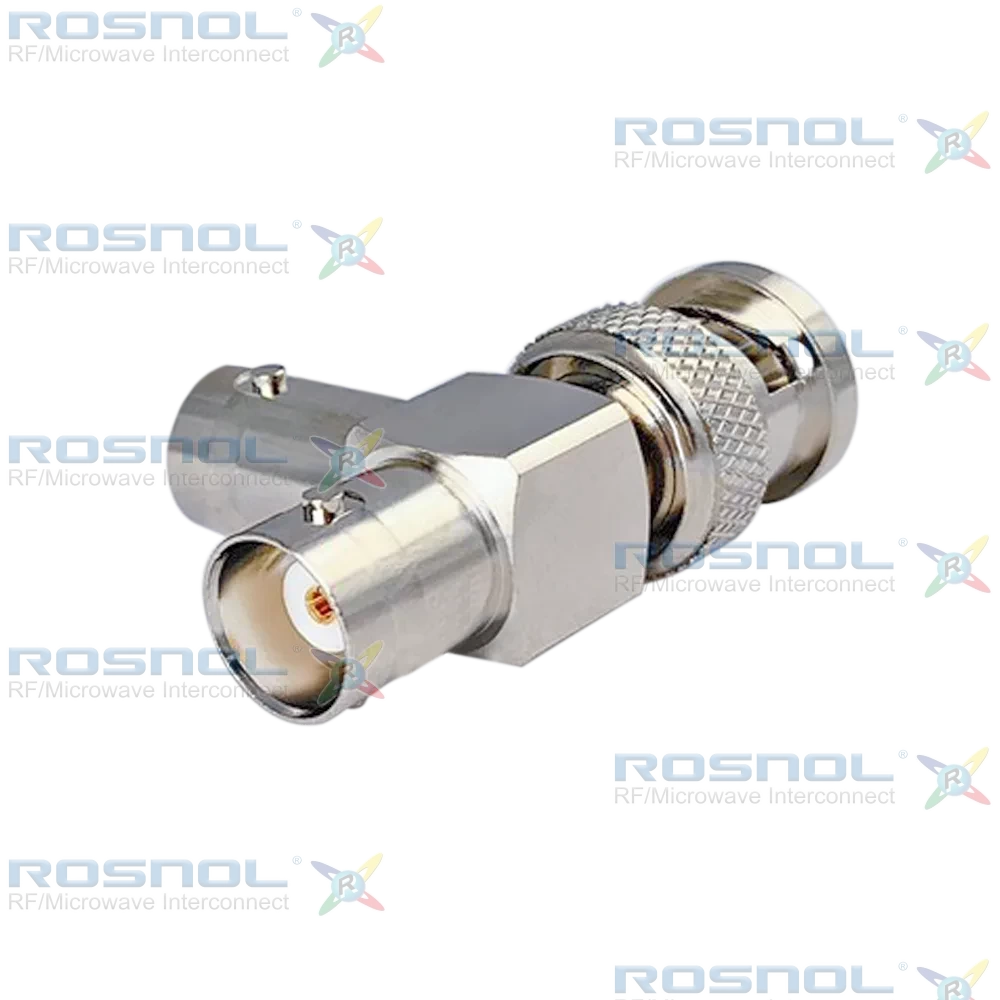

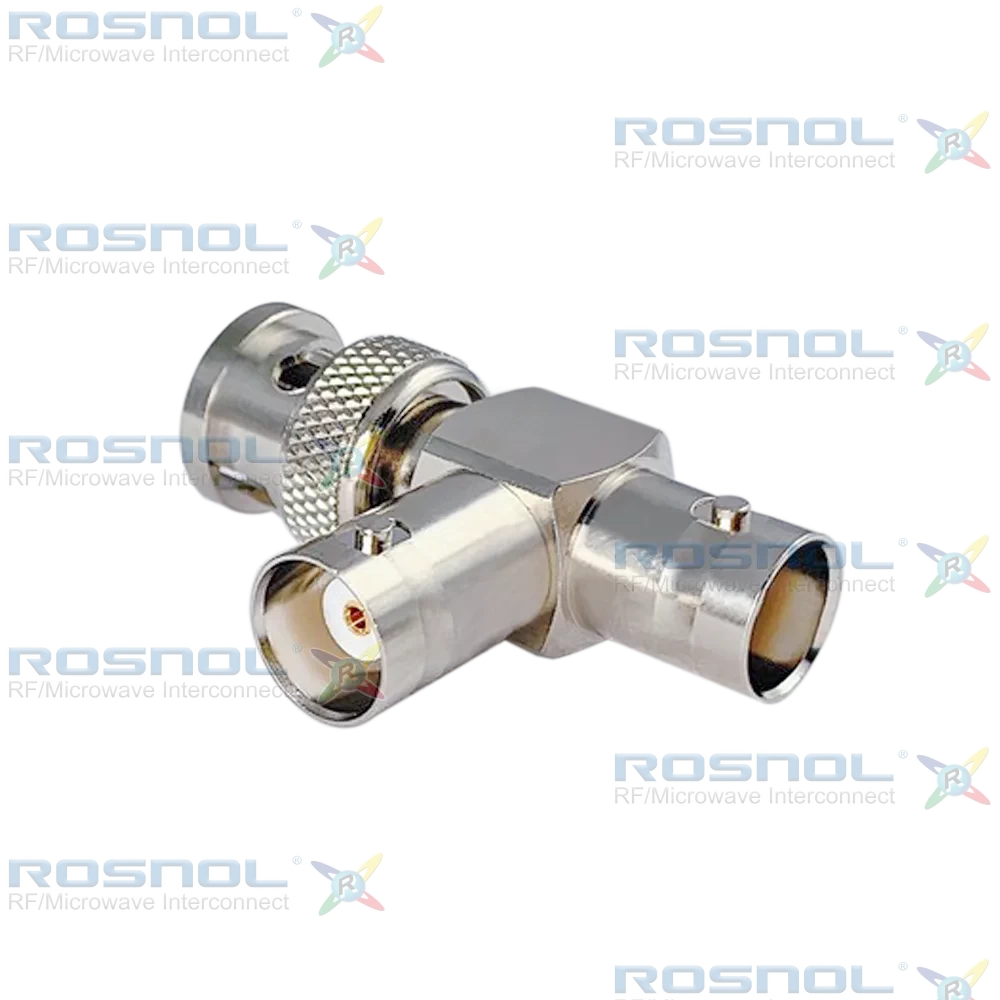

BNC Plug (Male) to BNC Jack (Female) to BNC Jack (Female) T-Adapter | Bayonet-Lock | Brass Body
The ROSNOL ADT-B1B2B25A/133-13-13 is a precision BNC T-adapter featuring one male plug and two female jacks for DC to 10 GHz operation at 50 Ω impedance. It supports power handling up to 80 W at 2 GHz, insulation resistance ≤5 mΩ, center contact resistance ≤1.5 mΩ, and outer contact resistance ≤1 mΩ. Test voltage is 1500 V rms with a working voltage of 400 V rms. The bayonet-lock coupling mechanism ensures secure engagement with ≥500 mating cycles for dependable mechanical integrity.Piece parts include brass center contacts with gold plating over non-magnetic nickel-phosphorus underplating, brass bodies with nickel finish, PTFE insulators, silicone rubber gaskets, and brass coupling nuts with nickel plating. This construction provides corrosion resistance and thermal stability across −65°C to +165°C.
