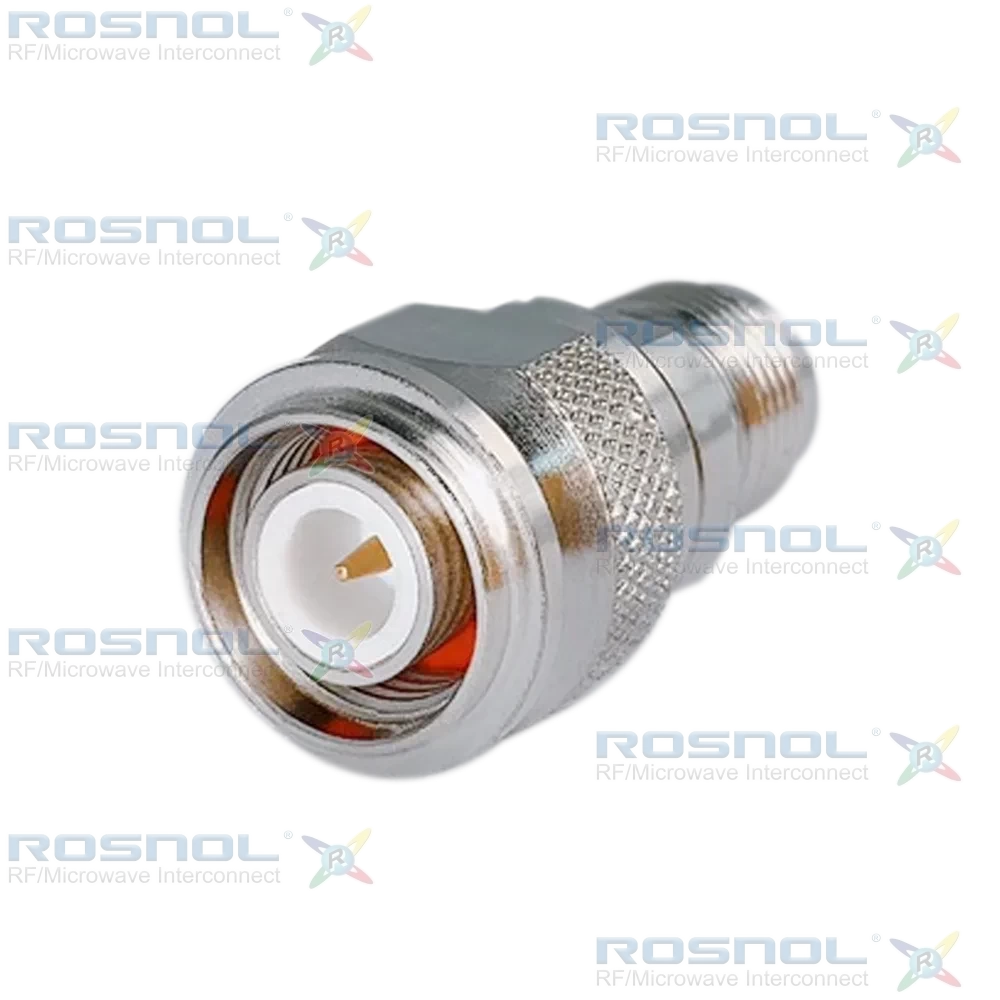

TNC Female to TNC Male Straight RF Adapter, DC-11 GHz, VSWR ≤ 1.25, 50 Ω Impedance.
ROSNOL AD-T1T25A/H44-H4 is a TNC Plug (Male) to TNC Jack (Female) straight RF adapter designed for 50 Ω RF and microwave interconnection systems operating from DC to 11 GHz. With VSWR ≤ 1.25 and low insertion loss, this adapter provides reliable signal transmission for wireless communication equipment, RF instrumentation, antenna systems, and test applications.
The adapter is constructed with phosphor bronze center contacts featuring 3 µinch gold plating over 80 µinch non-magnetic nickel-phosphorus underplating. The brass body and coupling nut utilize copper-tin-zinc alloy plating, while PTFE insulation and silicone rubber gaskets enhance electrical stability and environmental durability. Key RF characteristics include insertion loss ≤ 0.05 × √F (GHz) dB, center contact resistance ≤ 1.5 mΩ, and power handling up to 80 W at 2 GHz.
Designed with a secure screw-lock coupling mechanism and durability exceeding 500 mating cycles, this TNC male-to-female (plug-to-jack) adapter is suitable for RF communication networks, microwave assemblies, laboratory measurement equipment, and industrial electronics requiring dependable high-frequency connectivity.
