Precision TNC Male to Female Adapter

Order No:AD-PCTQ1PCT25A/9XX-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
In-Series
Connector 1 Series:
Precision TNC
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
Precision TNC
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Snap-On
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.25

Description

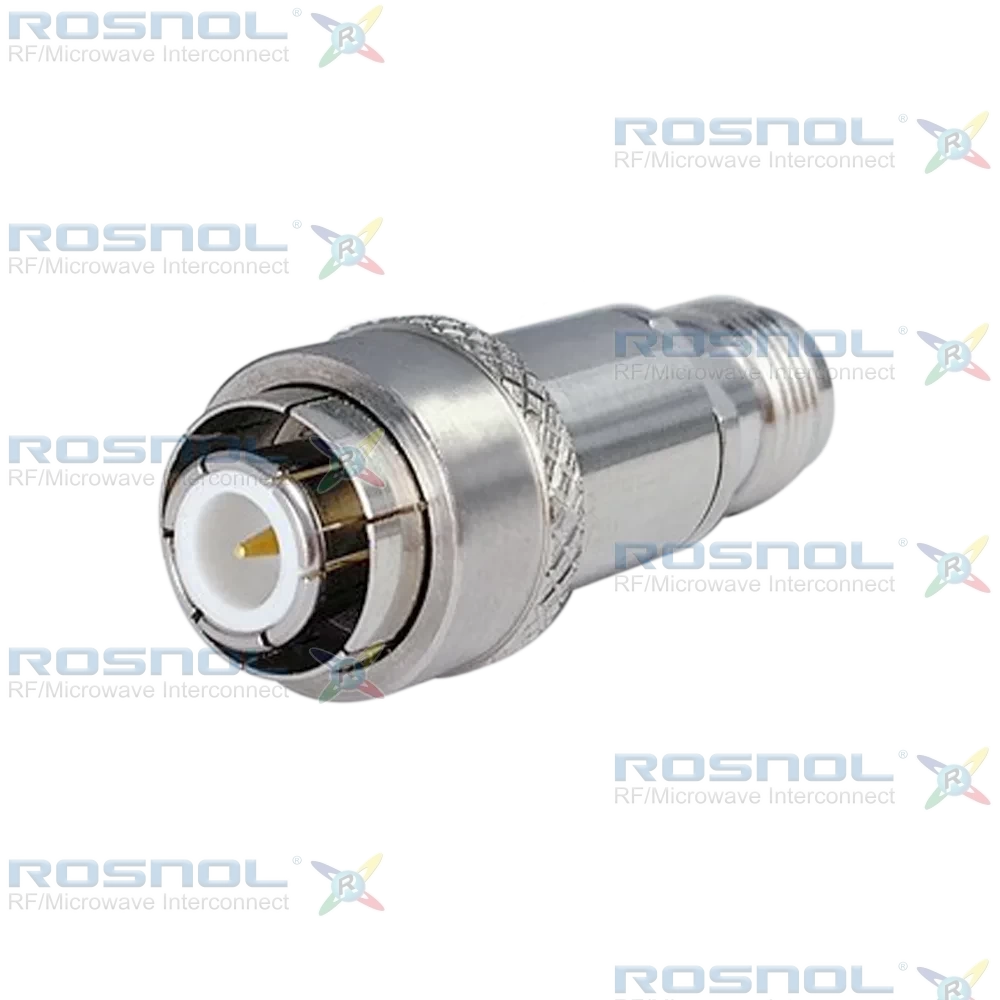

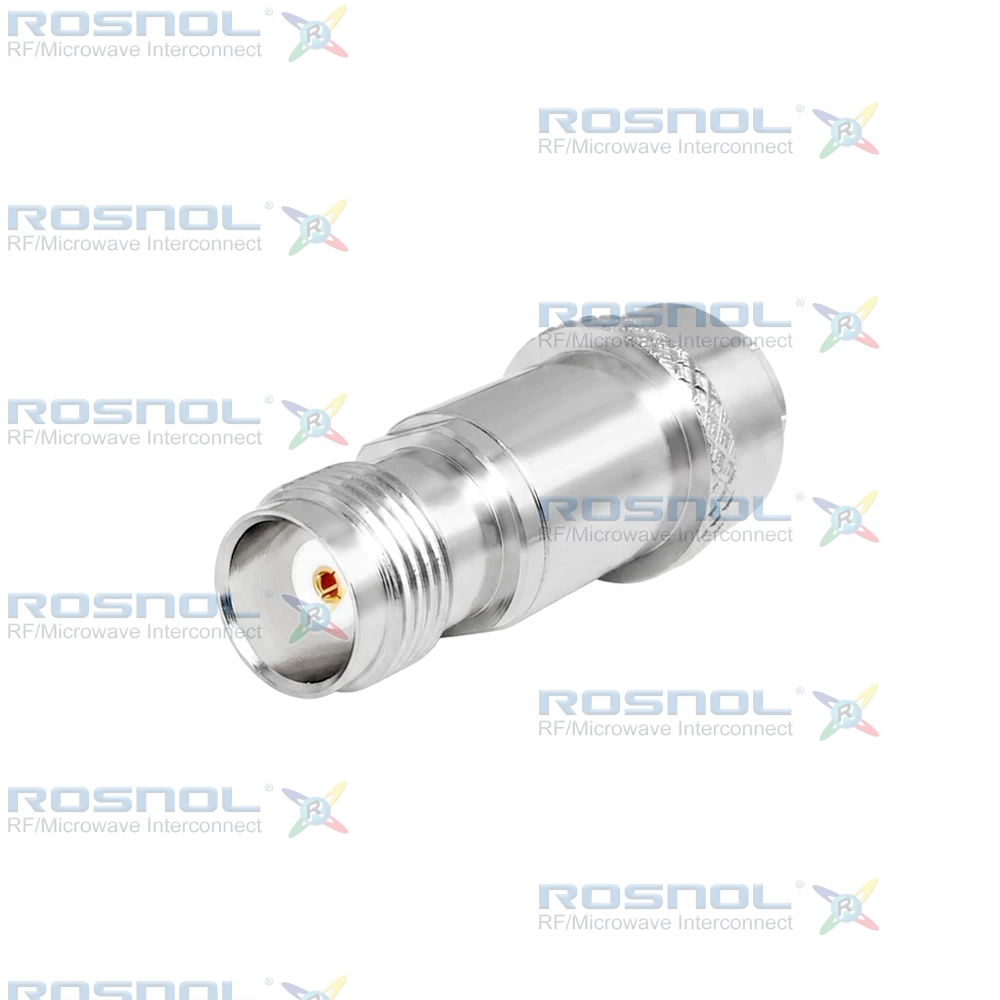

Precision TNC Snap-On Male to Precision TNC Female Straight Adapter, DC-18 GHz VSWR ≤ 1.25, 50 Ω Impedance.

ROSNOL AD-PCTQ1PCT25A/9XX-9X is a Precision TNC Plug (Male, Snap-On) to Precision TNC Jack (Female) RF adapter designed for 50 Ω systems operating from DC to 18 GHz. With VSWR ≤ 1.25 and low insertion loss, this adapter provides reliable signal transmission for high-frequency RF, microwave, and test applications.

The adapter features beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to ensure excellent conductivity and long-term contact stability. The body is manufactured from passivated stainless steel, while PTFE insulators provide superior dielectric performance. Key RF characteristics include 50 Ω impedance, DC-18 GHz frequency range, and low return loss for maintaining signal integrity.

Combining a snap-on Precision TNC Plug (Male) interface with a screw-lock Precision TNC Jack (Female) interface, this adapter supports over 500 mating cycles and offers flexible connectivity in mixed RF systems. It is suitable for RF instrumentation, microwave assemblies, communication equipment, laboratory testing, and precision measurement environments.
