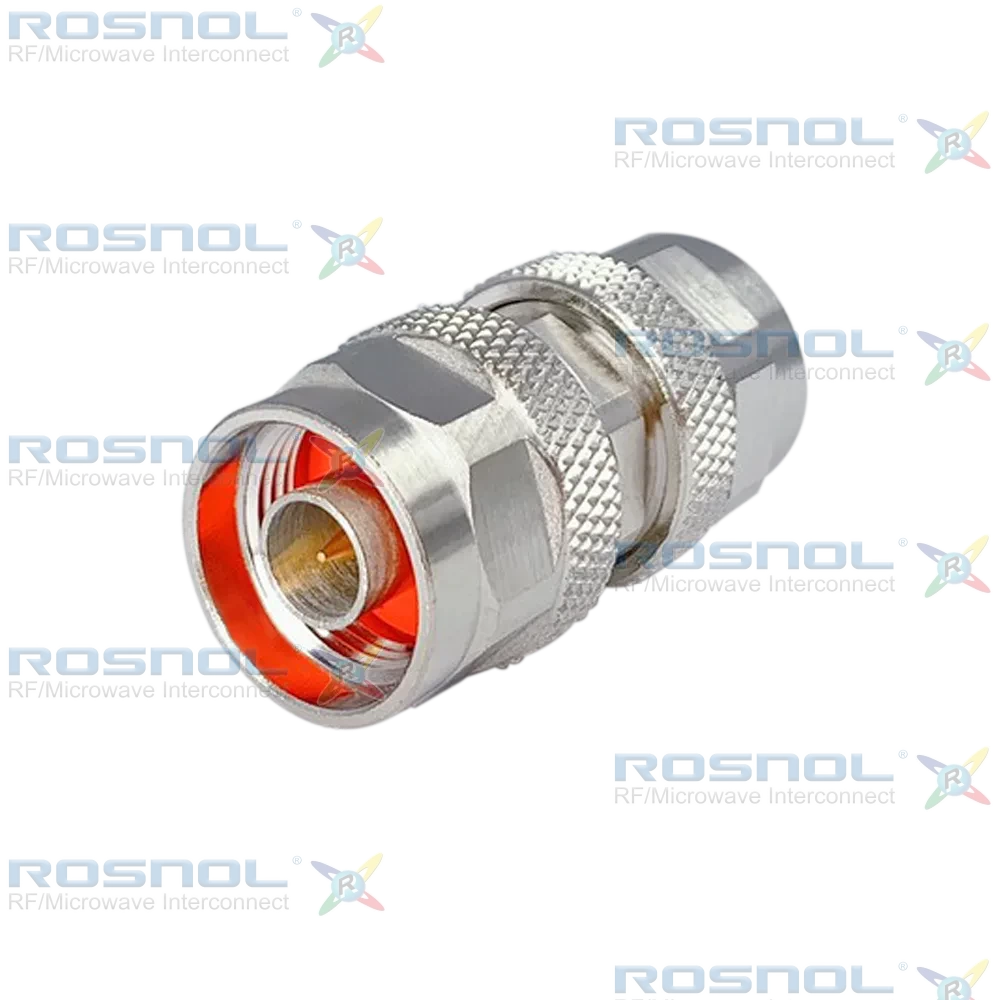

Precision N Male Adapter, DC-18 GHz VSWR 1.15

Order No:AD-PCN1PCN15B/944-944
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
In-Series
Connector 1 Series:
Precision N
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
Precision N
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
1.15

Description

Precision N Male to Precision N Male Straight Adapter, 50 Ω Impedance, DC-18 GHz, VSWR ≤ 1.15.

ROSNOL AD-PCN1PCN15B/944-944 is a Precision N Plug (Male) to Precision N Plug (Male) straight RF adapter engineered for high-performance 50 Ω transmission from DC to 18 GHz. With VSWR ≤ 1.15 and low insertion loss, it supports reliable signal transfer in RF, microwave, and test environments.

The adapter incorporates beryllium copper center contacts with 3 μinch gold plating over non-magnetic nickel-phosphorus underplating. Its body and coupling nut are constructed from brass with copper-tin-zinc alloy plating, while the insulator material is PS. Electrical specifications include insulation resistance ≥ 5 GΩ, contact resistance ≤ 1.0 mΩ, RF leakage ≥ 90 dB up to 1 GHz, test voltage 2500 Vrms, and working voltage 1000 Vrms.

The screw-lock coupling mechanism ensures secure connection stability and supports more than 500 mating cycles. This adapter is well suited for RF test benches, communication networks, microwave assemblies, instrumentation systems, and other applications requiring dependable high-frequency interconnection performance.
