7/16 Male Adapter, DC-7.5 GHz, VSWR 1.15

Order No:AD-D1D15A/144-144
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
7/16
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
7/16
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
7.5
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
1.15

Description

7/16 Male to 7/16 Male Straight Adapter, 50 Ohm Impedance, DC-7.5 GHz, VSWR ≤ 1.15.

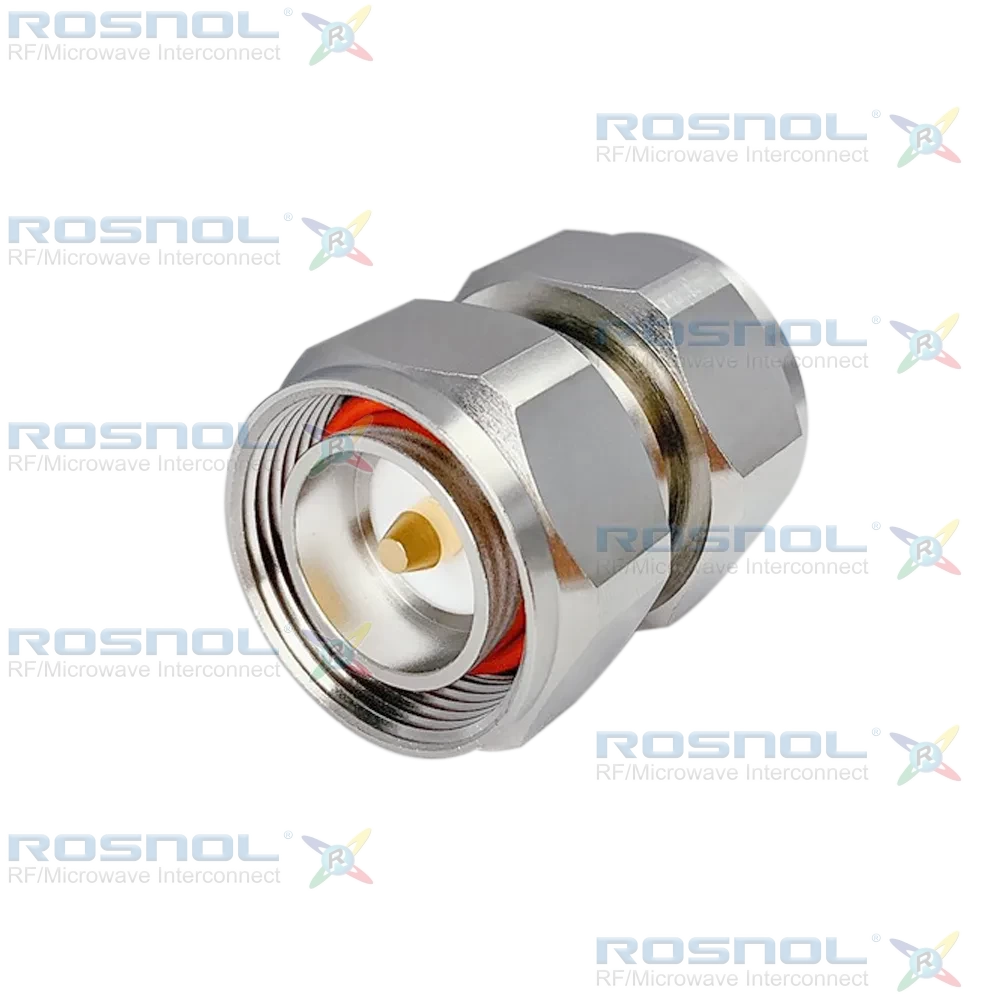

ROSNOL AD-D1D15A/144-144 is a Male-to-Male straight RF adapter configured with dual 7/16 Plug (Male) interfaces. Supporting frequencies from DC to 7.5 GHz with 50 Ω impedance and VSWR ≤ 1.15, this adapter provides low-reflection signal transmission and high-power RF performance for communication infrastructure and microwave systems.

The adapter features brass center contacts with gold plating over non-magnetic nickel-phosphorus underplating, combined with a brass body and coupling nut finished in copper-tin-zinc alloy plating. PTFE insulation and silicone rubber gaskets ensure stable operation in demanding environments. Electrical performance includes RF leakage ≥ 128 dB, insulation resistance ≥ 10 GΩ, 500 Vrms working voltage, and power handling up to 1800 W at 1 GHz and 800 W at 4 GHz.

Designed with a durable screw-lock interface and minimum 500 mating cycles, the AD-D1D15A/144-144 is ideal for wireless base stations, RF distribution systems, antenna networks, telecom infrastructure, and 7/16 Male-to-Male adapter applications.
