Key Specifications
Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
SMA
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
SMA
Connector 2 Gender:
Plug (Male)
Body Style:
Right Angle
Impedance (Ohm):
50
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15
Description

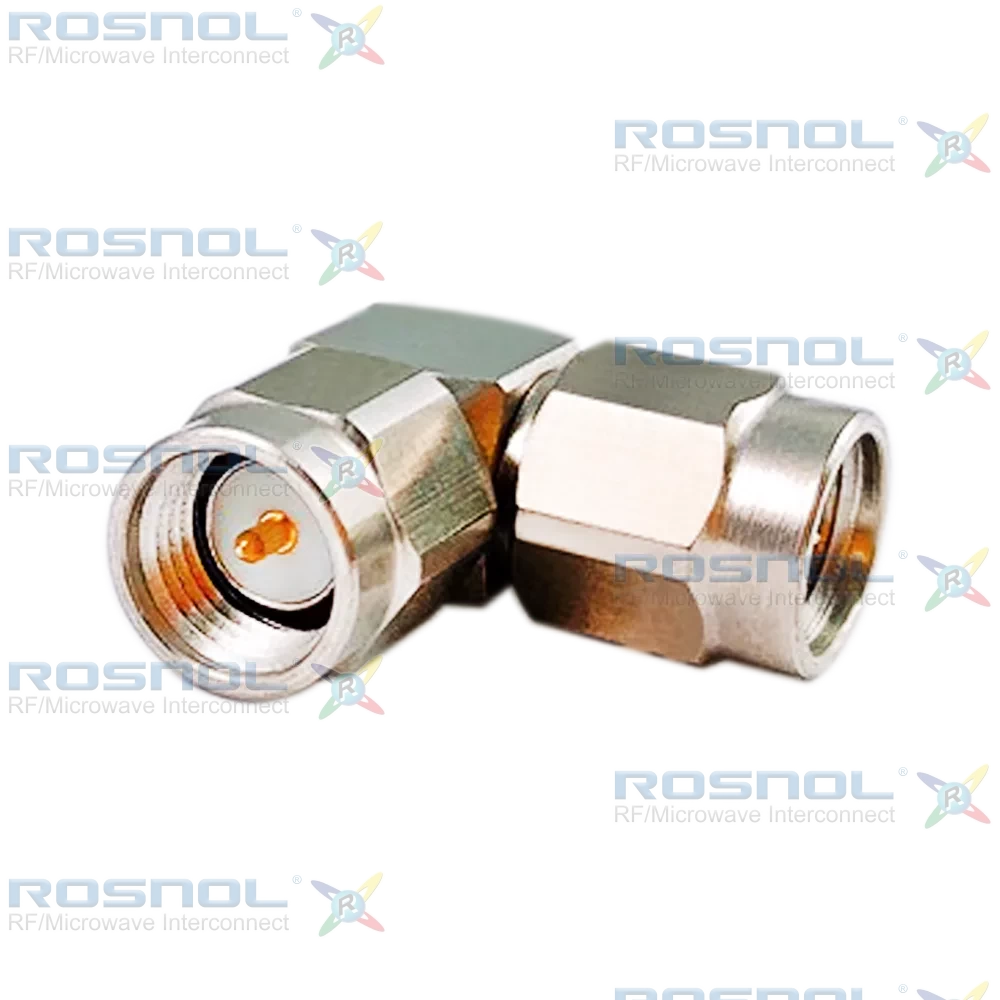

SMA to SMA L-adapter | Screw-lock | Stainless Steel Body
The ROSNOL ADL-A1A15A/9XX-9XX is a right-angle L-adapter featuring SMA plug (male) to SMA plug (male) configuration, supporting frequencies up to 18 GHz with a maximum VSWR of 1.15. It offers low insertion loss (≤ 0.03 × √F GHz dB), high insulation resistance (≥ 5 GΩ), and RF leakage suppression ≥ 100 dB. The adapter is rated for over 500 mating cycles and utilizes screw-lock coupling with a recommended torque of 0.8–1.1 Nm.Constructed with stainless steel bodies and beryllium copper center contacts, the adapter is gold-plated with non-magnetic nickel-phosphorus underplating. PTFE insulators and silicone rubber gaskets ensure mechanical stability and environmental protection. The product is RoHS compliant and operates reliably from -65°C to +155°C.
ROSNOL’s precision-engineered RF adapters deliver reliable performance across a wide range of RF and microwave systems. Designed to meet the stringent demands of high-frequency signal transmission, ROSNOL adapters offer a cost-effective alternative to products from leading European and American brands. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring global environmental and safety standards. Customization services for materials, plating, and mechanical design are available to support specialized interconnect requirements.
