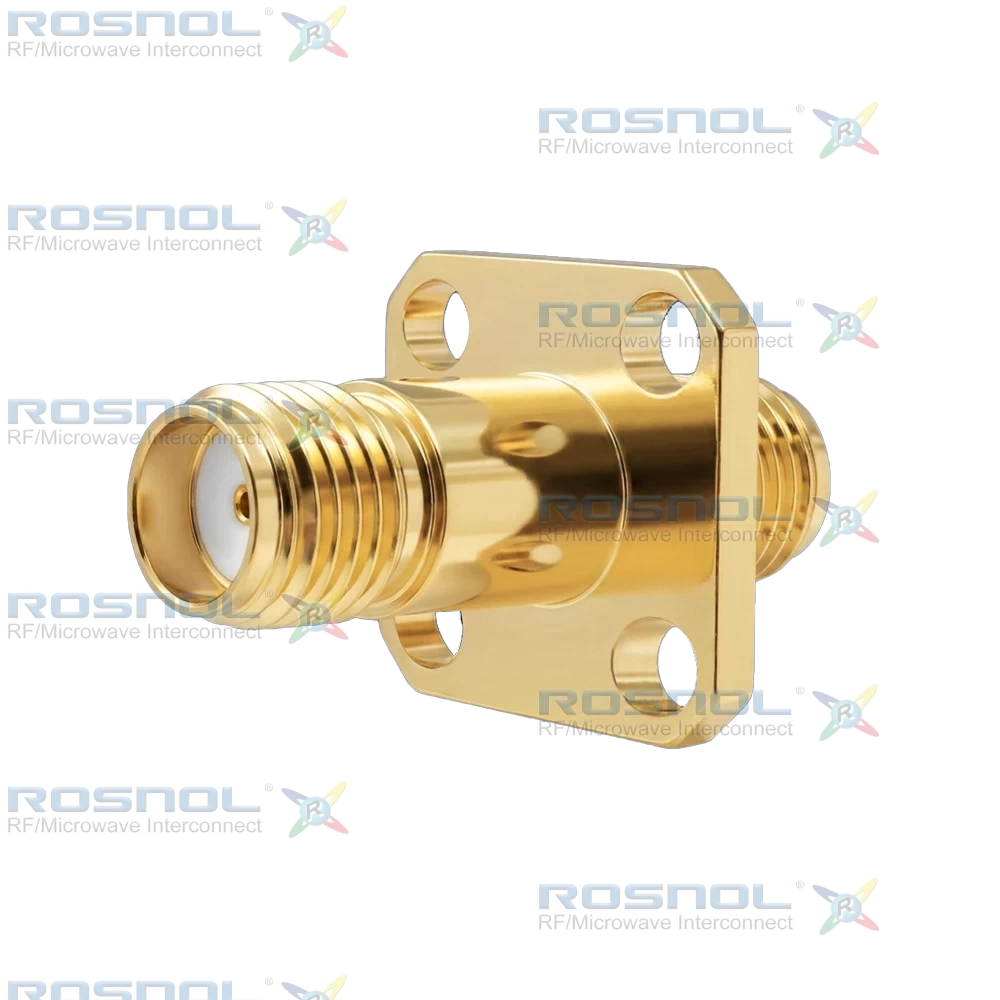

SMA Female Adapter, 4 Hole Panel, DC-18 GHz

Order No:AD-A2A25B-PF/91-91
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
4 Hole Flange
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
VSWR, Max:
1.15

Description

SMA Jack (Female) to SMA Jack (Female) 4 Hole Flange Mount Adapter, DC-18 GHz, VSWR ≤ 1.15, 50 Ohm Impedance.

ROSNOL AD-A2A25B-PF/91-91 is a high-performance 50 Ω SMA Jack (Female) to SMA Jack (Female) RF adapter with a 4-hole flange mounting configuration. Designed for DC to 18 GHz operation, it achieves VSWR ≤ 1.15, low insertion loss, and RF leakage ≥ 100 dB up to 1 GHz, ensuring efficient signal transmission in RF and microwave systems.

The adapter features beryllium copper center contacts and gold-plated brass bodies with non-magnetic nickel-phosphorus underplating. This construction enhances conductivity, mating durability, and corrosion resistance. PTFE insulators maintain consistent dielectric characteristics, while the precision-machined flange structure supports secure installation and reliable electrical performance.

Widely used in RF test equipment, telecommunications infrastructure, antenna networks, and microwave assemblies, this adapter provides stable impedance matching, low reflection, and dependable long-term operation for demanding high-frequency applications.
