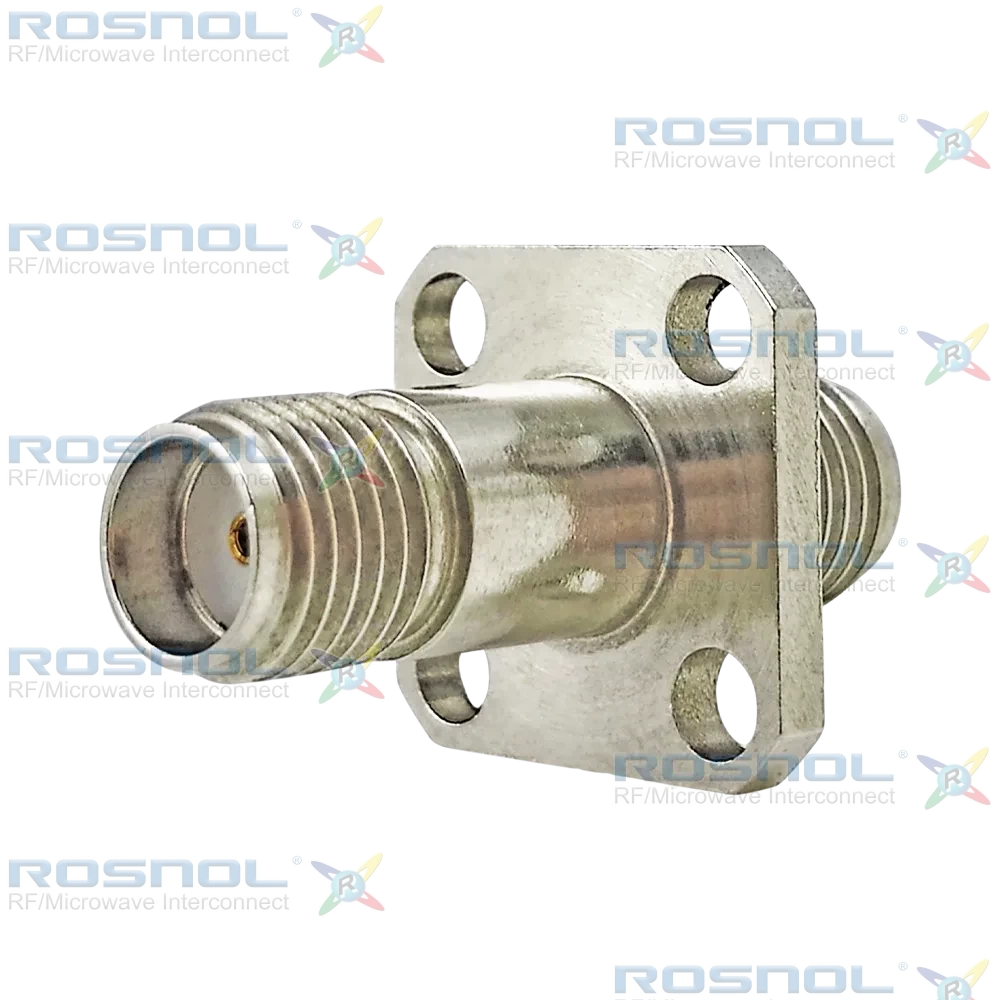

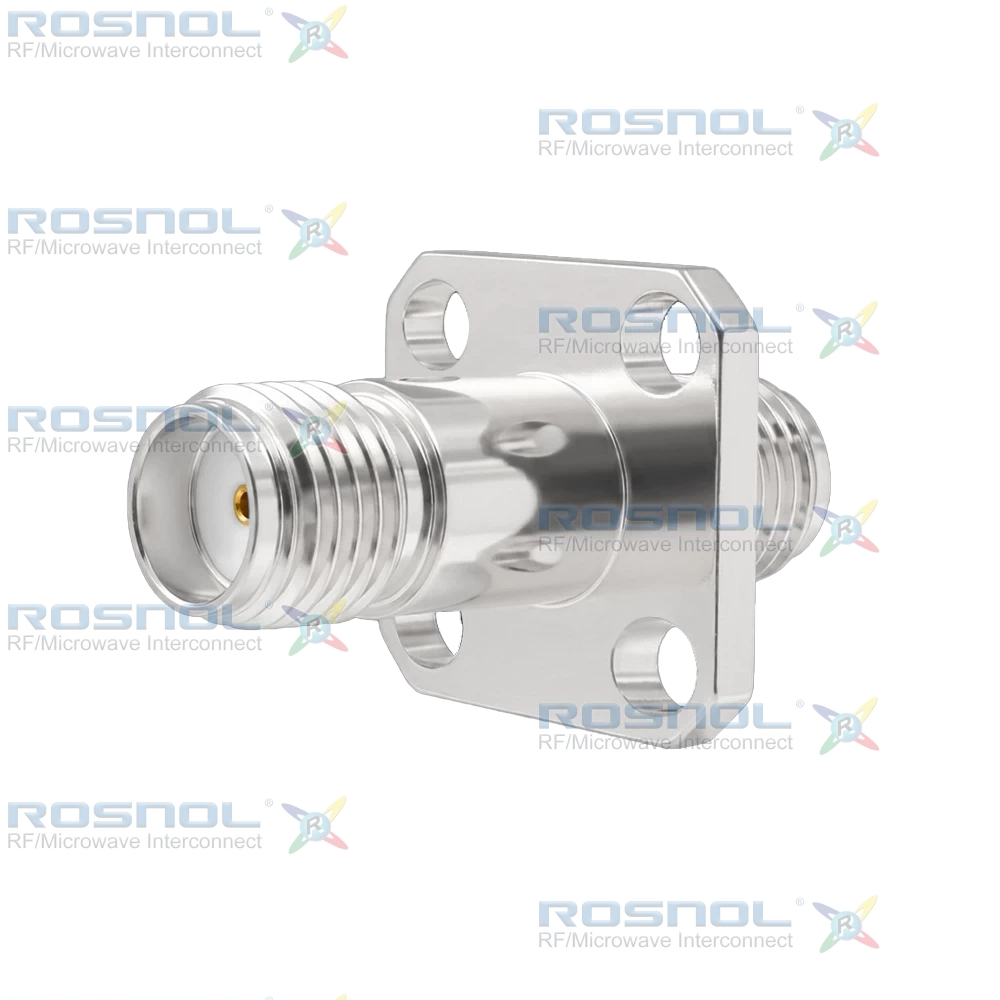

SMA Female Adapter, 4 Hole Panel, DC-18 GHz

Order No:AD-A2A25B-PF/9X-9X
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
4 Hole Flange
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

SMA Jack (Female) to SMA Jack (Female) 4 Hole Panel Adapter, DC-18 GHz, VSWR ≤ 1.15, 50 Ohm Impedance.

ROSNOL AD-A2A25B-PF/9X-9X is a 50 Ω SMA Jack (Female) to SMA Jack (Female) RF adapter with a 4-hole flange mount configuration. Designed for broadband RF and microwave applications, it operates from DC to 18 GHz with VSWR ≤ 1.15, insertion loss ≤ 0.05 × √F (GHz) dB, and RF leakage ≥ 100 dB up to 1 GHz, ensuring stable signal transmission and excellent impedance matching.

The adapter incorporates beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to provide low contact resistance and reliable conductivity. The stainless steel connector bodies feature passivated surface treatment for enhanced corrosion resistance and mechanical durability, while PTFE insulators maintain stable dielectric characteristics. The design supports up to 200 W power handling at 2 GHz and operating temperatures from -65°C to +155°C.

This adapter is suitable for RF test instrumentation, wireless communication systems, microwave assemblies, and antenna integration. Its low VSWR, screw-lock coupling mechanism, and robust flange-mount structure help maintain signal integrity, connection stability, and long-term reliability in demanding RF environments.
