SMA Female 4 Hole Panel Adapter, DC-18 GHz

Order No:AD-A2A25B-PF/9Q-9Q
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
4 Hole Flange
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
VSWR, Max:
1.15

Description

SMA Female to SMA Female 4 Hole Panel Adapter, DC- 18 GHz, VSWR ≤ 1.15, 50 Ohm Impedance.

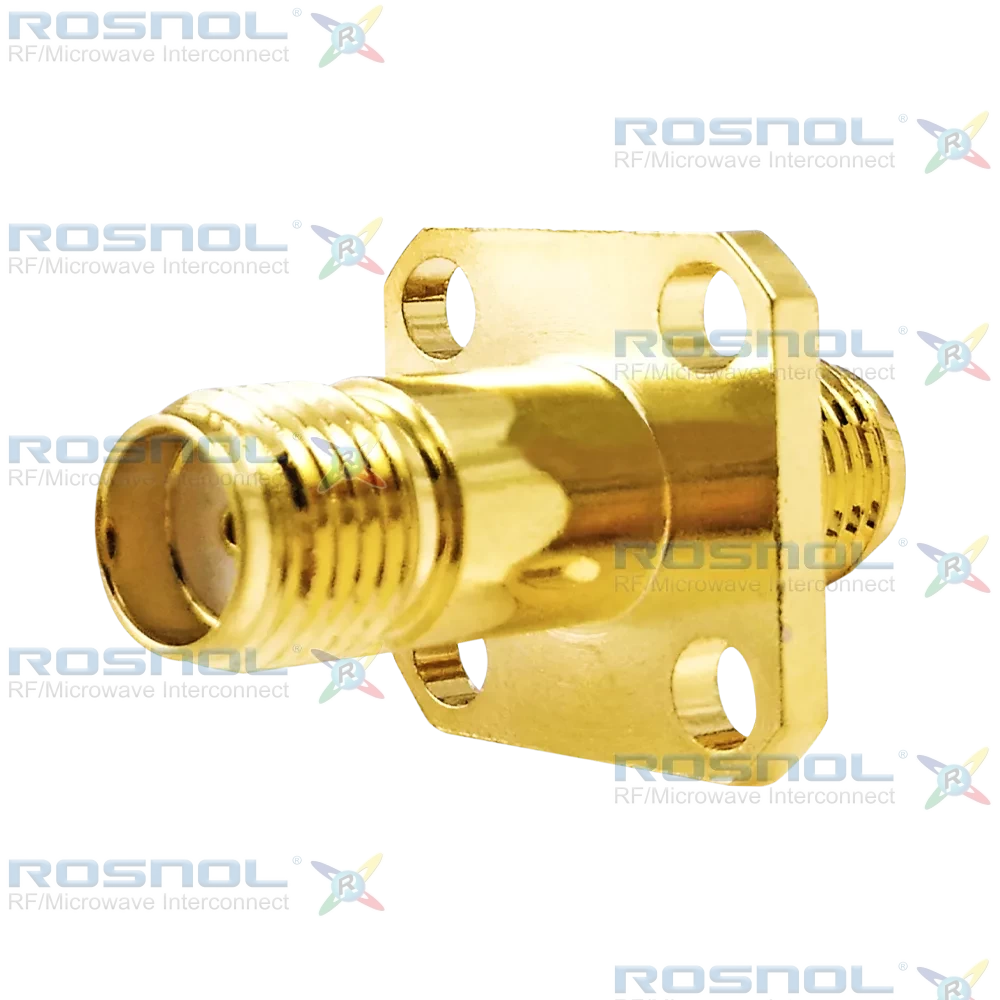

ROSNOL AD-A2A25B-PF/9Q-9Q is a high-performance 50 Ω SMA Jack (Female) to SMA Jack (Female) RF adapter designed with a 4-hole flange mount interface. Supporting frequencies from DC to 18 GHz, it delivers VSWR ≤ 1.15, insertion loss ≤ 0.05 × √F (GHz) dB, and RF leakage ≥ 100 dB up to 1 GHz, providing reliable performance for precision RF and microwave systems.

The adapter features beryllium copper center contacts and stainless steel bodies, both finished with gold plating over non-magnetic nickel-phosphorus underplating to enhance conductivity, wear resistance, and corrosion protection. PTFE dielectric insulation ensures stable electrical characteristics, while the precision mechanical structure supports over 500 mating cycles and dependable long-term operation.

Ideal for laboratory measurement equipment, telecommunications infrastructure, RF modules, and antenna systems, this adapter offers low reflection, secure screw-lock coupling, and consistent electrical performance. The flange-mounted construction enables reliable installation where mechanical strength and signal integrity are critical requirements.
