Key Specifications
Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
N
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
N
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
4 Hole Flange
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
11
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15
Description

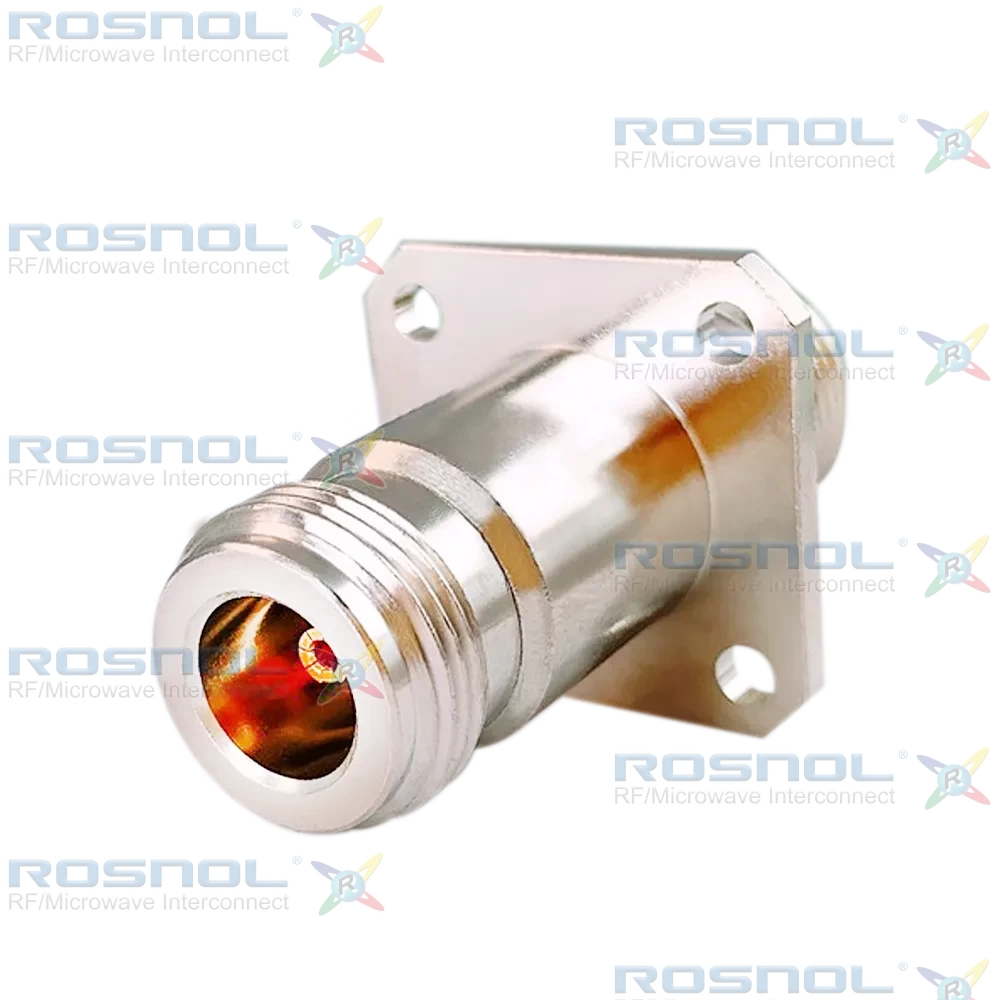

N Jack (Female) to N Jack (Female) | 4-Hole Flange Panel Mount | Screw-Lock | Stainless Steel Body
The ROSNOL AD-N2N25A-PF/HX-HX is engineered for RF applications from DC to 11 GHz with a 50 Ω impedance. It achieves VSWR ≤ 1.15 and insertion loss ≤ 0.04√F (GHz) dB, ensuring minimal signal degradation. Rated for power handling up to 1000 W at 1 GHz and 700 W at 2 GHz, this adapter provides robust electrical performance. The screw-lock coupling mechanism ensures secure connectivity with ≥ 500 mating cycles and recommended torque of 0.7 to 1.1 Nm.Material construction includes phosphor bronze center contacts with gold plating over nickel-phosphorus underplating for superior conductivity. The body and coupling nut are stainless steel with passivated finish, complemented by PTFE insulators for excellent dielectric properties. This adapter withstands temperatures from -55°C to +155°C, offering durability and corrosion resistance.
ROSNOL’s RF solutions combine high quality with affordability, making them ideal replacements for major European and American brands. Produced under ISO 9001-certified processes and fully compliant with RoHS and REACH regulations, these connectors ensure global environmental standards. Customization options for plating, materials, and mechanical design are available to support unique application needs.
