Key Specifications
Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
BNC
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
Bulkhead
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Bayonet
Frequency, Max (GHz):
4.0
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
VSWR, Max:
1.20
Description

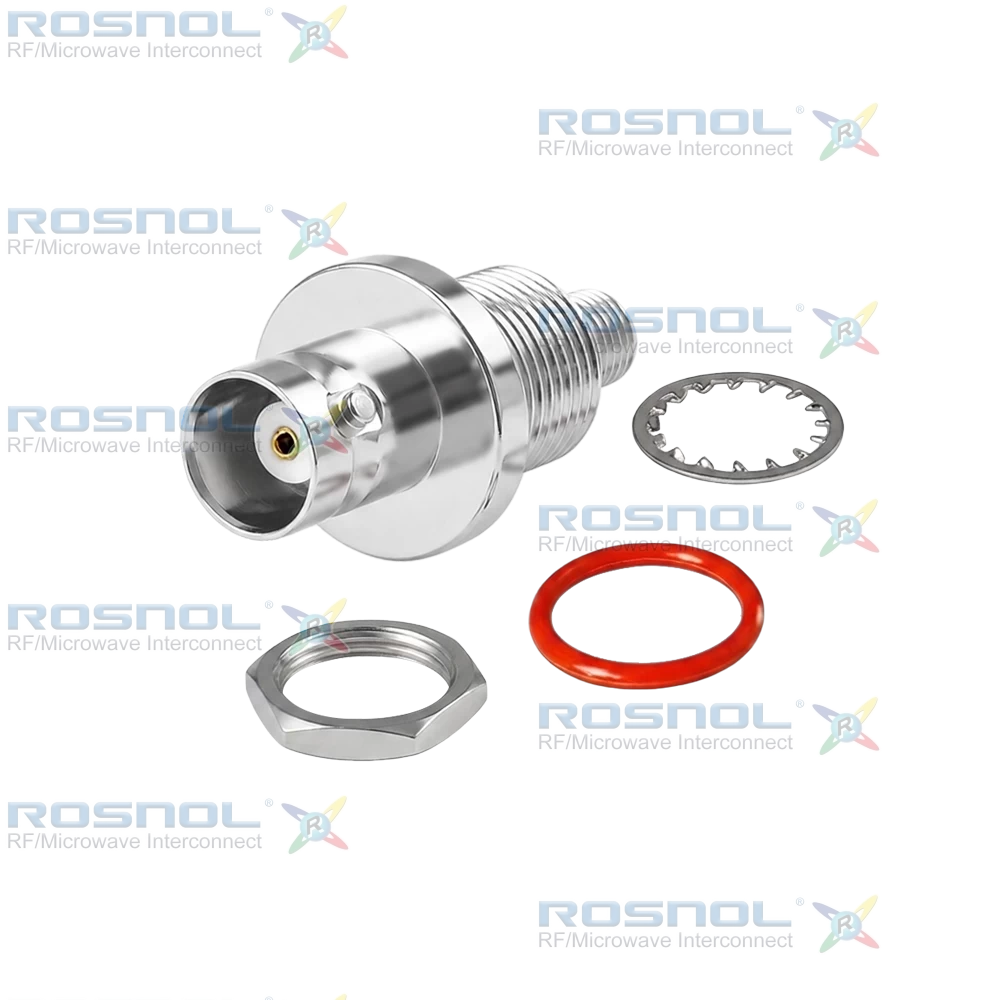

SMA Jack (Female) to BNC Jack (Female) Bulkhead RF Adapter | Screw-Lock & Bayonet-Lock | Brass Body
The ROSNOL AD-A2B25A-BH/93-93 bulkhead RF adapter offers secure connectivity between SMA jack (female) and BNC jack (female), operating from DC to 4 GHz with 50-ohm impedance. It achieves VSWR ≤ 1.20 (≥ 20.8 dB return loss), insertion loss ≤ 0.05 × √F (GHz) dB, and insulation resistance ≥ 5 GΩ. Power handling supports up to 80 W at 2 GHz, with test voltage of 1000 V rms and working voltage of 400 V rms. Mechanical integrity includes screw-lock coupling for SMA and bayonet-lock for BNC, axial captivation ≥ 27 N, and recommended torque of 0.8–1.1 Nm for SMA.Constructed for reliability, the adapter uses beryllium copper center contacts with gold plating over nickel-phosphorus underlayer, brass bodies with nickel finish, and PTFE insulators for superior dielectric properties. Silicone rubber gaskets and brass hardware ensure robust bulkhead mounting.
ROSNOL’s precision-engineered RF adapters deliver reliable performance across RF and microwave systems. Designed to meet stringent high-frequency requirements, ROSNOL adapters provide a cost-effective alternative to leading European and American brands. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and comply with RoHS and REACH standards. Customization for materials, plating, and mechanical design is available to meet specialized interconnect needs.
