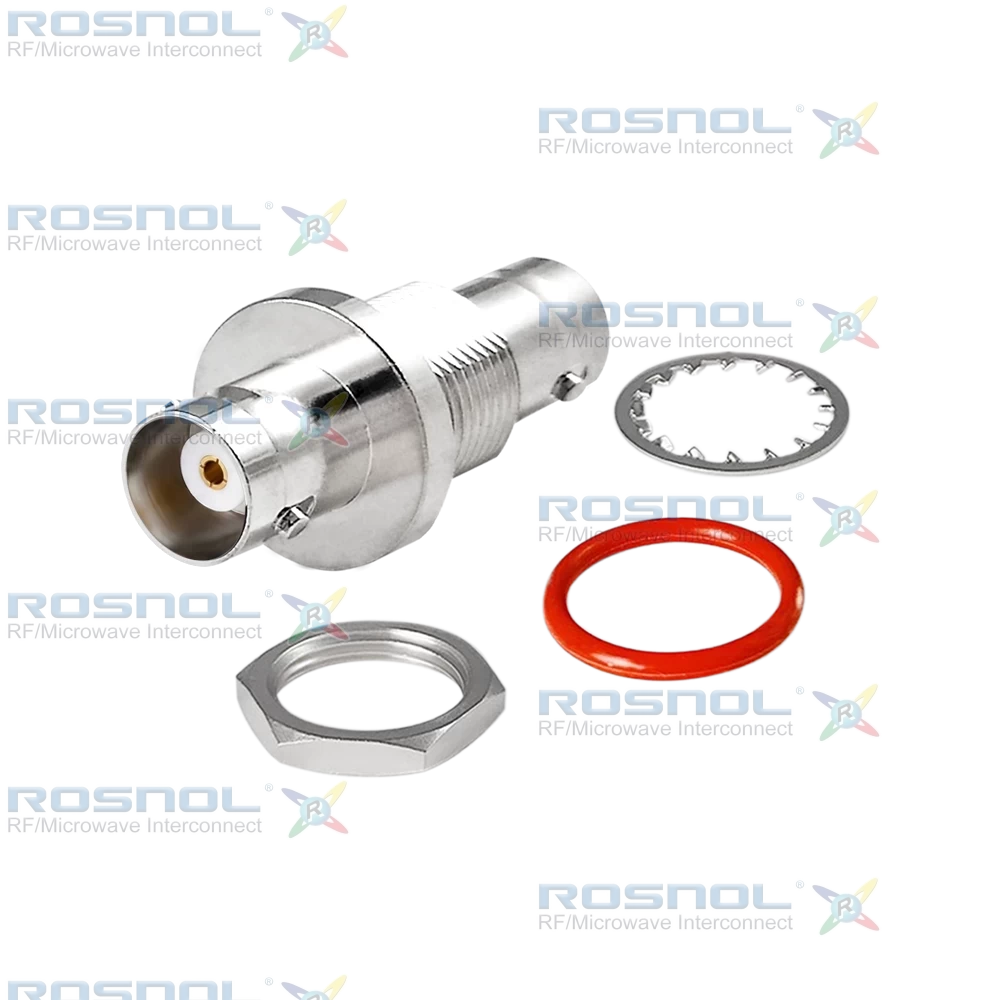

BNC Female Bulkhead Adapter, Sealed, DC-4 GHz

Order No:AD-B2B25A-BH/H4-H4
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
BNC
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
BNC
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
Bulkhead
Connector 1 Connection Method:
Bayonet
Connector 2 Connection Method:
Bayonet
Frequency, Max (GHz):
4.0
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
1.20

Description

BNC Female to BNC Female Bulkhead Adaptor, Hermetically Sealed, DC-4 GHz, VSWR ≤ 1.20, 50 Ohm Impedance.

he ROSNOL AD-B2B25A-BH/H4-H4 is a hermetically sealed BNC female to BNC female bulkhead adapter designed for reliable RF interconnections in panel-mounted systems. Featuring 50-ohm impedance, DC to 4 GHz frequency coverage, and a VSWR of 1.20, this RF adapter supports stable signal performance across communication, instrumentation, and testing environments.

The adapter incorporates brass bodies with copper-tin-zinc alloy plating, PTFE insulators, and phosphor bronze center contacts with gold plating and non-magnetic nickel-phosphorus underplating. Key electrical characteristics include insulation resistance of at least 5 GΩ, low contact resistance, 1500 Vrms test voltage, and power handling up to 80 W at 2 GHz under specified operating conditions.

Its hermetically sealed bulkhead structure provides dependable panel integration, while the bayonet-lock BNC interface enables efficient installation and maintenance. Designed for operation from -65°C to +165°C, the AD-B2B25A-BH/H4-H4 is well suited for RF communication equipment, laboratory instruments, industrial electronics, and other applications requiring secure and durable RF connectivity.
