Key Specifications
Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
BNC
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
BNC
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Connector 1 Connection Method:
Bayonet
Connector 2 Connection Method:
Bayonet
Frequency, Max (GHz):
3.0
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
1.20
Volt:
2K
Description
BNC to BNC DC Block | Bayonet-lock | Brass Body

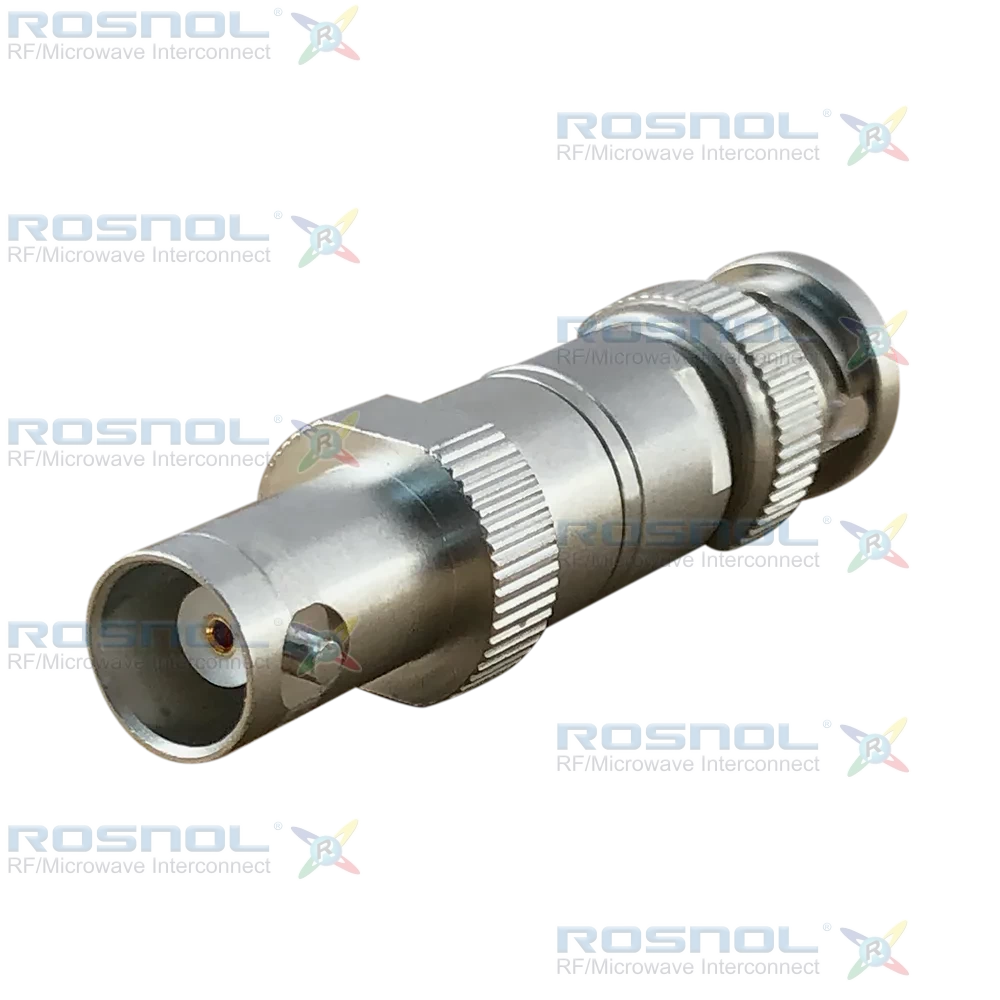

The ROSNOL DB-B1B25A-3G2KV/H44-H4 is a high-voltage DC Block connector designed for BNC plug (male) to BNC jack (female) configurations. Operating up to 3 GHz, it maintains a 50 Ω impedance and supports an impressive DC voltage rating of 2000V. With a VSWR of ≤ 1.2 (≥ 20.8 dB) and insertion loss ≤ 0.2 dB, this connector ensures excellent RF performance and robust DC isolation. The bayonet-lock mechanism allows for fast and secure connections in demanding environments.Materials include phosphor bronze center contacts with gold plating over nickel underplating, a brass body and coupling nut with copper-tin-zinc alloy finish, PTFE insulators, and a silicone rubber gasket. The connector is RoHS compliant and functions reliably within a temperature range of -55°C to +90°C.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL RF components are precision-manufactured in ISO 9001-certified facilities, and are fully RoHS and REACH compliant, ensuring environmental safety and global regulatory alignment. Customization services for plating, materials, and mechanical design are available upon request.
