45 degree Adapter N Plug (Male) to N Jack (Female), DC-6GHz VSWR1.20

N Plug (Male) to N Jack (Female) Adapter | Screw-lock | Brass Body

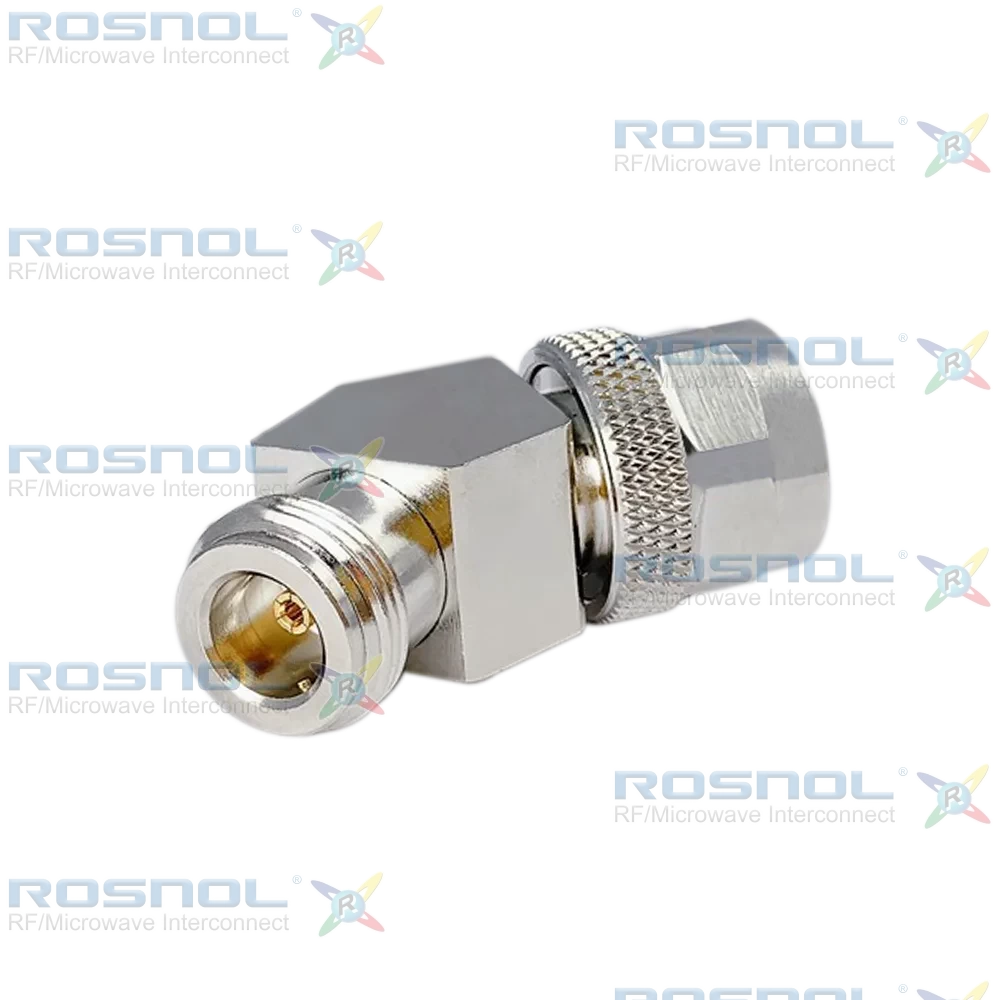

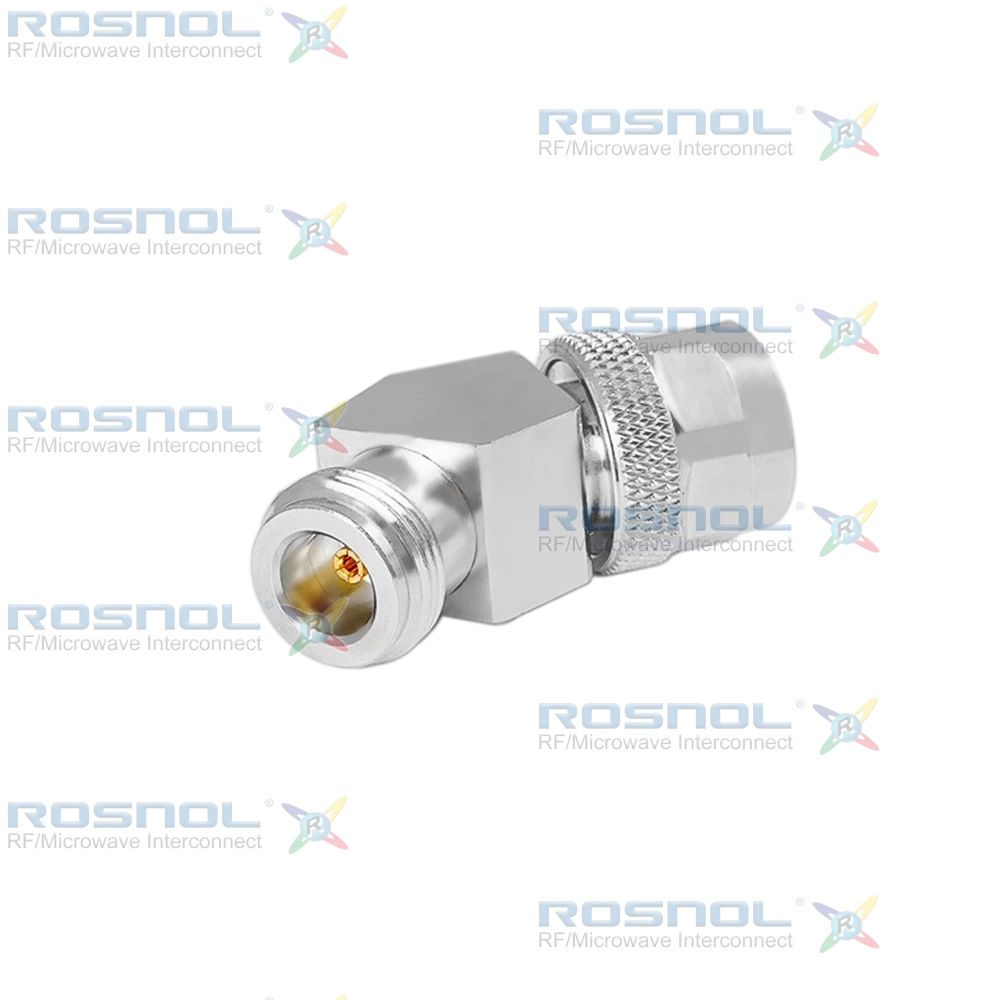

The ROSNOL ASL45-N1N25A/H44-H4 is a 45-degree angled N-type adapter designed for RF systems operating up to 6 GHz. It supports 50 Ω impedance with a VSWR ≤ 1.20 (≥ 20.83 dB return loss) and RF leakage ≥ 128 dB up to 1 GHz. Insertion loss is rated at ≤ 0.1 × √F (GHz) dB. The adapter handles up to 1000 W at 1 GHz and 700 W at 2 GHz under VSWR 1.0 conditions. It features insulation resistance ≥ 5,000 MΩ, center contact resistance ≤ 1 mΩ, and outer contact resistance ≤ 0.25 mΩ. Mechanical specifications include screw-lock coupling, ≥ 500 mating cycles, coupling nut retention ≥ 450 N, axial captivation ≥ 28 N, and recommended torque between 0.7–1.1 Nm.

The center contacts are made of phosphor bronze with 3 µinch gold plating over 80 µinch non-magnetic nickel-phosphorus underplating. The body and coupling nut are brass with copper-tin-zinc alloy finish, while the insulator is PTFE and the gasket is silicone rubber. All materials are selected to ensure long-term durability and stable electrical performance.

ROSNOL’s precision-engineered RF adapters deliver reliable performance across a wide range of RF and microwave systems. Designed to meet the stringent demands of high-frequency signal transmission, ROSNOL adapters offer a cost-effective alternative to products from leading European and American brands. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring global environmental and safety standards. Customization services for materials, plating, and mechanical design are available to support specialized interconnect requirements.
