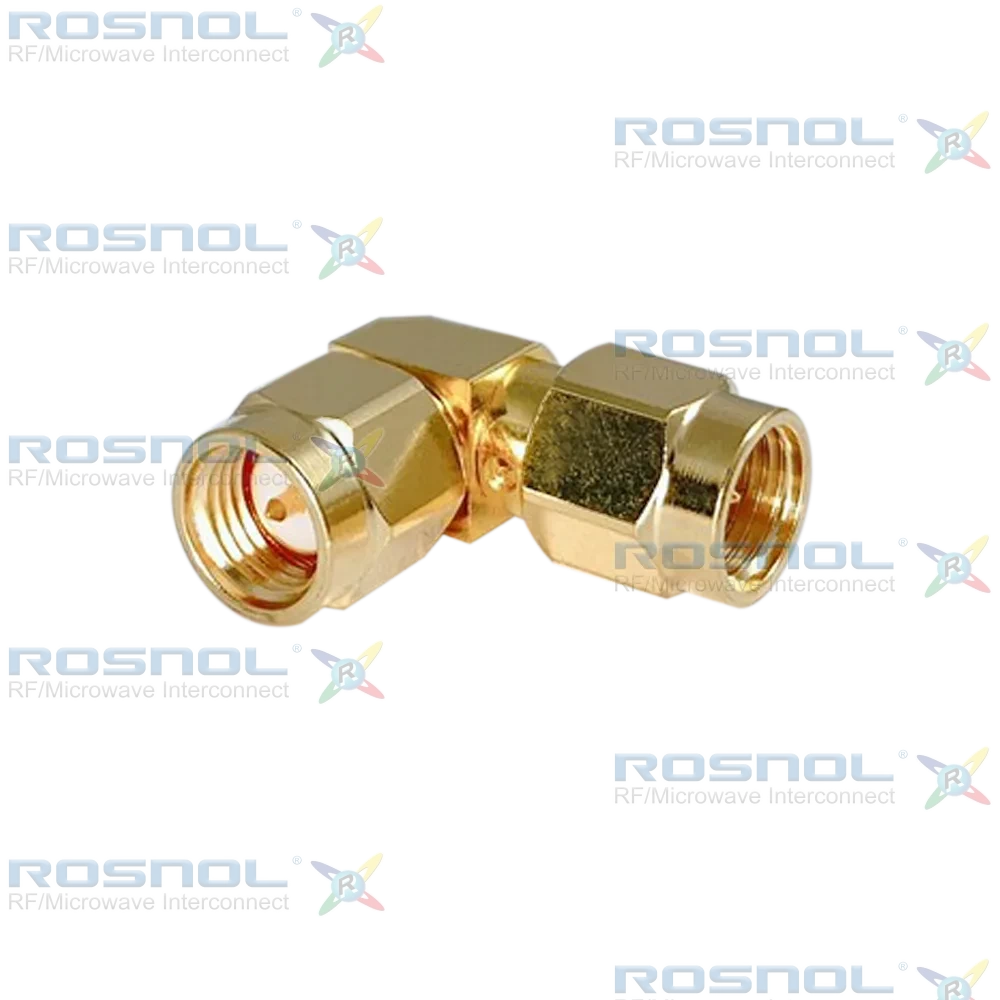

SMA Male Miter Right Angle Adapter, 18 GHz

Order No:ASL-A1A15A/911-911
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
SMA
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
SMA
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Mitered Right Angle
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
VSWR, Max:
1.25

Description

ROSNOL SMA Male to SMA Male Right-Angle RF Adapter, 50Ω, DC-18 GHz, VSWR 1.25, gold-plated brass body.

ROSNOL ASL-A1A15A/911-911 is an SMA Plug (Male) to SMA Plug (Male) Miter Right-Angle RF Adapter designed for compact RF and microwave interconnection systems. Operating from DC to 18 GHz with 50 Ω impedance and VSWR ≤ 1.25, this adapter provides efficient signal routing where space constraints require a 90-degree interface transition while maintaining reliable RF performance.

The adapter features beryllium copper center contacts with gold plating over a non-magnetic nickel-phosphorus underplating. The body and coupling nuts are manufactured from brass with gold plating, while PTFE insulators and silicone rubber gaskets provide excellent dielectric stability and environmental sealing. Important RF characteristics include insertion loss ≤ 0.05 × √F (GHz) dB, insulation resistance ≥ 5 GΩ, working voltage 480 Vrms, test voltage 1000 Vrms, power handling up to 200 W at 2 GHz, and RF leakage ≥ 100 dB up to 1 GHz.

Its miter right-angle structure helps simplify equipment layout and cable management in densely packaged RF assemblies. With a screw-on SMA interface and durability exceeding 500 mating cycles, this adapter is suitable for RF communication equipment, microwave modules, instrumentation systems, wireless infrastructure, and test & measurement applications.
