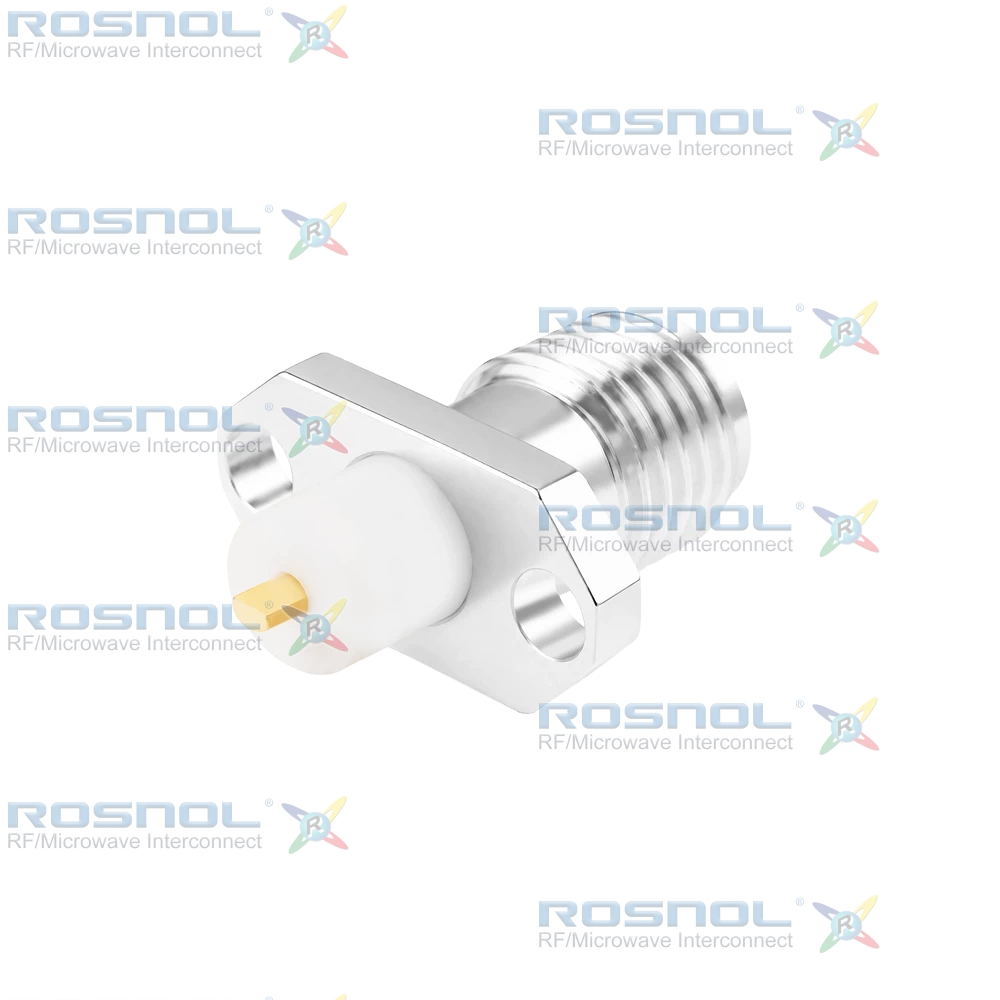

SMA Female Connector, 2 Hole Flange Mount, Semicircular Terminal, 9 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.
ROSNOL SMA2GTC50-1550C/9X is a high-performance SMA Jack (Female) connector engineered for RF and microwave systems requiring secure flange-mounted installation. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount configuration, and a semicircular-end terminal design with 9.0 mm (0.354 inch) hole spacing. Operating from DC to 18 GHz, it delivers a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB. Additional electrical specifications include insulation resistance of ≥ 5 GΩ, center contact resistance of ≤ 3 mΩ, and power handling of up to 200 W at 2 GHz and 100 W at 10 GHz.
The connector incorporates a beryllium copper center contact with gold plating over non-magnetic nickel-phosphorus underplating for reliable conductivity and mating durability. The body is manufactured from stainless steel with a passivated finish to enhance corrosion resistance, while the PTFE insulator provides stable dielectric performance. Mechanical features include a screw-lock coupling mechanism, soldered center contact, semicircular terminal structure, mechanical center contact captivation, and a minimum mating life of 500 cycles. The operating temperature range extends from -65°C to +165°C.
This SMA Jack (Female) connector is suitable for RF communication equipment, microwave modules, wireless infrastructure, antenna systems, test and measurement instruments, and high-frequency signal distribution applications. The compact 9.0 mm (0.354 inch) mounting pattern and stainless-steel construction make it a dependable RF interconnect solution for demanding environments.
