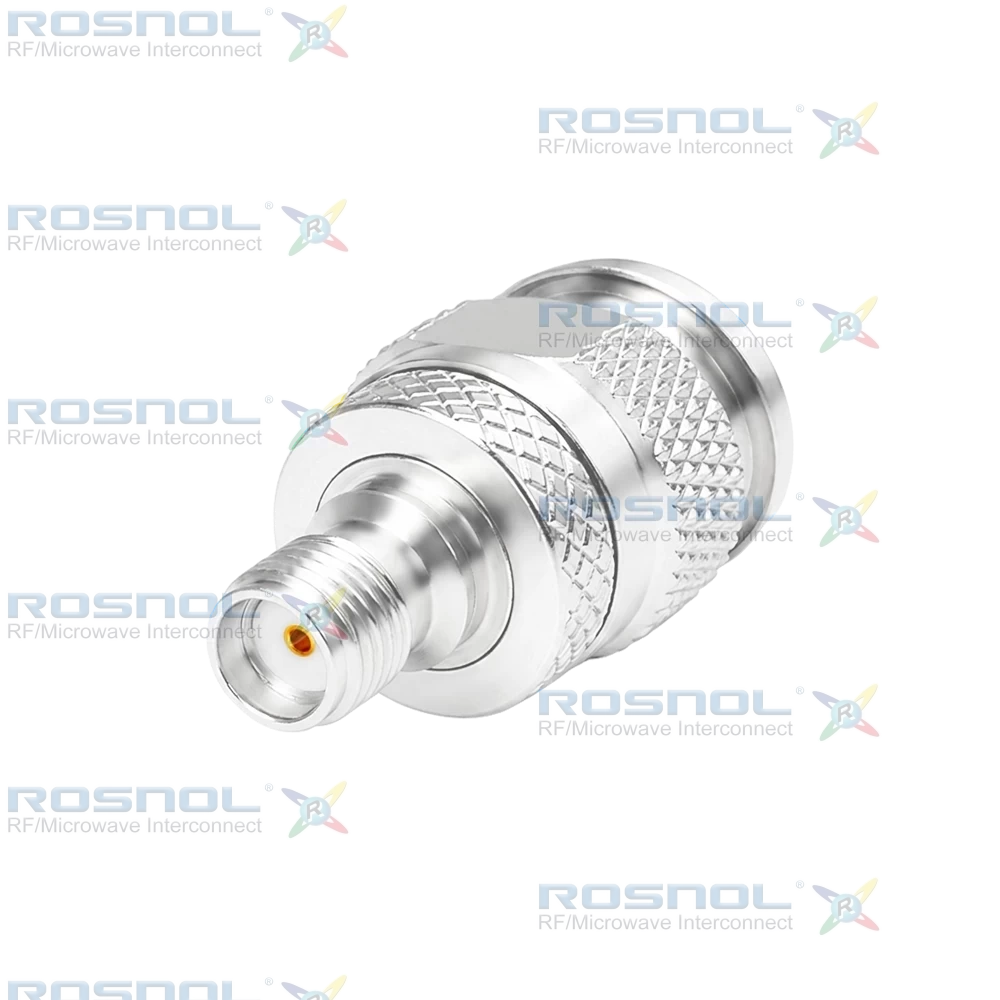

Precision TNC Male to SMA Female Adapter, 18 GHz

Order No:AD-PCT1A25B/133-93
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
Precision TNC
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
VSWR, Max:
1.20

Description

Precision TNC Male to SMA Female Straight Adapter, DC- 18 GHz, VSWR ≤ 1.2, 50 Ω Impedance.

ROSNOL AD-PCT1A25B/133-93 is a straight RF adapter that connects a Precision TNC Plug (Male) to an SMA Jack (Female). Designed for 50 Ω systems, it supports frequencies from DC to 18 GHz with VSWR ≤ 1.20, low insertion loss, and RF leakage exceeding 90 dB up to 1 GHz, making it suitable for high-frequency signal transmission and testing environments.

The adapter incorporates gold-plated center contacts with non-magnetic nickel-phosphorus underplating to maintain excellent electrical performance and durability. Both connector bodies and coupling components are manufactured from nickel-plated brass, while PTFE insulators provide stable dielectric characteristics. Additional electrical specifications include insulation resistance ≥ 5 GΩ, test voltage of 1000 Vrms, and working voltage of 480 Vrms.

Its robust construction, secure screw-on coupling, and low reflection characteristics make this adapter suitable for RF instrumentation, wireless infrastructure, microwave assemblies, antenna systems, and communication equipment where reliable impedance matching and signal integrity are required.
