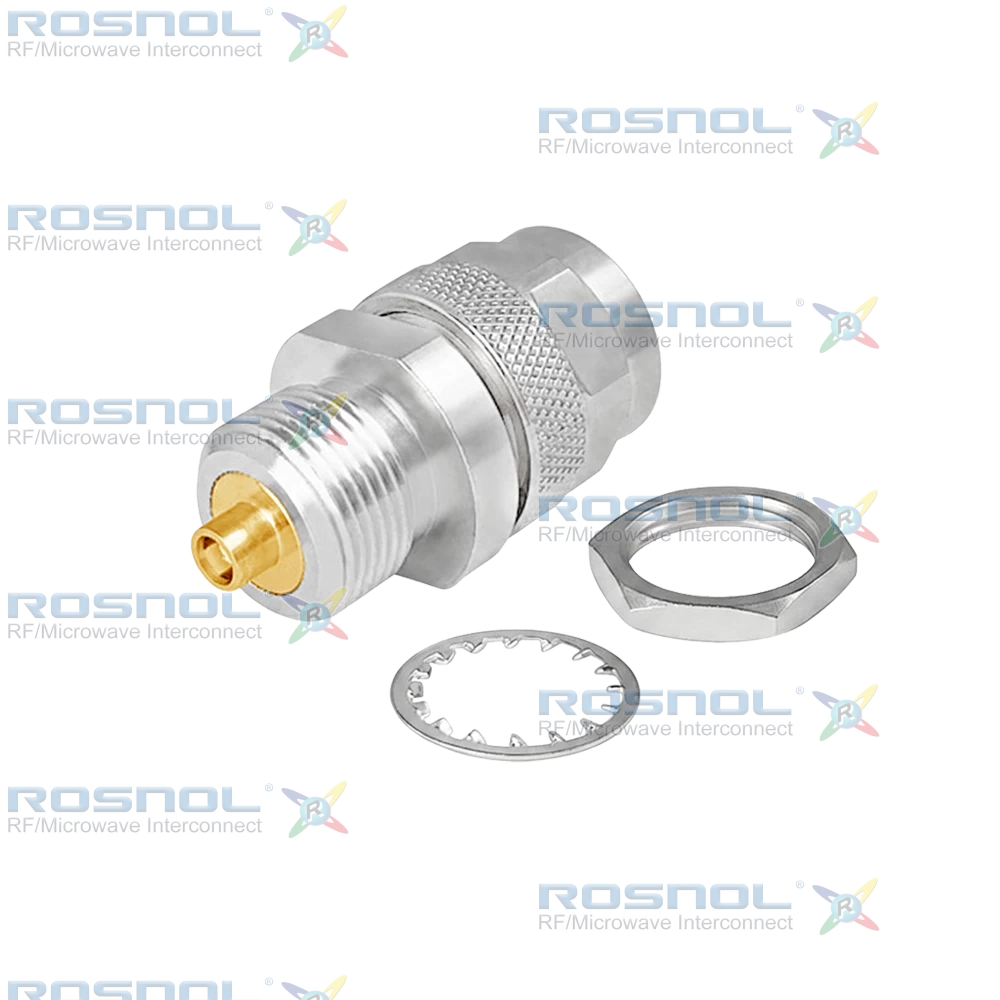

N Plug (Male) to MCX Jack (Female) Bulkhead Adapter | Screw-Lock to Snap-Lock | Brass Body
The ROSNOL AD-N1M25A-BH/944-91 is a precision RF Bulkhead Adapter designed to interconnect N Plug (Male) and MCX Jack (Female) interfaces in 50 Ω systems. Operating from DC to 6 GHz, this adapter delivers excellent signal integrity with VSWR ≤ 1.20 (Return Loss ≥ 20.8 dB) and insertion loss ≤ 0.05 × √F (GHz) dB. The bulkhead mounting design provides secure panel installation, while the N connector side features a screw-lock coupling mechanism and the MCX side utilizes a snap-lock interface. Mechanical durability is ensured with a minimum of 500 mating cycles and reliable contact performance for demanding RF and microwave applications.
The center contacts are manufactured from beryllium copper with gold plating over non-magnetic nickel-phosphorus underplating, providing excellent conductivity and corrosion resistance. The brass bodies feature gold plating on the MCX side and copper-tin-zinc alloy plating on the N side. PTFE insulators ensure stable dielectric properties across the operating frequency range, while silicone rubber gaskets enhance mechanical reliability.
ROSNOL’s precision-engineered RF adapters deliver reliable performance across a wide range of RF and microwave systems. Designed to meet the stringent demands of high-frequency signal transmission, ROSNOL adapters offer a cost-effective alternative to products from leading European and American brands. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring global environmental and safety standards. Customization services for materials, plating, and mechanical design are available to support specialized interconnect requirements.
