TNC Male to SMA Female Straight Adapter, DC-11 GHz, VSWR ≤ 1.25, 50 Ω Impedance.

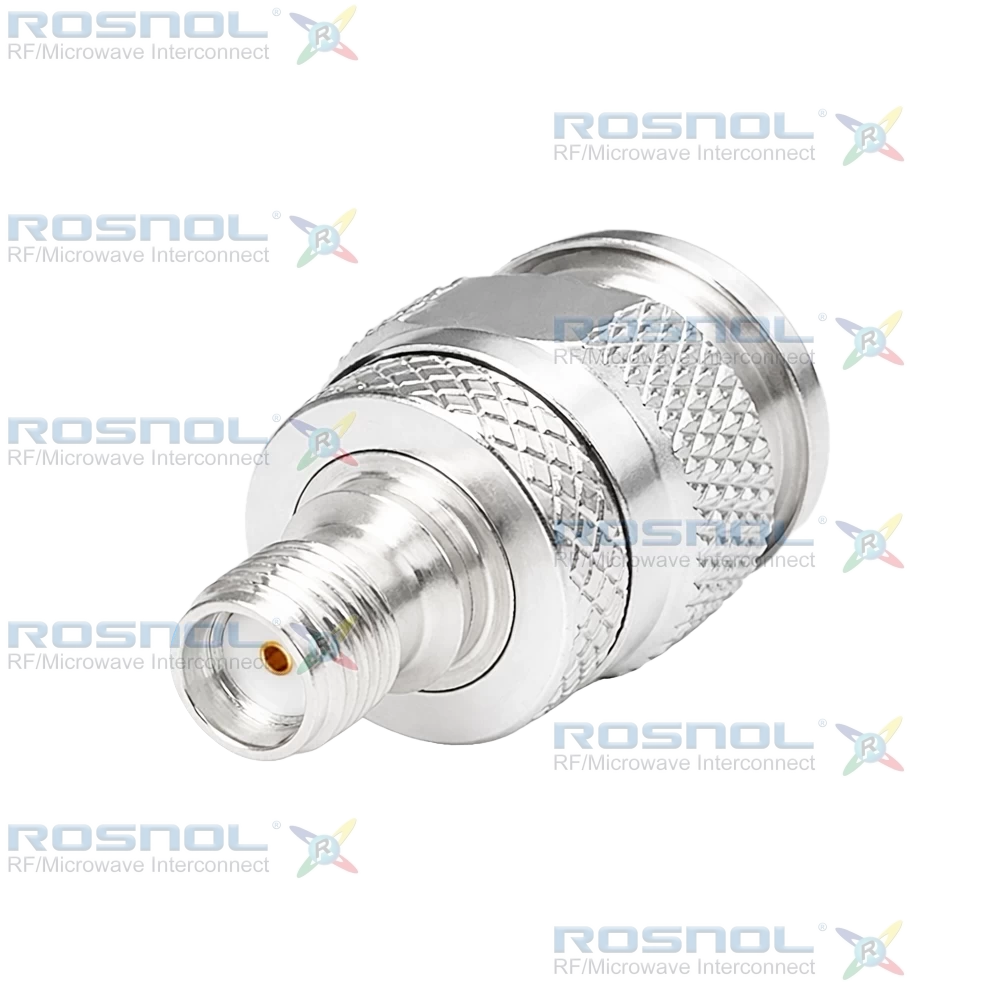

ROSNOL AD-T1A25A/144-94 is a precision 50 Ω RF adapter featuring a TNC Plug (Male) to SMA Jack (Female) configuration. Designed for broadband RF and microwave applications, it operates from DC to 11 GHz with VSWR ≤ 1.25 and low insertion loss, ensuring excellent signal integrity and impedance matching. The threaded coupling design on both interfaces provides secure and stable interconnection in communication and test systems.
The adapter incorporates a brass TNC center contact, beryllium copper SMA center contact, brass bodies, PTFE dielectric insulators, and a silicone rubber gasket. Both center contacts are gold plated over non-magnetic nickel-phosphorus underplating, while the connector bodies and coupling nut feature copper-tin-zinc alloy plating for enhanced conductivity, corrosion resistance, and mechanical durability. Key electrical specifications include insulation resistance ≥ 5 GΩ, working voltage 480 Vrms, and power handling up to 80 W at 2 GHz.
With a minimum mating life of 500 cycles and an operating temperature range from -65°C to +165°C, the AD-T1A25A/144-94 is suitable for RF instrumentation, antenna systems, wireless communications, microwave assemblies, and precision test equipment requiring dependable TNC-to-SMA connectivity.
