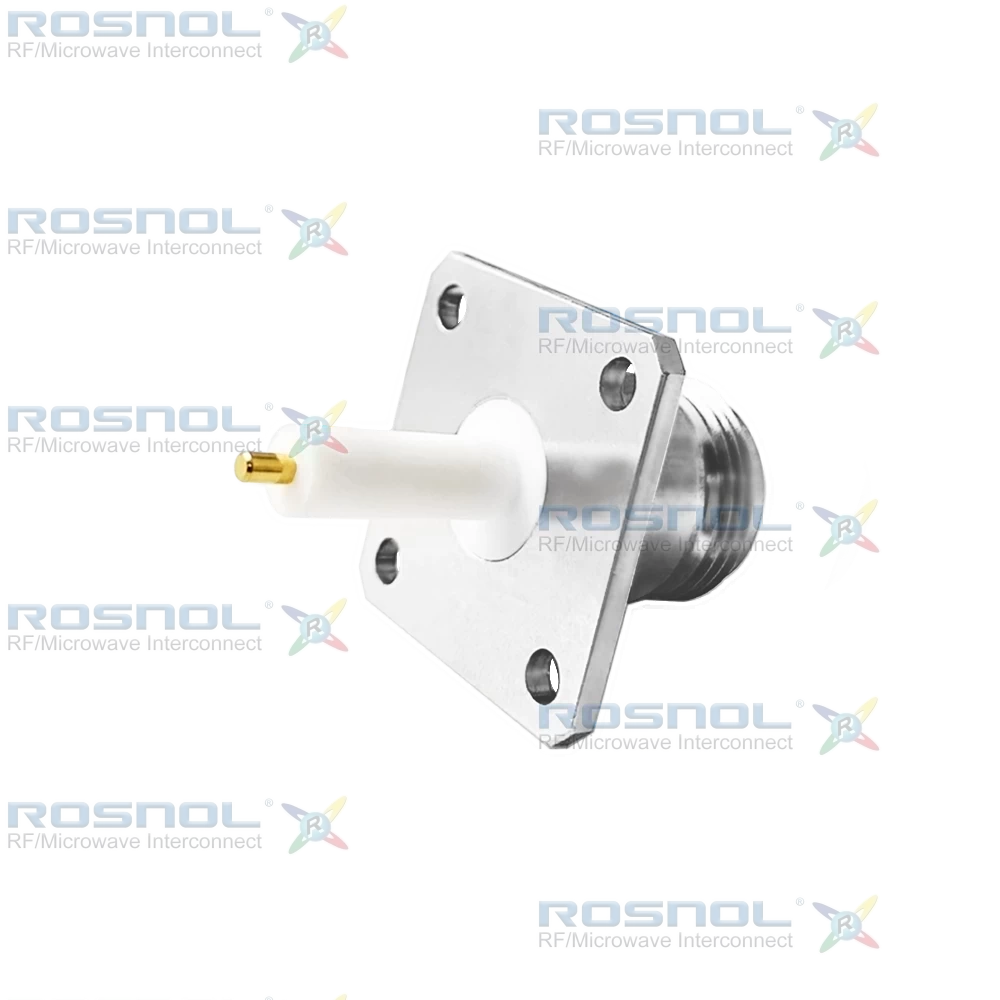

Precision N Female Connector, 4 Hole Flange, 18 GHz

Order No:PCN2GFA50-3660B/9X
Add Cart

Key Specifications

Type Design:
Precision
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.25
Connector Series:
Precision N
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

Precision N Female Connector, 4 Hole Flange Mount, Coaxial End, 18.25 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.25.

The ROSNOL PCN2GFA50-3660B/9X is a high-performance precision N Jack (female) connector engineered for reliable microwave and RF signal transmission. Featuring a 4 hole flange mount design with an 18.25 mm (0.719 inch) hole spacing and a soldered pin terminal, this precision component operates efficiently from DC to 18 GHz. It maintains a characteristic impedance of 50 ohms, ensuring excellent signal integrity with a low VSWR of 1.25 and minimal insertion loss across broadband communication systems.

Constructed with a durable stainless steel body and a beryllium copper center contact, the connector features high-quality gold plating with a non-magnetic nickel-phosphorus underplate for superior conductivity. A robust PTFE insulator maintains electrical stability, while the screw-lock coupling mechanism supports over 500 mating cycles. Designed for demanding environments, it operates reliably within a wide temperature range of -65°C to +165°C, backed by secure mechanical center contact captivation.

This precision flange mount precision N Jack (female) is ideal for integration into microwave test equipment, phased array radar systems, satellite communication payloads, and high-frequency wireless infrastructure. It delivers exceptional mechanical robustness and electrical reliability for demanding aerospace, defense, and telecommunication applications.
