Key Specifications
Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
BNC
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
BNC
Connector 2 Gender:
Jack (Female)
Connector 3 Series (T-Adapter):
BNC
Connector 3 Gender (T-Adapter):
Jack (Female)
Impedance (Ohm):
50
Body Style:
T-Adapter
Panel Mount:
None
Connector 1 Connection Method:
Bayonet
Connector 2 Connection Method:
Bayonet
Connector 3 Connection Method:
Bayonet
Frequency, Max (GHz):
10
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
Connector 3 Body Material:
Brass
Connector 3 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
N/A
Description
BNC Jack (Female) to BNC Jack (Female) T-Adapter | Bayonet-lock | Brass Body

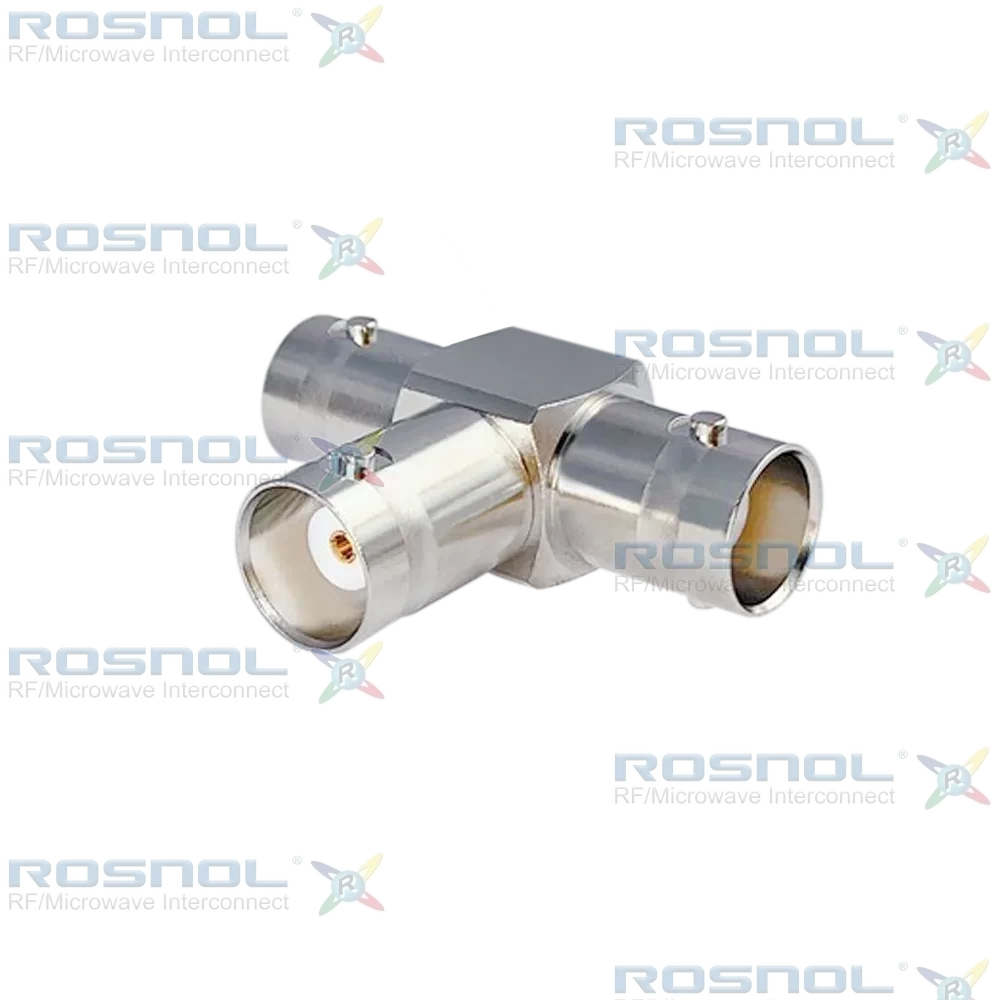

The ROSNOL ADT-B2B2B25A/H4-H4-H4 is a precision BNC T-adapter that features three female BNC jacks for dependable RF signal distribution from DC to 10 GHz. It maintains a 50 Ω impedance, insulation resistance ≤5 GΩ, and power handling up to 80 W at 2 GHz. The bayonet-lock coupling mechanism ensures secure engagement and supports ≥500 mating cycles for consistent performance.Each contact is crafted from phosphor bronze with 3 μinch gold plating over an 80 μinch nickel-phosphorus underlayer for optimal conductivity and corrosion resistance. The body is brass with a copper-tin-zinc alloy finish, complemented by PTFE insulators for excellent electrical insulation.
ROSNOL’s precision-engineered RF adapters deliver reliable performance across a wide range of RF and microwave systems. Designed to meet the stringent demands of high-frequency signal transmission, ROSNOL adapters offer a cost-effective alternative to products from leading European and American brands. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring global environmental and safety standards. Customization services for materials, plating, and mechanical design are available to support specialized interconnect requirements.
