Precision TNC Male to Precision TNC Female Straight Adapter, DC-18 GHz, VSWR ≤ 1.35, 50 Ω Impedance.

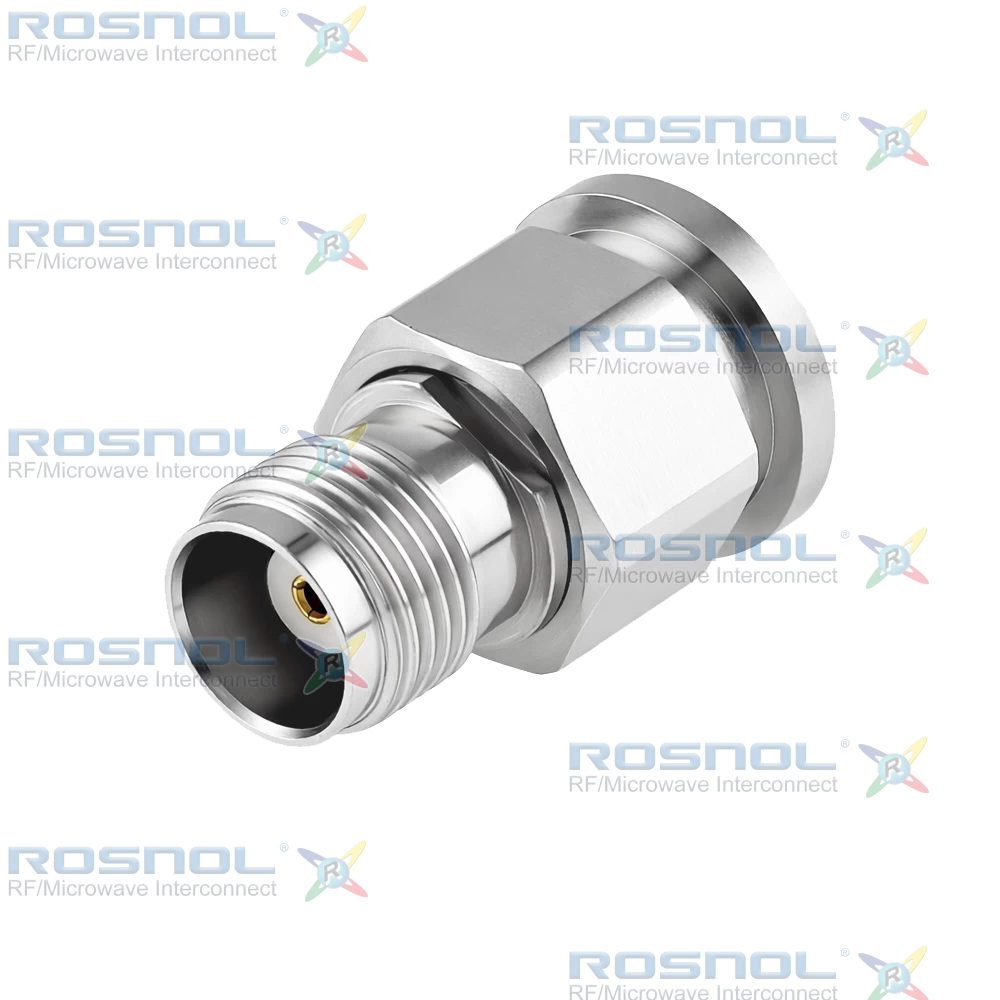

ROSNOL AD-PCT1PCT25B/9XX-9X is a Precision TNC Plug (Male) to Precision TNC Jack (Female) RF adapter engineered for 50 Ω applications from DC to 18 GHz. The adapter offers VSWR ≤ 1.35, low insertion loss, and excellent shielding effectiveness, supporting reliable signal transmission in demanding RF and microwave environments.
The center contact is manufactured from beryllium copper with 3 μinch gold plating over 80 μinch non-magnetic nickel-phosphorus underplating. Its body and coupling nut are made from passivated stainless steel, while PTFE insulators and silicone rubber gaskets provide long-term electrical and environmental stability. Electrical performance includes insulation resistance ≥ 5 GΩ, center contact resistance ≤ 1.5 mΩ, outer contact resistance ≤ 0.2 mΩ, and dielectric withstanding voltage up to 1500 Vrms.
A screw-lock coupling design with a minimum of 500 mating cycles ensures robust mechanical performance. Typical applications include RF instrumentation, microwave subsystems, antenna testing, communication equipment, and high-frequency interconnect networks.
