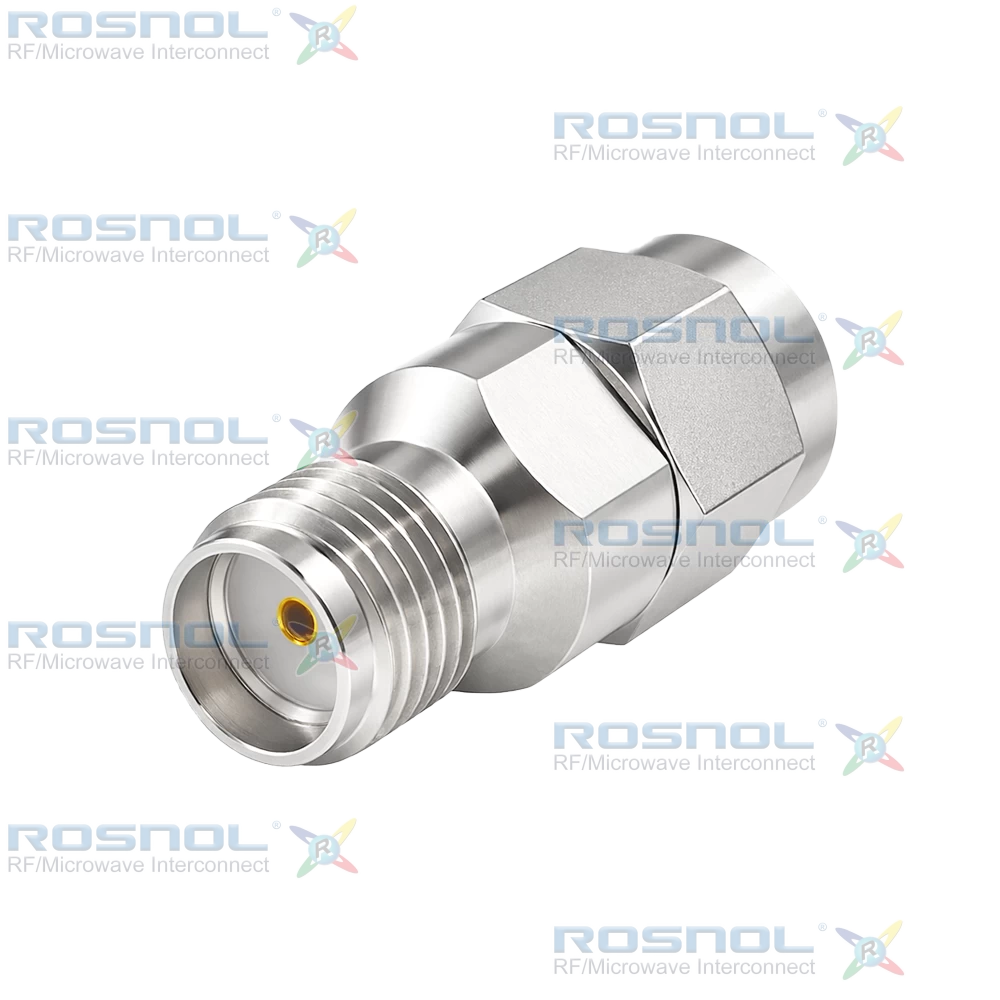

SMA RP Male to Female Adapter, DC-18 GHz

Order No:AD-A5A25A/9XX-9X
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
SMA
Connector 1 Gender:
R/P Plug (Male)
Connector 2 Series:
SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.20

Description

SMA Reverse Polarity Male to SMA Female Straight Adapter, 50 Ohm Impedance, DC-18 GHz, VSWR ≤ 1.2.

ROSNOL AD-A5A25A/9XX-9X is a Male-to-Female straight RF adapter configured with a SMA Reverse Polarity Plug (RP Male) interface and a SMA Jack (Female) interface. Designed for 50 Ω RF transmission systems, it operates from DC to 18 GHz with VSWR ≤ 1.20, making it suitable for wireless networking, RF communication, and microwave interconnection applications.

The adapter features beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating, combined with a passivated stainless steel body for enhanced durability and corrosion resistance. PTFE insulation and a silicone rubber gasket support reliable performance, while electrical characteristics include insertion loss ≤ 0.05 × √F dB, working voltage 480 Vrms, test voltage 1000 Vrms, and insulation resistance ≥ 5 GΩ.

Its compact design, threaded coupling structure, and excellent shielding performance provide dependable RF connectivity in demanding environments. Typical applications include Wi-Fi equipment, antennas, RF test systems, wireless infrastructure, and reverse polarity SMA interface conversion.
